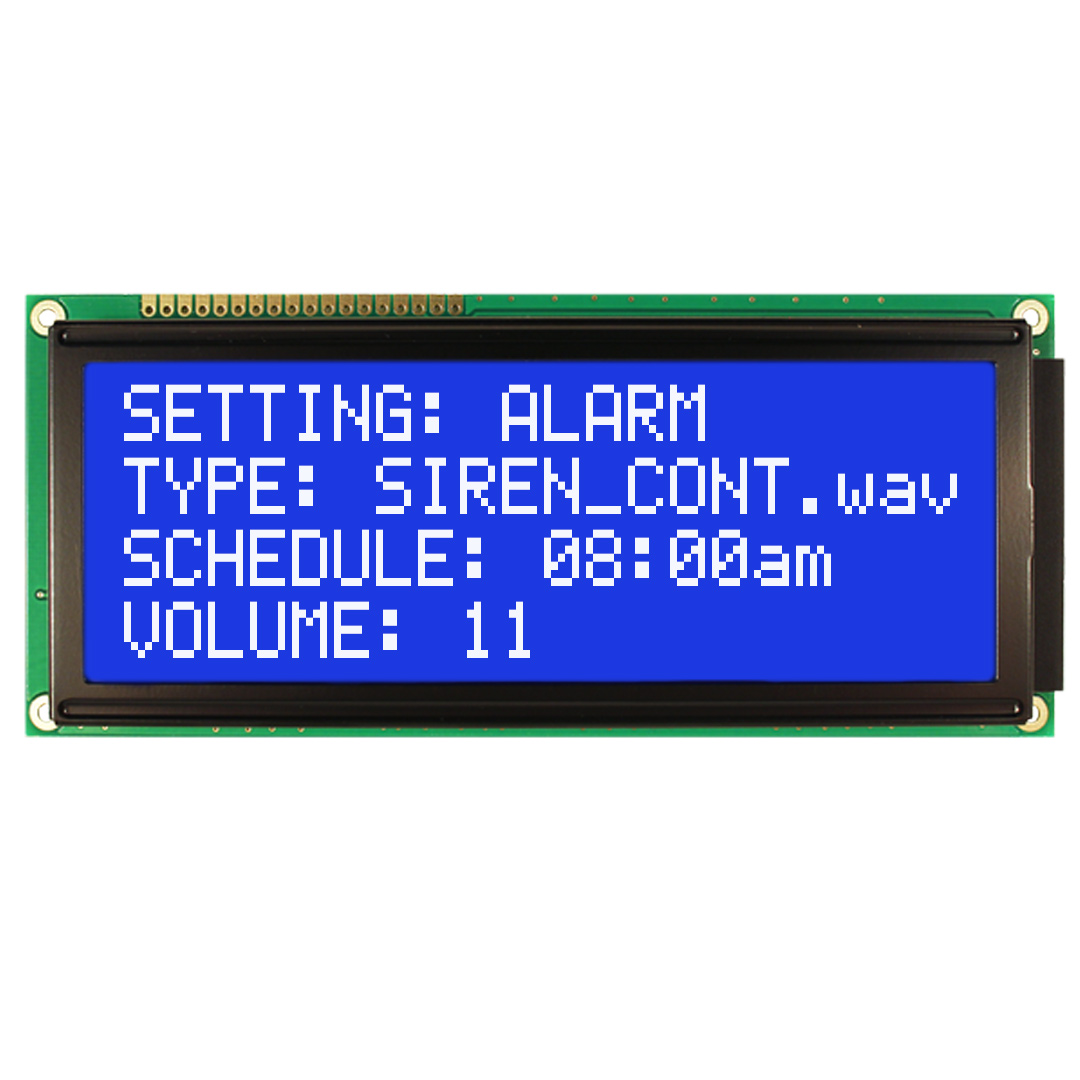

NHD-0420E2Z-NSW-BBW

Newhaven | LCD Character | 4x20 Character LCD
green-check-icon Total Stock: 2
yellow-timer-icon Factory Lead Time: 105
onlycheckmark RoHs Compliant
Newhaven LCD Character Display Display with Display Format 4 x 20 Characters with 9.22 x 4.84 Character size Using 8-Bit Parallel Interface Full Part Number: NHD-0420E2Z-NSW-BBW

$28.40

Min: 1  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

1500 reported as of 02/06/24 Allow 2 days for transfer

REACH Compliant

Yes

Operating Temp.

(-)20 ~ (+)70

Product Spec

Click Here

Product Photo

Click Here

NAFTA Compliant

No

Operating Temp

(-)20 ~ (+)70

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

Outline Dimension

146.0 x 62.5

PACKAGING TYPE

Bulk/Tray/Box

Voltage Supply

5 V

REACH Compliant?

Yes

Registerable

Yes

Step File Links

Click Here

Stock Status

Stocked

VIEW

6:00

LEAD(Pb) FREE

Yes

LEAD TIME (WEEKS)

14-16

Is Part STATIC Sensitive

Yes

CAGE CODE

7XUK2

Character Size CH x CW

9.22 x 4.84

Connector Type

1x16 Top

Controller

KS0066U

Data Links

Click Here

Display Format

4 x 20 Characters

Display Mode

Transmissive

Display Type

STN- BLUE

Back Light (LED)

WHITE

Is Part LEAD(Pb) FREE

Yes

Is Dry Pack Required?

No

Interface

8-Bit Parallel

Image Links

Click Here

STATIC Sensitive

Yes

Dry Pack Required

No

Status

Stocked

Step File Name

http://www.newhavendisplay.com/docs/STEPFiles/NHD-0420E2Z.zip

Display Screen Size.

4 x 20 Characters

Family.

Model E2Z

Polarizer.

Transmissive

Backlight.

White

Display Mode.

STN Blue

View Angle.

6:00 O'clock

Operating Temperature.

Wide -20C to +70C

Special (x)

None
