NHD-0420D3Z-NSW-BBW-V3

Newhaven | Serial Displays | 4x20 Character LCD
green-check-icon Total Stock: 1
yellow-timer-icon Factory Lead Time: 105
onlycheckmark RoHs Compliant

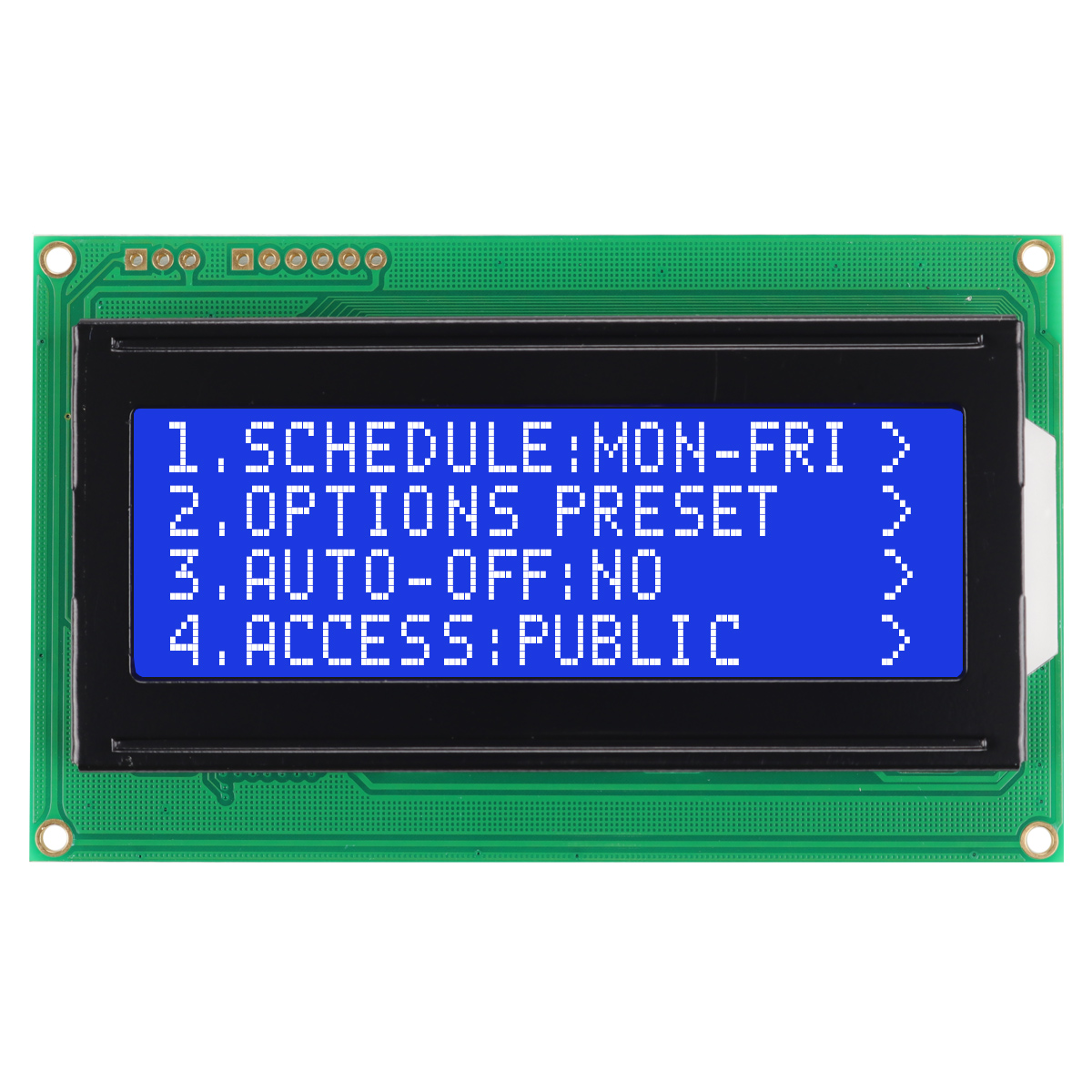

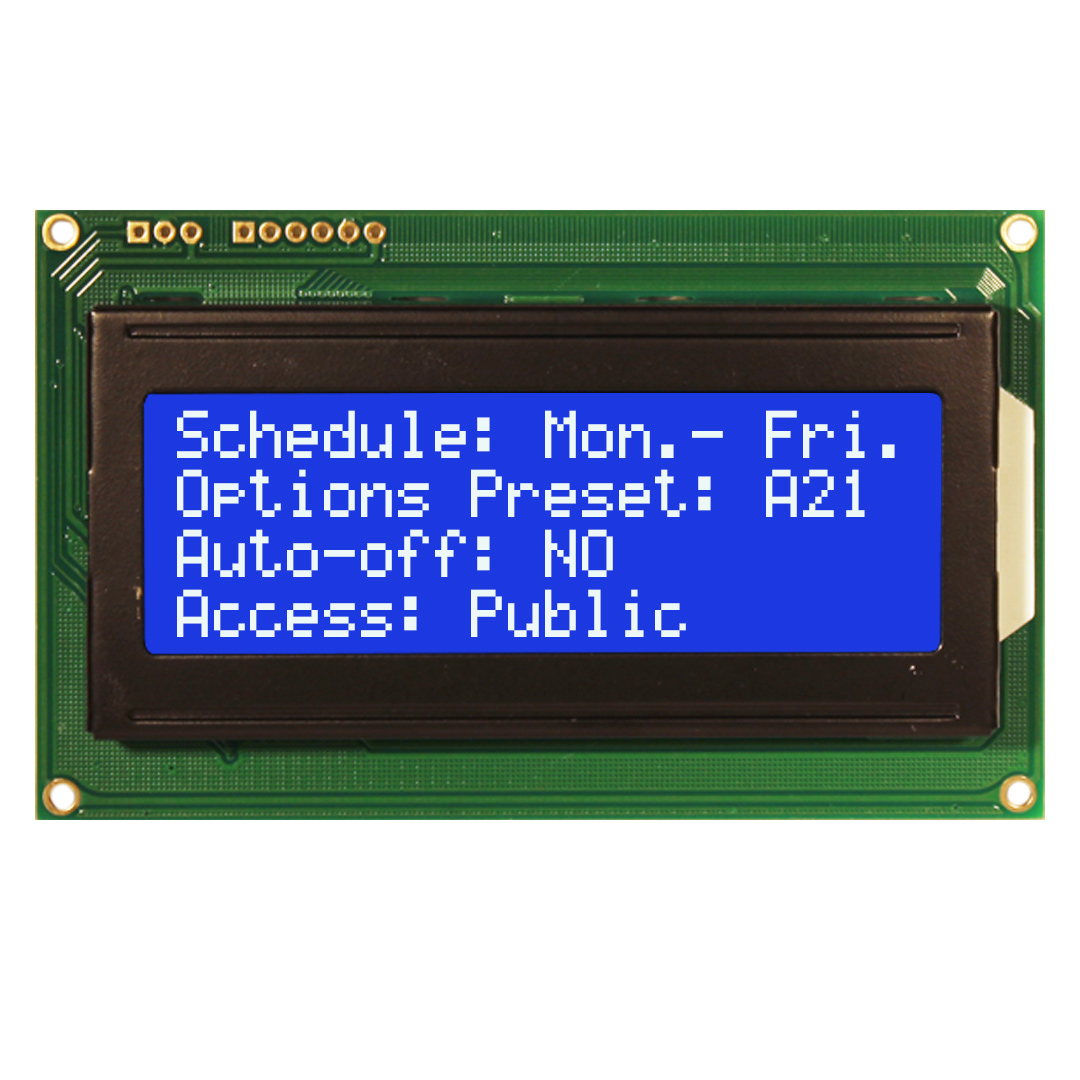

Newhaven 4 x 20 Characters Transmissive Serial LCD @ 5V and I2C; RS232; SPI Interface with TOP 3; 6; 5 Pins Connector and PIC 16F690 Controller. PN - NHD-0420D3Z-NSW-BBW-V3

$32.20

Min: 1  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

3350 reported as of 02/06/24 Allow 2 days for transfer

REACH Compliant

Yes

Operating Temp.

(-)20 ~ (+)70

Product Spec

Click Here

Product Photo

Click Here

Operating Temp

(-)20 ~ (+)70

NAFTA Compliant

No

Outline Dimension

98.0 x 60.0

MSL

Maintain in Room Temp.

PACKAGING TYPE

Bulk/Tray/Box

Back Light (LED)

White

REACH Compliant?

Yes

Registerable

Yes

Step File Links

Click Here

Stock Status

Stocked

VIEW

6:00

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

LEAD(Pb) FREE

Yes

CAGE CODE

7XUK2

Character Size CH x CW

4.75 x 2.95

CLASS CODE

EAR99

Connector Type

TOP 3, 6, 5 Pins

Controller

PIC 16F690

Data Links

Click Here

Display Format

4 x 20 Characters

Display Mode

Transmissive

Display Type

STN-BLUE

LEAD TIME (WEEKS)

14-16

Is Part STATIC Sensitive

Yes

Is Part LEAD(Pb) FREE

Yes

Voltage Supply

5 V

Is Dry Pack Required?

No

Interface

I2C, RS232, SPI

Image Links

Click Here

STATIC Sensitive

Yes

Dry Pack Required

No

Step File Name

www.newhavendisplay.com/docs/STEPFiles/NHD-0420D3Z.zip

Status

Stocked
