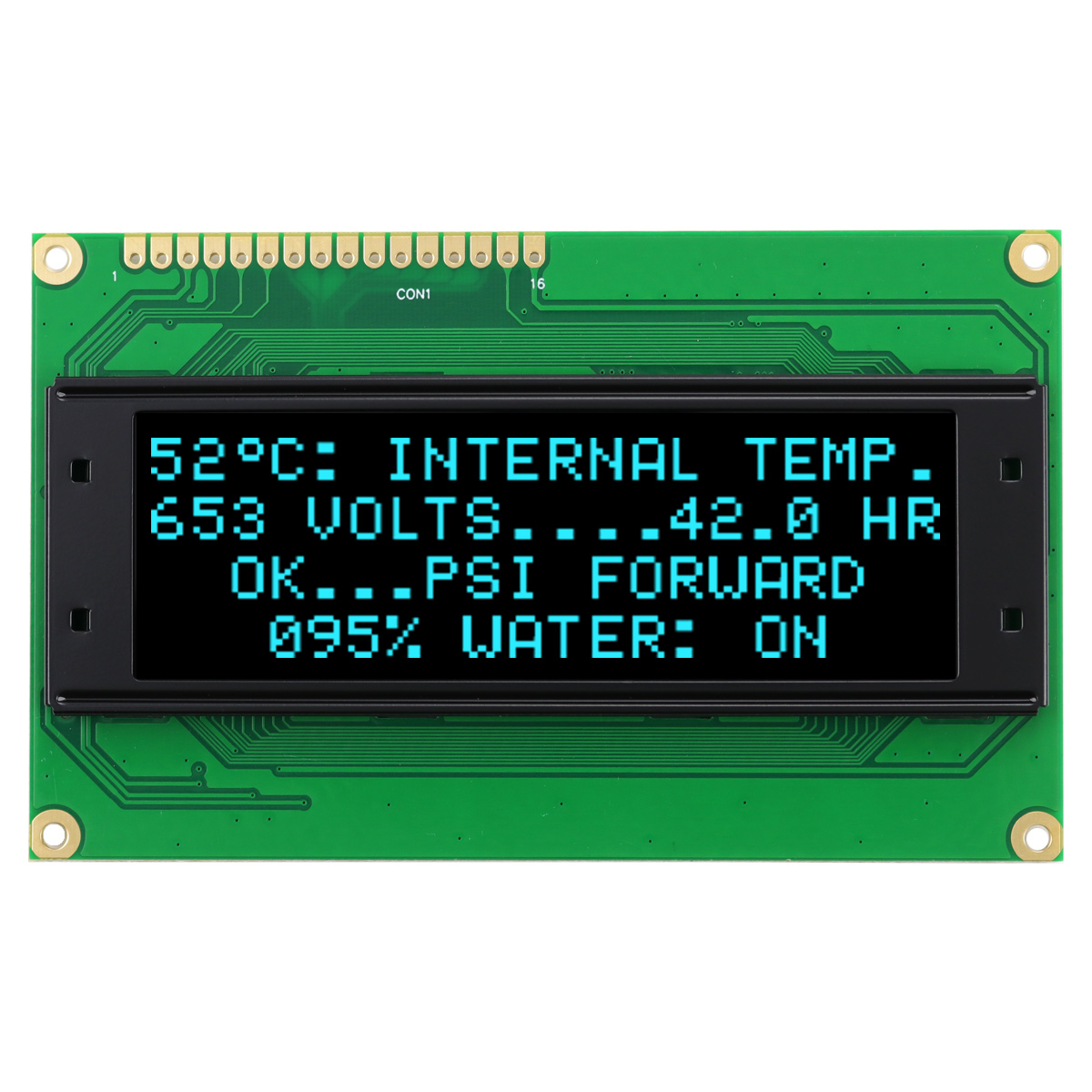

NHD-0420DZW-AB5

Newhaven | OLED Displays | 4x20 Char OLED Disp
yellow-timer-icon Factory Lead Time: 196
onlycheckmark RoHs Compliant
Newhaven Character OLED Display with Display Format 4 x 20 with 4.75 x 2.90 Character size Using Parallel / 3 wire SPI Interface Full Part Number: NHD-0420DZW-AB5

$43.30

Min: 1  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

0 reported as of 10/06/23 Allow 2 days for transfer

Product Photo

Click Here

REACH Compliant

Yes

Operating Temp.

(-)40 ~ (+)80

Product Spec

Click Here

Operating Temp

(-)40 ~ (+)80

Outline Dimension

98.0 x 60.0 x 10.0

PACKAGING TYPE

Bulk/Tray/Box

NAFTA Compliant

No

Back Light (LED)

None

REACH Compliant?

Yes

Registerable

Yes

Step File Links

Click Here

Stock Status

Stocked

VIEW

Full

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

LEAD(Pb) FREE

Yes

CAGE CODE

7XUK2

Character Size CH x CW

4.75 x 2.90

Connector Type

1 x 16 Top

Controller

Proprietary

Data Links

Click Here

Display Format

4 x 20 Characters

Display Mode

Blue

Display Type

OLED Display

Voltage Supply

5 V or 3 V

Image Links

Click Here

Interface

Parallel / 3 wire SPI

Is Dry Pack Required?

No

LEAD TIME (WEEKS)

28

Is Part STATIC Sensitive

Yes

Is Part LEAD(Pb) FREE

Yes

Dry Pack Required

No

STATIC Sensitive

Yes

Step File Name

www.newhavendisplay.com/docs/STEPFiles/NHD-0420DZW.zip

Status

Stocked
