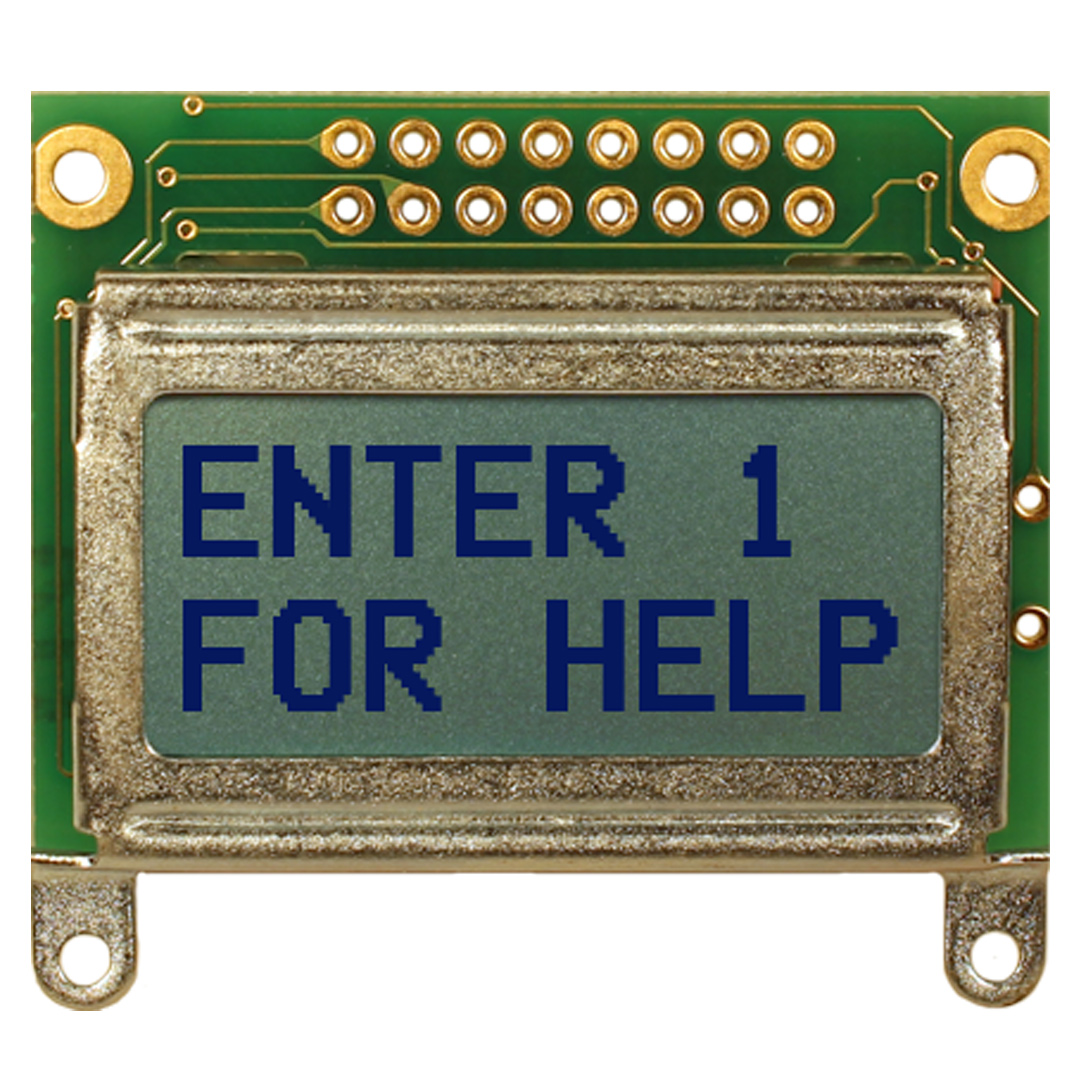

NHD-0208AZ-RN-GBW

Newhaven | LCD Character | 2x8 Character LCD
yellow-timer-icon Factory Lead Time: 105
onlycheckmark RoHs Compliant
Newhaven LCD Character Display Display with Display Format 2 x 8 Characters with 4.75 x 2.95 Character size Using 8-Bit Parallel Interface Full Part Number: NHD-0208AZ-RN-GBW

$6.00

Min: 100  Mult: 1

Product Attributes

Remote Warehouse

0 reported as of 08/01/22 Allow 2 days for transfer

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Back Light (LED)

None

Operating Temp.

(-)20 ~ (+)70

Product Photo

Click Here

Product Spec

Click Here

REACH Compliant

Yes

Registerable

Yes

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

MSL

Maintain in Room Temp.

NAFTA Compliant

No

Operating Temp

(-)20 ~ (+)70

Voltage Supply

5 V

Outline Dimension

40.0 x 35.4

PACKAGING TYPE

Bulk/Tray/Box

VIEW

6:00

Stock Status

Non-Stocked

Step File Links

Click Here

REACH Compliant?

Yes

LEAD(Pb) FREE

Yes

LEAD TIME (WEEKS)

14-16

CAGE CODE

7XUK2

Character Size CH x CW

4.75 x 2.95

Connector Type

2x8 Top

Controller

SPLC780D OR ST7066U

Data Links

Click Here

Display Format

2 x 8 Characters

Display Mode

Reflective

Display Type

STN- GRAY

Is Dry Pack Required?

No

Interface

8-Bit Parallel

Image Links

Click Here

Is Part LEAD(Pb) FREE

Yes

Is Part STATIC Sensitive

Yes

Dry Pack Required

No

STATIC Sensitive

Yes

Step File Name

http://www.newhavendisplay.com/docs/STEPFiles/NHD-0208AZ-RN.zip

Status

Non-Stocked

Display Screen Size.

2 x 8 Character

Family.

Model AZ

Polarizer.

Reflective

Backlight.

No Backlight

Display Mode.

STN Gray

View Angle.

6:00 O'clock

Operating Temperature.

Wide -20C to +70C

Special (x)

None
