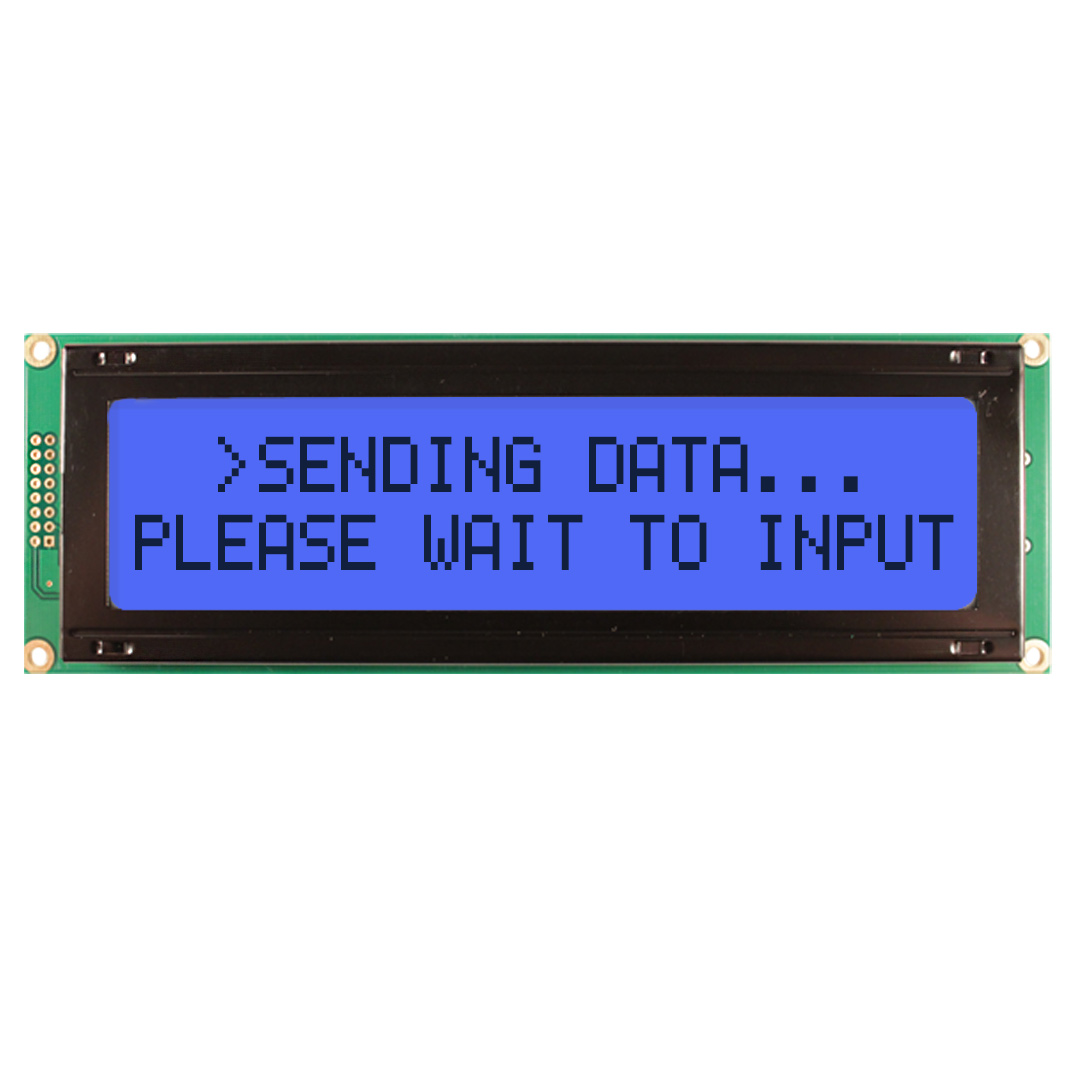

NHD-0220JZ-FSB-GBW

Newhaven | LCD Character | 2x20 Character LCD
yellow-timer-icon Factory Lead Time: 105
onlycheckmark RoHs Compliant
Newhaven LCD Character Display Display with Display Format 2 x 20 Characters with 12.0 x 6.00 Character size Using 8-Bit Parallel Interface Full Part Number: NHD-0220JZ-FSB-GBW

$23.30

Min: 100  Mult: 1

Product Attributes

Remote Warehouse

0 reported as of 09/07/21 Allow 2 days for transfer

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Product Photo

Click Here

Product Spec

Click Here

REACH Compliant

Yes

Operating Temp.

(-)20 ~ (+)70

NAFTA Compliant

No

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

LEAD(Pb) FREE

Yes

Operating Temp

(-)20 ~ (+)70

MSL

Maintain in Room Temp.

Outline Dimension

182.0 x 60.0

PACKAGING TYPE

Bulk/Tray/Box

VIEW

6:00

REACH Compliant?

Yes

Registerable

Yes

Voltage Supply

5 V

Stock Status

Non-Stocked

LEAD TIME (WEEKS)

14-16

Is Part STATIC Sensitive

Yes

Back Light (LED)

BLUE

CAGE CODE

7XUK2

Character Size CH x CW

12.0 x 6.00

Connector Type

1x16 Left

Controller

S6A0069

Data Links

Click Here

Display Format

2 x 20 Characters

Display Mode

Transflective

Interface

8-Bit Parallel

Is Part LEAD(Pb) FREE

Yes

Is Dry Pack Required?

No

Display Type

STN- GRAY

Image Links

Click Here

STATIC Sensitive

Yes

Dry Pack Required

No

Status

Non-Stocked

Display Screen Size.

2 x 20 Characters

Family.

Model JZ

Polarizer.

Transflective

Backlight.

Blue

Display Mode.

STN Gray

View Angle.

6:00 O'clock

Operating Temperature.

Wide -20C to +70C

Special (x)

None
