NHD-0220FZ-FSW-GBW-P

Newhaven | LCD Character | 2x20 Character LCD
yellow-timer-icon Factory Lead Time: 105
onlycheckmark RoHs Compliant

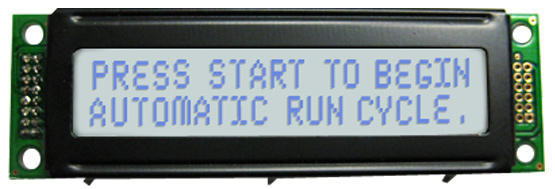

Newhaven 2 x 20 Characters Transflective LCD Character Display @ 5V and 8-Bit Parallel Interface with 2x8 L; 2x8 R Connector and SPLC780D OR ST7066U Controller. PN - NHD-0220FZ-FSW-GBW-P

$9.60

Min: 1  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

175 reported as of 02/06/24 Allow 2 days for transfer

Product Photo

Click Here

REACH Compliant

Yes

Operating Temp.

(-)20 ~ (+)70

Product Spec

Click Here

Operating Temp

(-)20 ~ (+)70

Outline Dimension

65.0 x 20.0

PACKAGING TYPE

Bulk/Tray/Box

NAFTA Compliant

No

Back Light (LED)

WHITE

REACH Compliant?

Yes

Registerable

Yes

Step File Links

Click Here

Stock Status

Stocked

VIEW

6:00

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

LEAD(Pb) FREE

Yes

CAGE CODE

7XUK2

Character Size CH x CW

4.25 x 1.85

Connector Type

2x8 L, 2x8 R

Controller

SPLC780D OR ST7066U

Data Links

Click Here

Display Format

2 x 20 Characters

Display Mode

Transflective

Display Type

STN- GRAY

Voltage Supply

5 V

Image Links

Click Here

Interface

8-Bit Parallel

Is Dry Pack Required?

No

LEAD TIME (WEEKS)

14-16

Is Part STATIC Sensitive

Yes

Is Part LEAD(Pb) FREE

Yes

Dry Pack Required

No

STATIC Sensitive

Yes

Step File Name

http://www.newhavendisplay.com/redirect.html?goto=www.newhavendisplay.com%2Fdocs%2FSTEPFiles%2FNHD-0220FZ-FSW.zip&action=url

Status

Stocked
