NHD-0220DZ-NSW-FBW

Newhaven | LCD Character | 2x20 Character LCD
yellow-timer-icon Factory Lead Time: 105
onlycheckmark RoHs Compliant

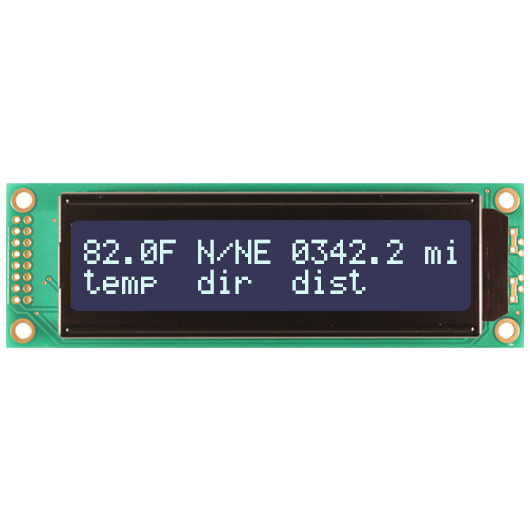

Newhaven 2 x 20 Characters Transmissive LCD Character Display @ 5V and 8-Bit Parallel Interface with 2x8 Left Connector and SPLC780D OR ST7066U Controller. PN - NHD-0220DZ-NSW-FBW

$15.60

Min: 300  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

0 reported as of 09/07/21 Allow 2 days for transfer

REACH Compliant

Yes

Operating Temp.

(-)20 ~ (+)70

Product Spec

Click Here

Product Photo

Click Here

NAFTA Compliant

No

Operating Temp

(-)20 ~ (+)70

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

Outline Dimension

116.0 x 37.0

PACKAGING TYPE

Bulk/Tray/Box

Voltage Supply

5 V

REACH Compliant?

Yes

Registerable

Yes

Step File Links

Click Here

Stock Status

Non-Stocked

VIEW

6:00

LEAD(Pb) FREE

Yes

LEAD TIME (WEEKS)

14-16

Is Part STATIC Sensitive

Yes

CAGE CODE

7XUK2

Character Size CH x CW

5.55 x 3.20

Connector Type

2x8 Left

Controller

SPLC780D OR ST7066U

Data Links

Click Here

Display Format

2 x 20 Characters

Display Mode

Transmissive

Display Type

FSTN (-)

Back Light (LED)

White

Is Part LEAD(Pb) FREE

Yes

Is Dry Pack Required?

No

Interface

8-Bit Parallel

Image Links

Click Here

STATIC Sensitive

Yes

Dry Pack Required

No

Status

Non-Stocked

Step File Name

http://www.newhavendisplay.com/docs/STEPFiles/NHD-0220DZ.zip

Display Screen Size.

2 x 20 Characters

Family.

Model DZ

Polarizer.

Transmissive

Backlight.

White

Display Mode.

FSTN

View Angle.

6:00 O'clock

Operating Temperature.

Wide -20C to +70C

Special (x)

None
