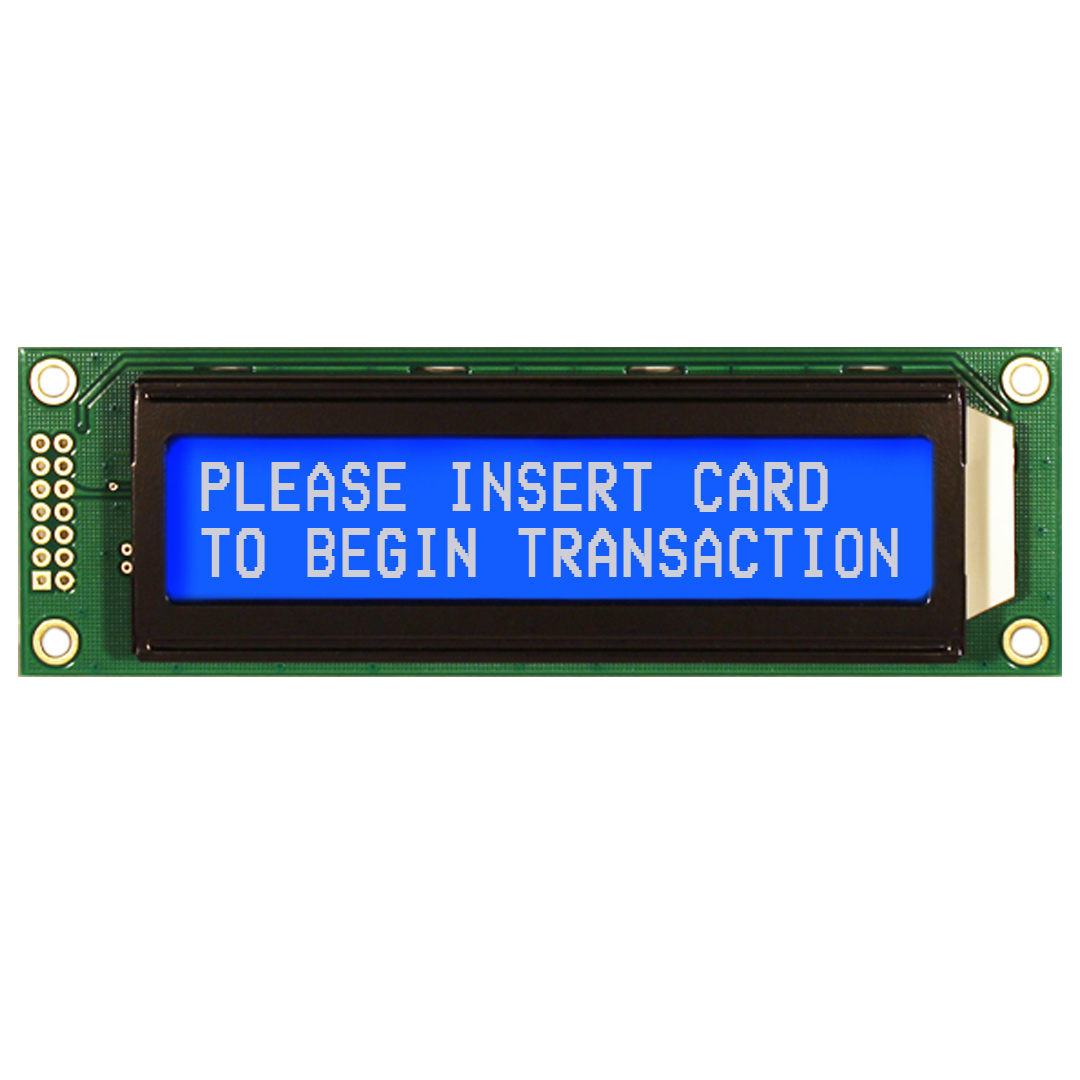

NHD-0220D3Z-NSW-BBW-V3

Newhaven | Serial Displays | 2x20 Character LCD
yellow-timer-icon Factory Lead Time: 105
onlycheckmark RoHs Compliant
Newhaven Serial LCD Display with Display Format 2 x 20 Characters with 5.55 x 3.2 Character size Using I2C, RS232, SPI Interface Full Part Number: NHD-0220D3Z-NSW-BBW-V3

$29.50

Min: 1  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

1450 reported as of 02/06/24 Allow 2 days for transfer

REACH Compliant

Yes

Operating Temp.

(-)20 ~ (+)70

Product Spec

Click Here

Product Photo

Click Here

Operating Temp

(-)20 ~ (+)70

NAFTA Compliant

No

Outline Dimension

116.0 x 37.0

MSL

Maintain in Room Temp.

PACKAGING TYPE

Bulk/Tray/Box

Back Light (LED)

White

REACH Compliant?

Yes

Registerable

Yes

Step File Links

Click Here

Stock Status

Stocked

VIEW

6:00

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

LEAD(Pb) FREE

Yes

CAGE CODE

7XUK2

Character Size CH x CW

5.55 x 3.2

CLASS CODE

EAR99

Connector Type

LEFT 2x16

Controller

PIC 16F690

Data Links

Click Here

Display Format

2 x 20 Characters

Display Mode

Transmissive

Display Type

STN-BLUE

LEAD TIME (WEEKS)

14-16

Is Part STATIC Sensitive

Yes

Is Part LEAD(Pb) FREE

Yes

Voltage Supply

5 V

Is Dry Pack Required?

No

Interface

I2C, RS232, SPI

Image Links

Click Here

STATIC Sensitive

Yes

Dry Pack Required

No

Step File Name

http://www.newhavendisplay.com/docs/STEPFiles/NHD-0220D3Z.zip

Status

Stocked

Not available at this time.
