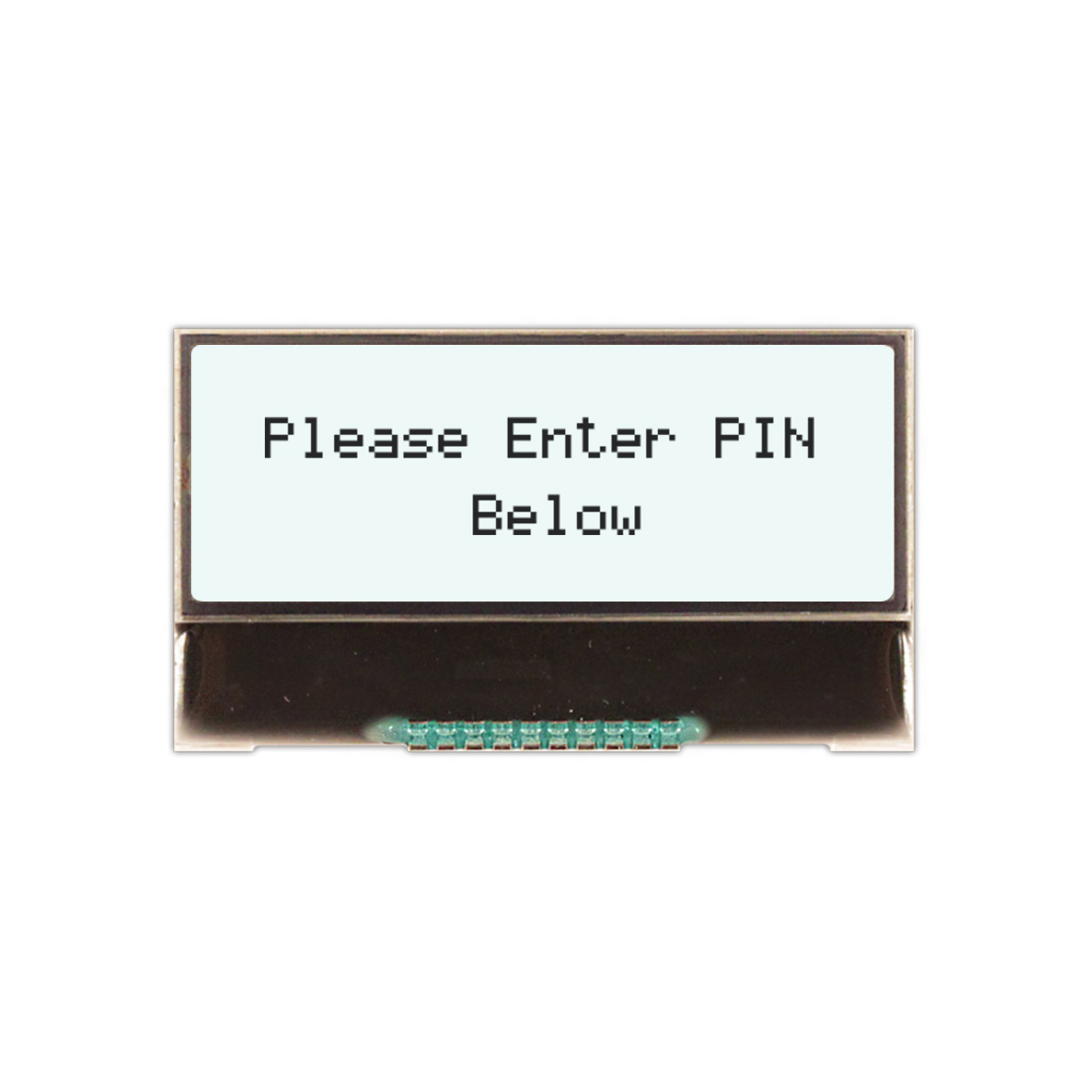

NHD-C0216CZ-FSW-FBW-3V3

Newhaven | CHIP-ON-GLASS Char | 2x16 Charater COG
green-check-icon Total Stock: 6085
blue-timer-icon Drop Ship Quantity: 6050
yellow-timer-icon Factory Lead Time: 126
onlycheckmark RoHs Compliant
Newhaven Chip on Glass- Character Display with Display Format 2 x 16 Characters with 4.13 x 1.82 Character size Using 4-Bit / SPI Interface Full Part Number: NHD-C0216CZ-FSW-FBW-3V3

$10.40

Min: 1  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

6050 reported as of 02/06/24 Allow 2 days for transfer

REACH Compliant

Yes

Operating Temp.

(-)20 ~ (+)70

Product Spec

Click Here

Product Photo

Click Here

NAFTA Compliant

No

Operating Temp

(-)20 ~ (+)70

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

Outline Dimension

41.4 x 24.3 x 4.0

PACKAGING TYPE

Bulk/Tray/Box

Voltage Supply

3 V

REACH Compliant?

Yes

Registerable

Yes

Step File Links

Click Here

Stock Status

Stocked

VIEW

6:00

LEAD(Pb) FREE

Yes

LEAD TIME (WEEKS)

18

Is Part STATIC Sensitive

Yes

CAGE CODE

7XUK2

Character Size CH x CW

4.13 x 1.82

Connector Type

1x14 Bottom Pin

Controller

ST-7032

Data Links

Click Here

Display Format

2 x 16 Characters

Display Mode

Transflective

Display Type

FSTN (+)

Back Light (LED)

White 3 V

Is Part LEAD(Pb) FREE

Yes

Is Dry Pack Required?

No

Interface

4-Bit / SPI

Image Links

Click Here

STATIC Sensitive

Yes

Dry Pack Required

No

Status

Stocked

Step File Name

http://www.newhavendisplay.com/docs/STEPFiles/NHD-C0216CZ-FSW-FBW-3V3.zip

Display Screen Size.

2 x 16 COG Char

Family.

Model CZ

Polarizer.

Transflective

Backlight.

White

Display Mode.

FSTN

View Angle.

6:00 O'clock

Operating Temperature.

Wide -20C to +70C

Special (x)

Replace with Value Sec-8 Pos-4

Not available at this time.
