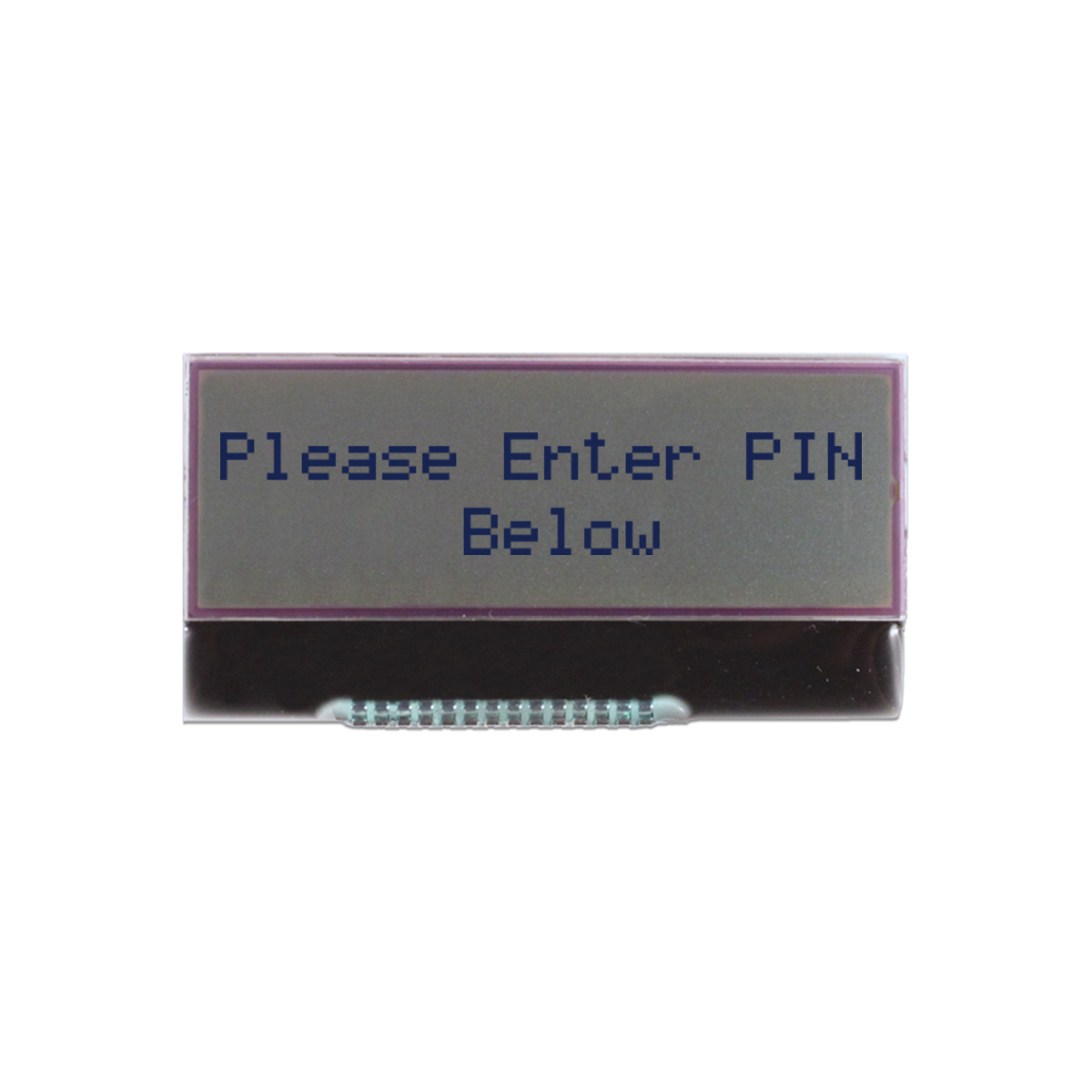

NHD-C0216AZ-FN-GBW

Newhaven | CHIP-ON-GLASS Char | 2x16 Charater COG
yellow-timer-icon Factory Lead Time: 105
onlycheckmark RoHs Compliant
Newhaven Chip on Glass- Character Display with Display Format 2 x 16 Characters with 4.68 x 2.21 Character size Using Parallel Interface Full Part Number: NHD-C0216AZ-FN-GBW

$10.90

Min: 1  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

3900 reported as of 02/06/24 Allow 2 days for transfer

REACH Compliant

Yes

Operating Temp.

(-)20 ~ (+)70

Product Spec

Click Here

Product Photo

Click Here

NAFTA Compliant

No

Operating Temp

(-)20 ~ (+)70

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

Outline Dimension

49.7 x 25.3 x 2.1

PACKAGING TYPE

Bulk/Tray/Box

Voltage Supply

5 V

REACH Compliant?

Yes

Registerable

Yes

Step File Links

Click Here

Stock Status

Stocked

VIEW

6:00

LEAD(Pb) FREE

Yes

LEAD TIME (WEEKS)

15

Is Part STATIC Sensitive

Yes

CAGE CODE

7XUK2

Character Size CH x CW

4.68 x 2.21

Connector Type

1x14 Bottom Pin

Controller

NT-7605

Data Links

Click Here

Display Format

2 x 16 Characters

Display Mode

Transflective

Display Type

STN-GRAY

Back Light (LED)

None

Is Part LEAD(Pb) FREE

Yes

Is Dry Pack Required?

No

Interface

Parallel

Image Links

Click Here

STATIC Sensitive

Yes

Dry Pack Required

No

Status

Stocked

Step File Name

www.newhavendisplay.com/docs/STEPFiles/NHD-C0216AZ-FN.zip

Display Screen Size.

2 x 16 COG Char

Family.

Model AZ

Polarizer.

Transflective

Backlight.

No Backlight

Display Mode.

STN Gray

View Angle.

6:00 O'clock

Operating Temperature.

Wide -20C to +70C

Special (x)

None
