NHD-0216BZ-FL-YBW

Newhaven | LCD Character | 2x16 Character LCD
green-check-icon Total Stock: 5
yellow-timer-icon Factory Lead Time: 105
onlycheckmark RoHs Compliant

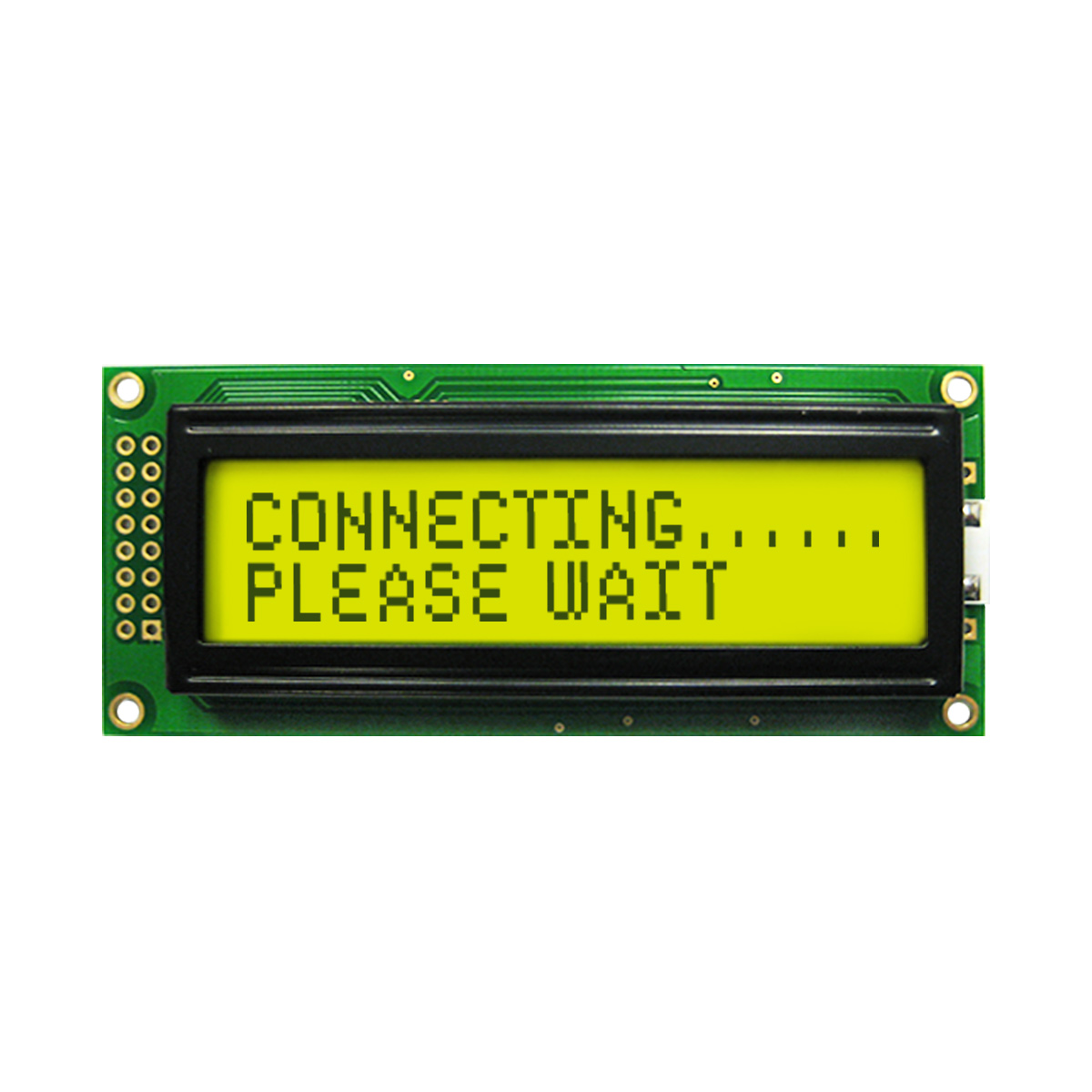

Newhaven 2 x 16 Characters Transflective LCD Character Display @ 5V and 8-Bit Parallel Interface with 1x16 Bottom Connector and SPLC780D OR ST7066U Controller. PN - NHD-0216BZ-FL-YBW

$8.60

Min: 1  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

3450 reported as of 02/06/24 Allow 2 days for transfer

REACH Compliant

Yes

Operating Temp.

(-)20 ~ (+)70

Product Spec

Click Here

Product Photo

Click Here

NAFTA Compliant

No

Operating Temp

(-)20 ~ (+)70

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

Outline Dimension

84.0 x 44.0

PACKAGING TYPE

Bulk/Tray/Box

Voltage Supply

5 V

REACH Compliant?

Yes

Registerable

Yes

Step File Links

Click Here

Stock Status

Stocked

VIEW

6:00

LEAD(Pb) FREE

Yes

LEAD TIME (WEEKS)

14-16

Is Part STATIC Sensitive

Yes

CAGE CODE

7XUK2

Character Size CH x CW

5.23 x 3.00

Connector Type

1x16 Bottom

Controller

SPLC780D OR ST7066U

Data Links

Click Here

Display Format

2 x 16 Characters

Display Mode

Transflective

Display Type

STN- Y/G

Back Light (LED)

Yellow/Green

Is Part LEAD(Pb) FREE

Yes

Is Dry Pack Required?

No

Interface

8-Bit Parallel

Image Links

Click Here

STATIC Sensitive

Yes

Dry Pack Required

No

Status

Stocked

Step File Name

www.newhavendisplay.com/docs/STEPFiles/NHD-0216BZ.zip

Display Screen Size.

2 x 16 Characters

Family.

Model BZ

Polarizer.

Transflective

Backlight.

Yellow/Green Array

Display Mode.

STN Yellow/Green

View Angle.

6:00 O'clock

Operating Temperature.

Wide -20C to +70C

Special (x)

None
