NHD-0212WH-AYYH-JT#

Newhaven | LCD Character | 2x12 Character LCD
yellow-timer-icon Factory Lead Time: 105
onlycheckmark RoHs Compliant
Newhaven LCD Character Display Display with Display Format 2 x 12 Characters with 6.35 x 2.70 Character size Using 8-Bit Parallel Interface Full Part Number: NHD-0212WH-AYYH-JT#

$7.60

Min: 100  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

0 reported as of 09/07/21 Allow 2 days for transfer

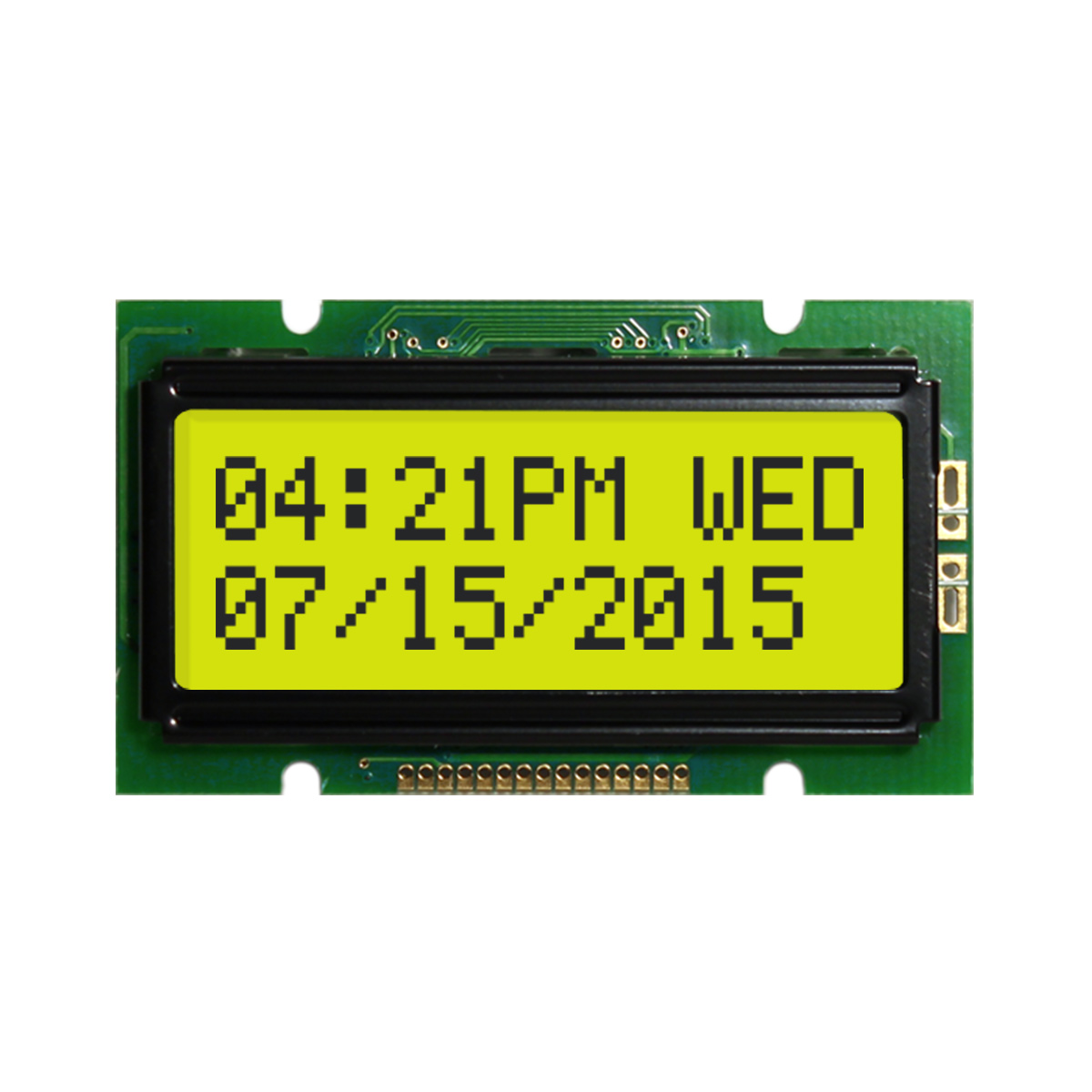

Product Photo

Click Here

REACH Compliant

Yes

Operating Temp.

(-)20 ~ (+)70

Product Spec

Click Here

Operating Temp

(-)20 ~ (+)70

Outline Dimension

55.7 x 32.0

PACKAGING TYPE

Bulk/Tray/Box

NAFTA Compliant

No

Back Light (LED)

Yellow/Green

REACH Compliant?

Yes

Registerable

Yes

Step File Links

Click Here

Stock Status

Non-Stocked

VIEW

6:00

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

LEAD(Pb) FREE

Yes

CAGE CODE

7XUK2

Character Size CH x CW

6.35 x 2.70

Connector Type

1x15 Bottom

Controller

SPLC780D OR ST7066U

Data Links

Click Here

Display Format

2 x 12 Characters

Display Mode

Transflective

Display Type

STN- Y/G

Voltage Supply

5 V

Image Links

Click Here

Interface

8-Bit Parallel

Is Dry Pack Required?

No

LEAD TIME (WEEKS)

14-16

Is Part STATIC Sensitive

Yes

Is Part LEAD(Pb) FREE

Yes

Dry Pack Required

No

STATIC Sensitive

Yes

Step File Name

www.newhavendisplay.com/docs/STEPFiles/NHD-0212WH-AYYH-JT.zip

Status

Non-Stocked

Not available at this time.
