NHD-3.12-25664UMB3

Newhaven | OLED Displays | 256x64 Multi-Font
yellow-timer-icon Factory Lead Time: 364
onlycheckmark RoHs Compliant

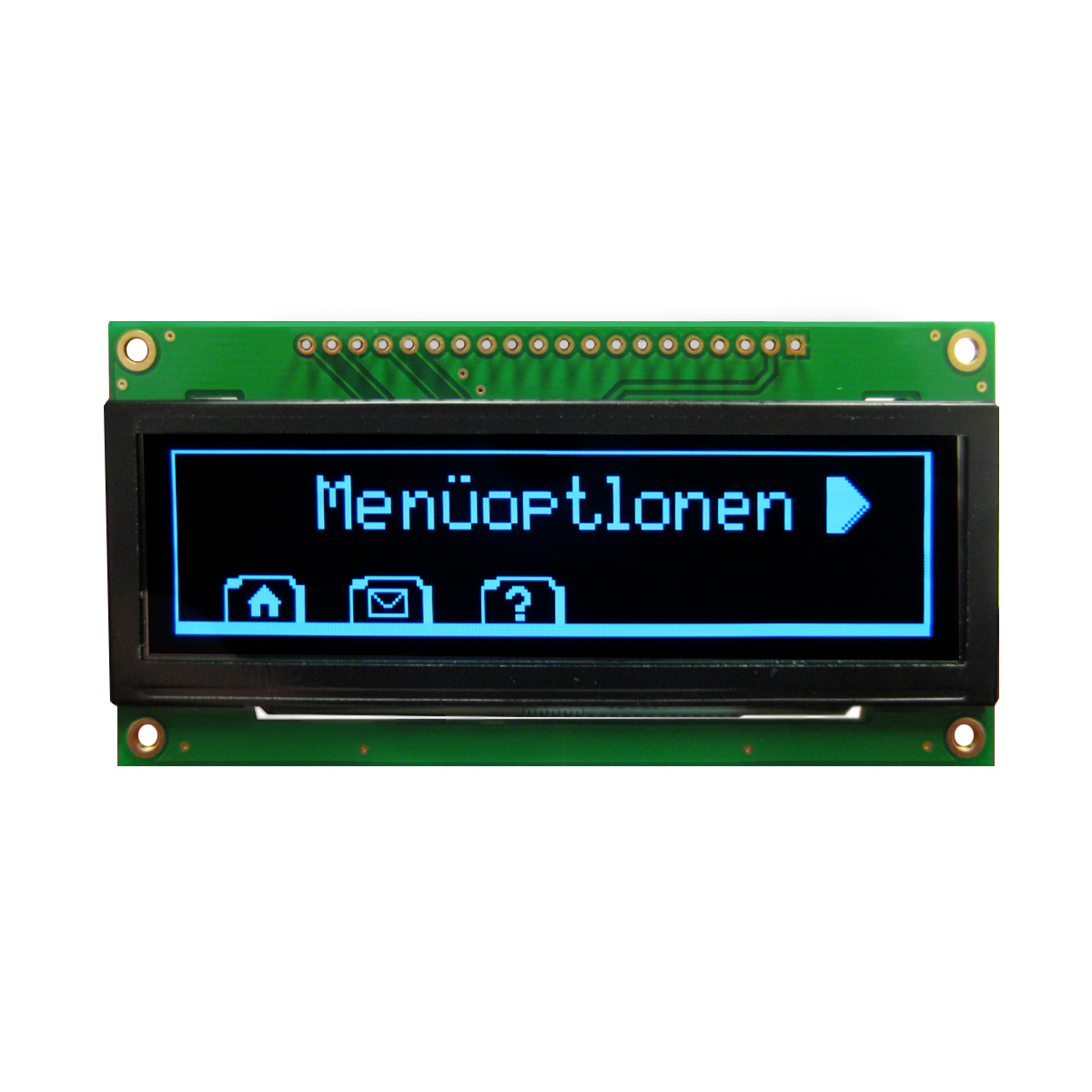

Newhaven 256 x 64 pixels Blue 3.12 Blue Multi-Font Graphic OLED @ 3V and 8-bit Parallel/3-wire SPI or 4-wire SPI Interface with 1 x 20 Top Connector and SSD1322 Controller. PN - NHD-3.12-25664UMB3

$45.00

Min: 1  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

0 reported as of 12/10/21 Allow 2 days for transfer

Product Photo

Click Here

REACH Compliant

Yes

Operating Temp.

(-)20 ~ (+)70

Product Spec

Click Here

Operating Temp

(-)20 ~ (+)70

Outline Dimension

89.2 x 44.0 x 6.0

PACKAGING TYPE

Bulk/Tray/Box

NAFTA Compliant

No

Back Light (LED)

None

REACH Compliant?

Yes

Registerable

Yes

Step File Links

Click Here

Stock Status

Stocked

VIEW

Full

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

CAGE CODE

7XUK2

Connector Type

1 x 20 Top

Controller

SSD1322

Data Links

Click Here

Display Format

256 x 64 pixels

Display Mode

Blue

Display Type

OLED Display

Voltage Supply

3 V

Image Links

Click Here

Interface

8-bit Parallel/3-wire SPI or 4-wire SPI

Is Dry Pack Required?

No

Is Part LEAD(Pb) FREE

Yes

LEAD(Pb) FREE

Yes

LEAD TIME (WEEKS)

52

Is Part STATIC Sensitive

Yes

Dry Pack Required

No

STATIC Sensitive

Yes

Step File Name

http://www.newhavendisplay.com/docs/STEPFiles/NHD-3.12-25664UMY3.zip

Status

Stocked
