NHD-3.12-25664UCY2

Newhaven | OLED Displays | 256x64 Graphic OLED
yellow-timer-icon Factory Lead Time: 126
onlycheckmark RoHs Compliant

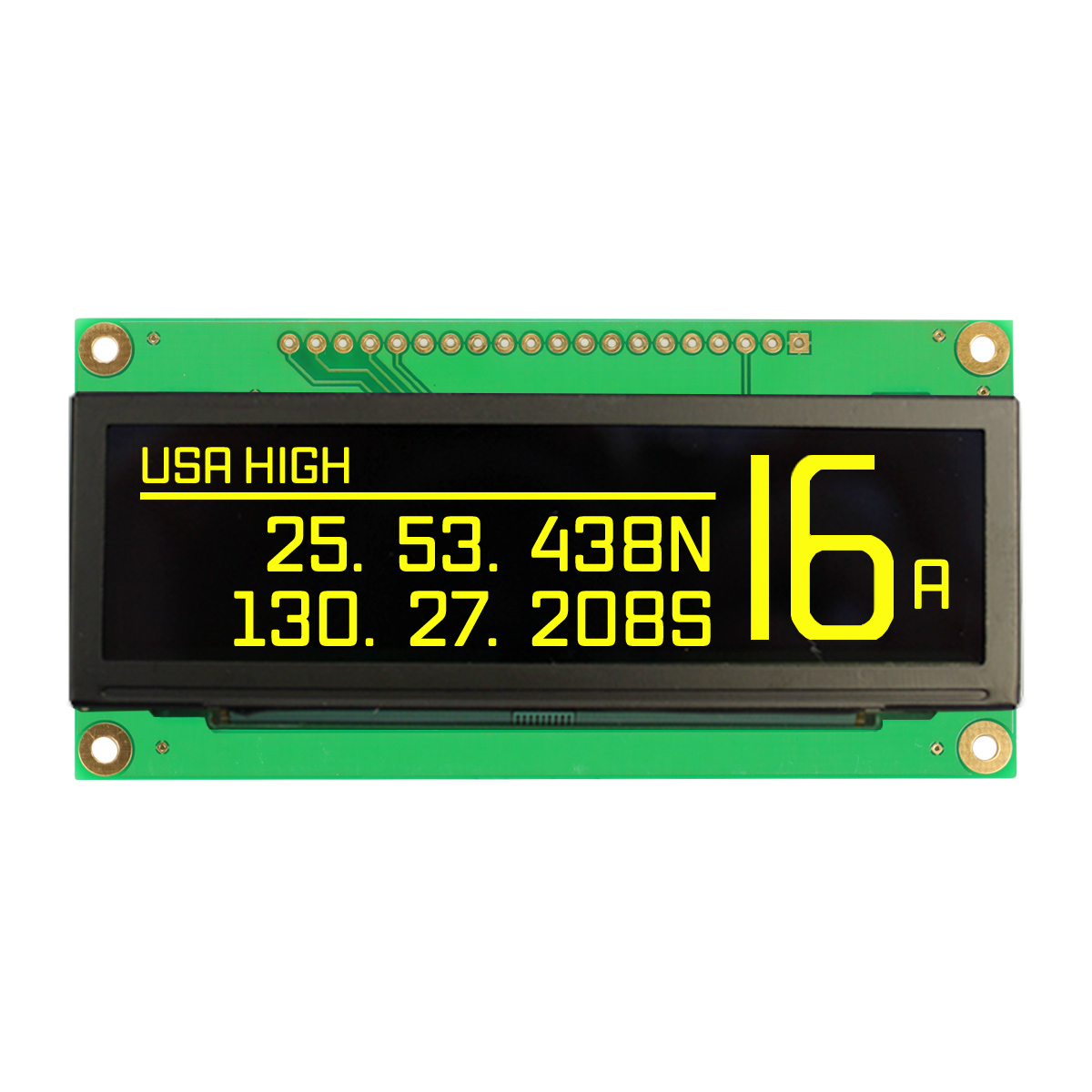

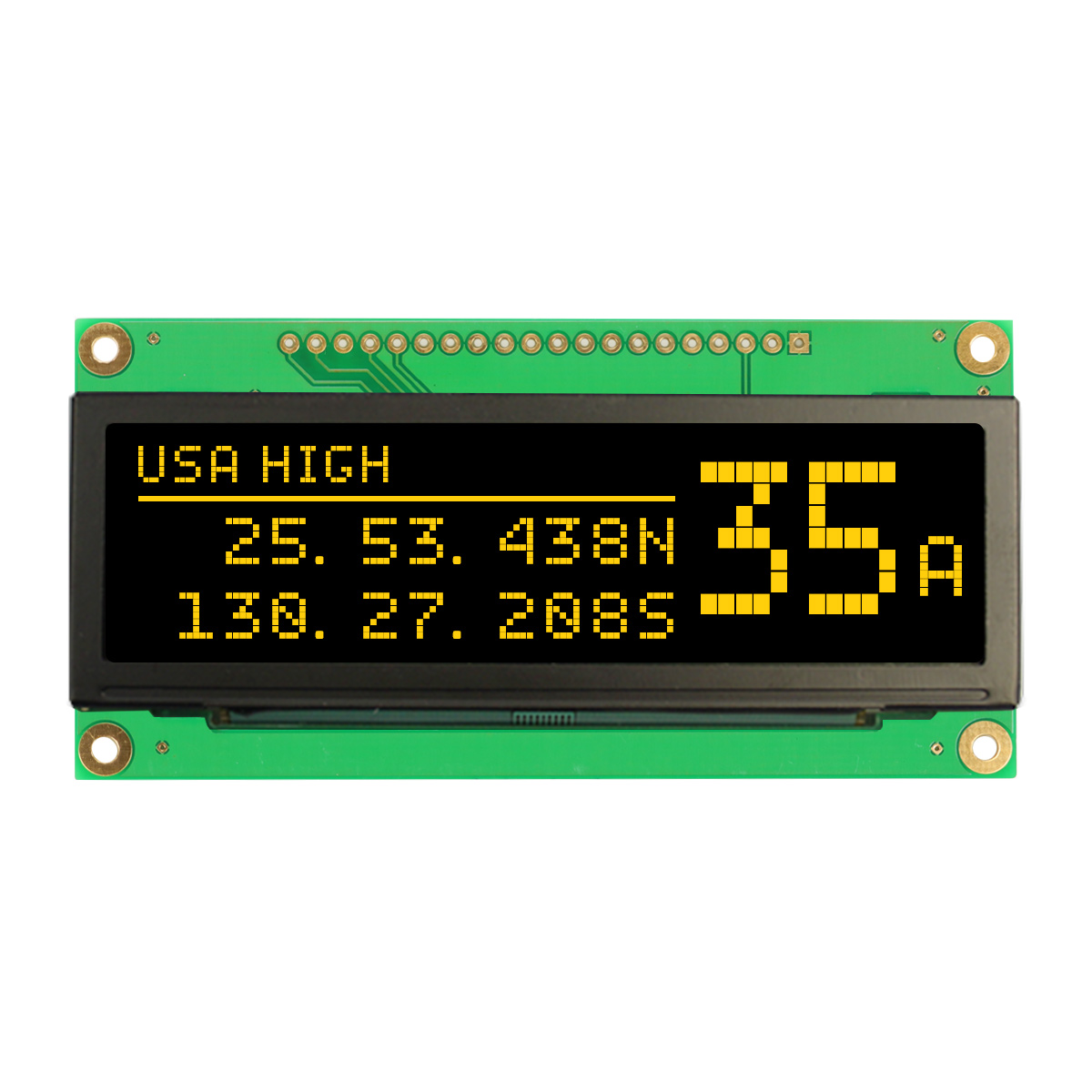

Newhaven 256 x 64 pixels Yellow Graphic OLED @ 2.5V and 8-bit Parallel/3-wire SPI or 4-wire SPI Interface with 1 x 20 Top Connector and SSD1322 Controller. PN - NHD-3.12-25664UCY2

$43.10

Min: 1  Mult: 1

Product Attributes

Remote Warehouse

725 reported as of 02/06/24 Allow 2 days for transfer

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

REACH Compliant

Yes

Operating Temp.

(-)40 ~ (+)85

Product Photo

Click Here

NAFTA Compliant

No

Operating Temp

(-)40 ~ (+)85

Outline Dimension

89.2 x 44.0 x 6.0

PACKAGING TYPE

Bulk/Tray/Box

Back Light (LED)

None

REACH Compliant?

Yes

Registerable

Yes

Step File Links

Click Here

Stock Status

Stocked

VIEW

Full

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

LEAD(Pb) FREE

Yes

CAGE CODE

7XUK2

Connector Type

1 x 20 Top

Controller

SSD1322

Data Links

Click Here

Display Format

256 x 64 pixels

Display Mode

Yellow

Display Type

OLED Display

Voltage Supply

2.5 V

Image Links

Click Here

Interface

8-bit Parallel/3-wire SPI or 4-wire SPI

Is Dry Pack Required?

No

LEAD TIME (WEEKS)

18

Is Part STATIC Sensitive

Yes

Is Part LEAD(Pb) FREE

Yes

Dry Pack Required

No

STATIC Sensitive

Yes

Step File Name

http://www.newhavendisplay.com/redirect.html?goto=www.newhavendisplay.com%2Fdocs%2FSTEPFiles%2FNHD-3.12-25664UC.zip&action=url

Status

Stocked
