NHD-0108HZ-FSW-GBW

Newhaven | LCD Character | 1x8 Character LCD
green-check-icon Total Stock: 8
yellow-timer-icon Factory Lead Time: 105
onlycheckmark RoHs Compliant

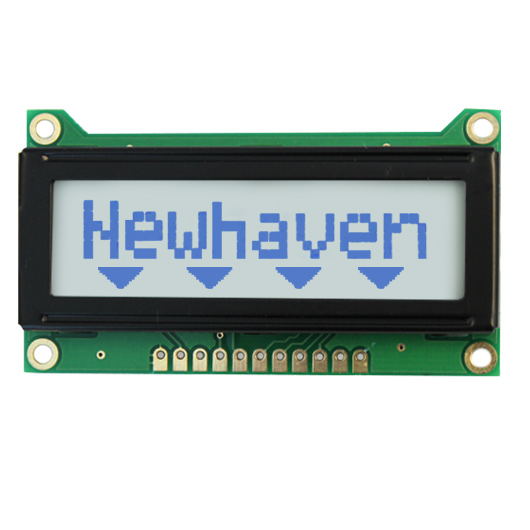

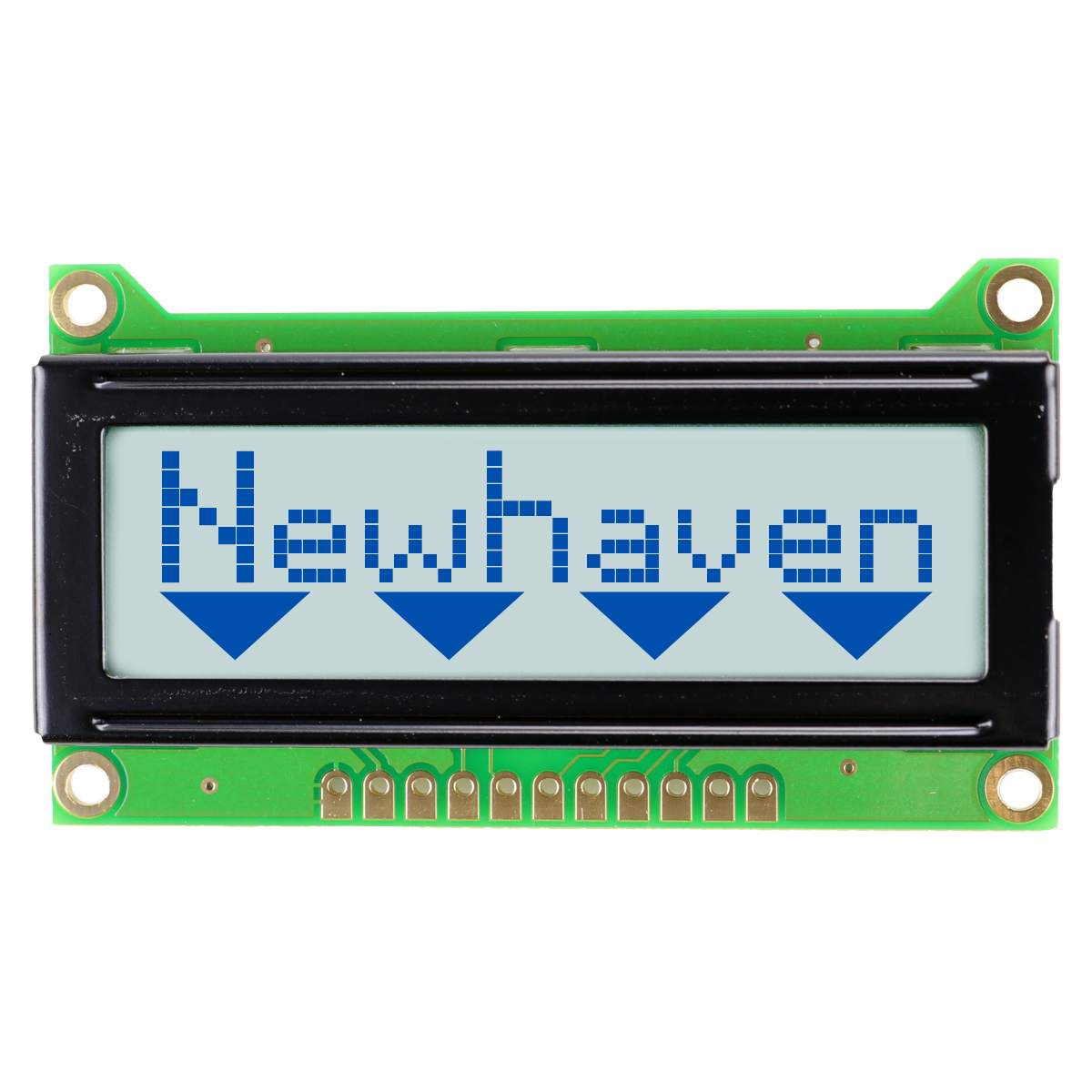

Newhaven 1 x 8 Characters Transflective LCD Character Display @ 3.3V and 4-Bit Parallel Interface with 1x11 Bottom Connector and SPLC780D OR ST7066U Controller. PN - NHD-0108HZ-FSW-GBW

$6.90

Min: 1  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

3000 reported as of 02/06/24 Allow 2 days for transfer

REACH Compliant

Yes

Operating Temp.

(-)20 ~ (+)70

Product Spec

Click Here

Product Photo

Click Here

NAFTA Compliant

No

Operating Temp

(-)20 ~ (+)70

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

Outline Dimension

60.7 x 33.85

PACKAGING TYPE

Bulk/Tray/Box

Voltage Supply

3.3 V

REACH Compliant?

Yes

Registerable

Yes

Step File Links

Click Here

Stock Status

Stocked

VIEW

6:00

LEAD(Pb) FREE

Yes

LEAD TIME (WEEKS)

14-16

Is Part STATIC Sensitive

Yes

CAGE CODE

7XUK2

Character Size CH x CW

7.28 x 5.02

Connector Type

1x11 Bottom

Controller

SPLC780D OR ST7066U

Data Links

Click Here

Display Format

1 x 8 Characters

Display Mode

Transflective

Display Type

STN-GRAY

Back Light (LED)

White (15mA) 3 V

Is Part LEAD(Pb) FREE

Yes

Is Dry Pack Required?

No

Interface

4-Bit Parallel

Image Links

Click Here

STATIC Sensitive

Yes

Dry Pack Required

No

Status

Stocked

Step File Name

www.newhavendisplay.com/docs/STEPFiles/NHD-0108HZ-FSW-GBW.zip

Display Screen Size.

1 x 8 Character

Family.

Model HZ

Polarizer.

Transflective

Backlight.

White

Display Mode.

STN Gray

View Angle.

6:00 O'clock

Operating Temperature.

Wide -20C to +70C

Special (x)

None
