NHD-0108CZ-RN-GBW

Newhaven | LCD Character | 1x8 Character LCD
yellow-timer-icon Factory Lead Time: 105
onlycheckmark RoHs Compliant

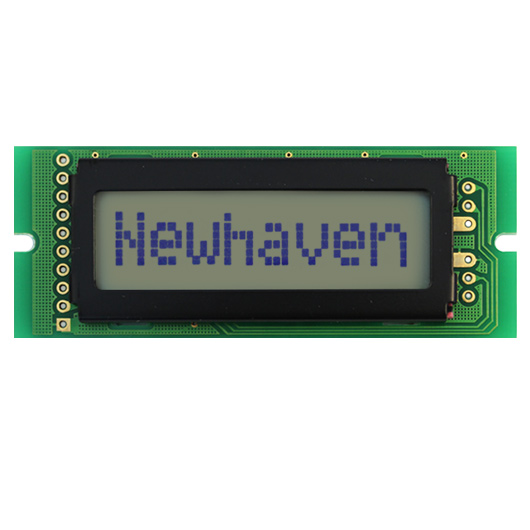

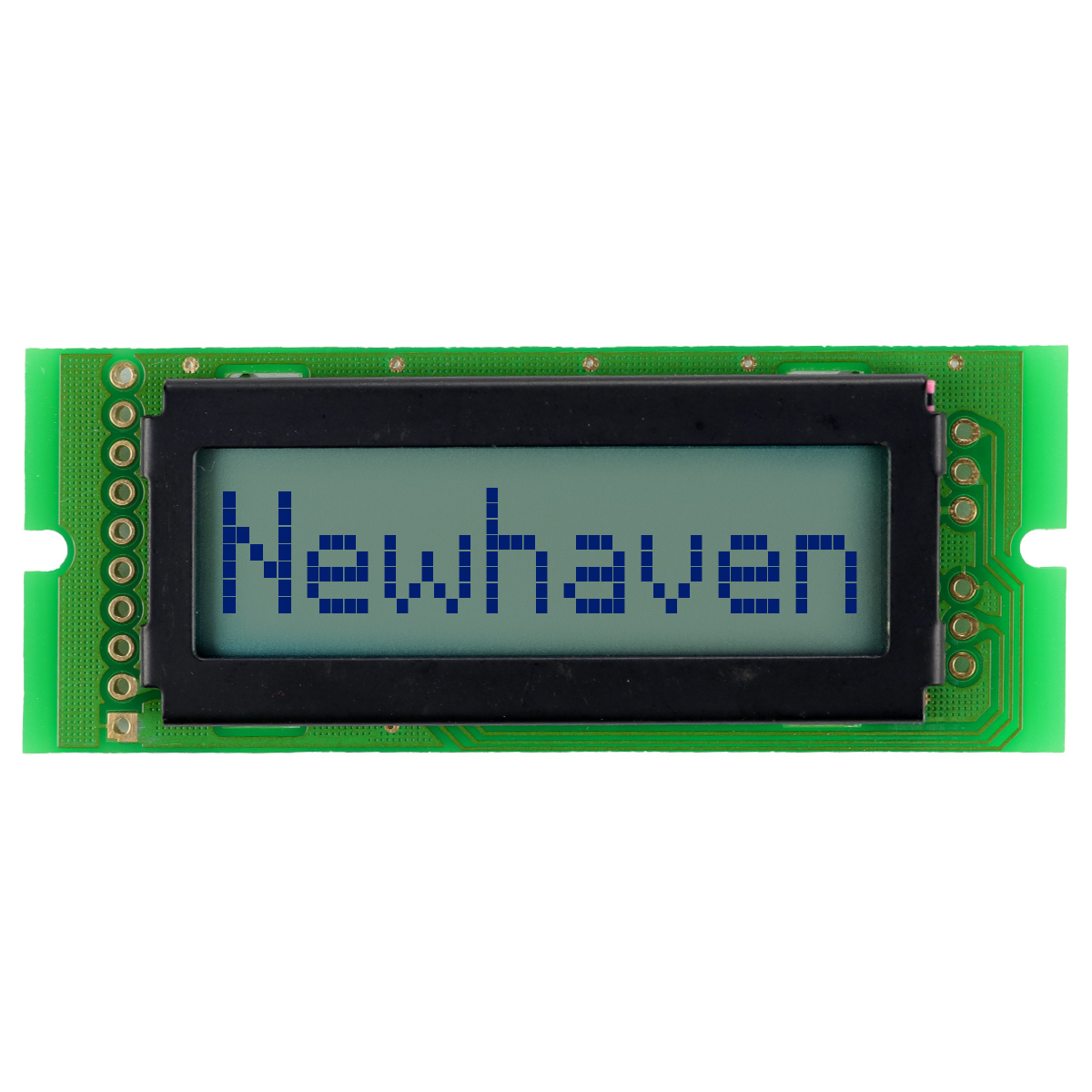

Newhaven 1 x 8 Characters Reflective LCD Character Display @ 5V and 8-Bit Parallel Interface with 1x10 Left Connector and SPLC780D OR ST7066U Controller. PN - NHD-0108CZ-RN-GBW

$6.40

Min: 100  Mult: 1

Product Attributes

Remote Warehouse

0 reported as of 08/01/22 Allow 2 days for transfer

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Back Light (LED)

None

Operating Temp.

(-)20 ~ (+)70

Product Photo

Click Here

Product Spec

Click Here

REACH Compliant

Yes

REACH Compliant?

Yes

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

MSL

Maintain in Room Temp.

NAFTA Compliant

No

Operating Temp

(-)20 ~ (+)70

VIEW

6:00

Outline Dimension

69.0 x 27.0

PACKAGING TYPE

Bulk/Tray/Box

Stock Status

Non-Stocked

Voltage Supply

5 V

Registerable

Yes

LEAD(Pb) FREE

Yes

LEAD TIME (WEEKS)

14-16

Is Part STATIC Sensitive

Yes

CAGE CODE

7XUK2

Character Size CH x CW

7.71 x 4.20

Connector Type

1x10 Left

Controller

SPLC780D OR ST7066U

Data Links

Click Here

Display Format

1 x 8 Characters

Display Mode

Reflective

Display Type

STN-GRAY

Interface

8-Bit Parallel

Is Part LEAD(Pb) FREE

Yes

Is Dry Pack Required?

No

Image Links

Click Here

STATIC Sensitive

Yes

Dry Pack Required

No

Status

Non-Stocked

Display Screen Size.

1 x 8 Character

Family.

Model CZ

Polarizer.

Reflective

Backlight.

No Backlight

Display Mode.

STN Gray

View Angle.

6:00 O'clock

Operating Temperature.

Wide -20C to +70C

Special (x)

None
