NHD-0108BZ-RN-YBW-33V

Newhaven | LCD Character | 1x8 Character LCD
green-check-icon Total Stock: 11
yellow-timer-icon Factory Lead Time: 105
onlycheckmark RoHs Compliant

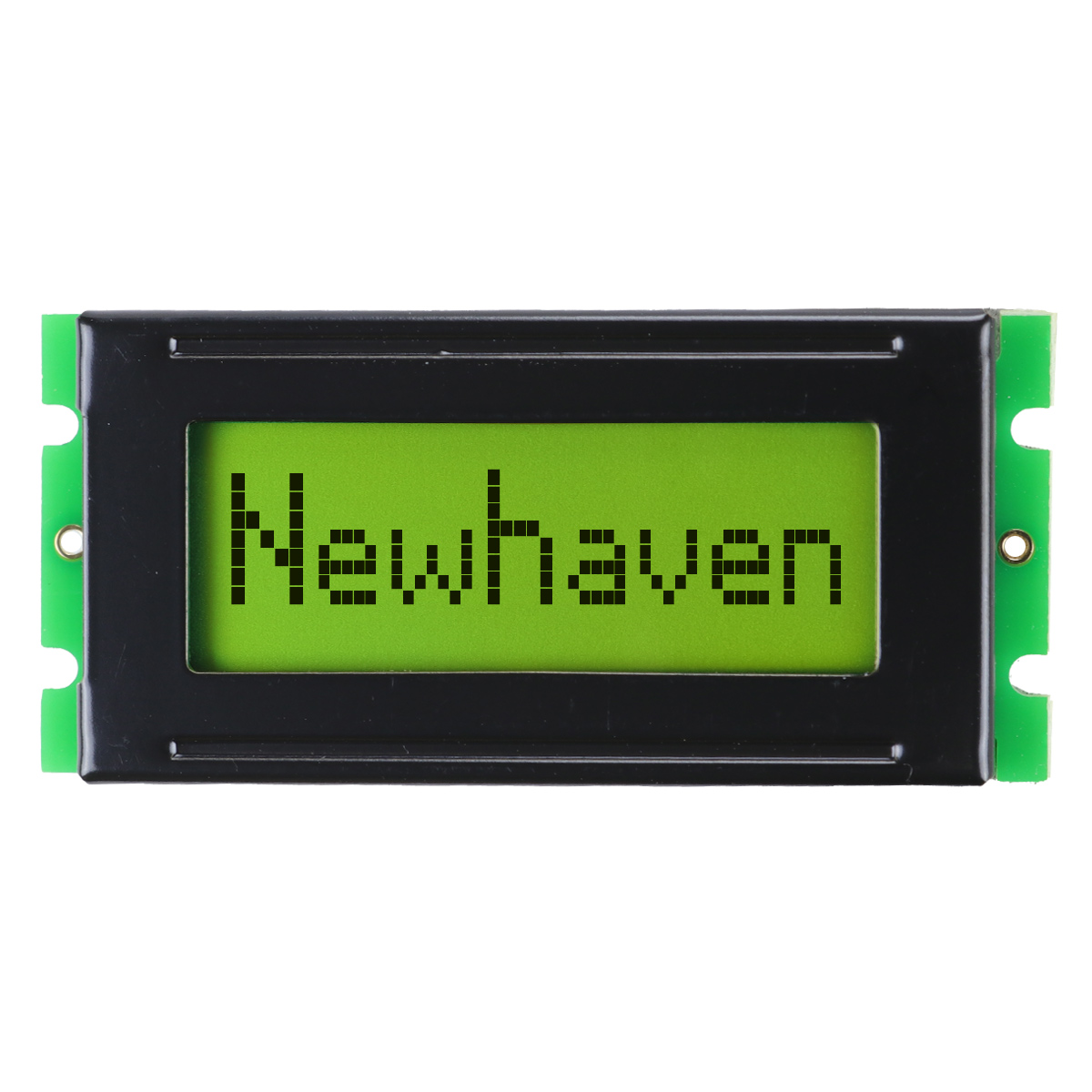

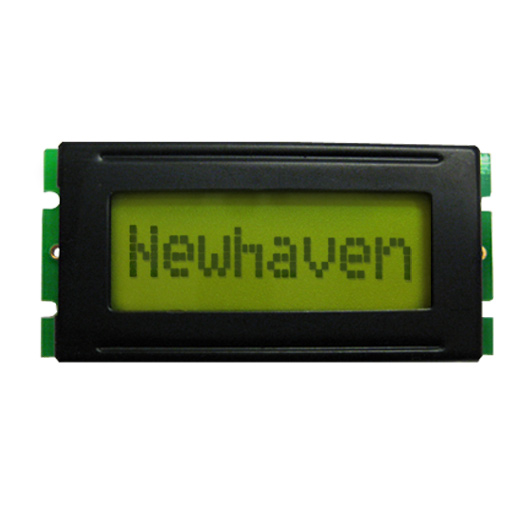

Newhaven 1 x 8 Characters Reflective LCD Character Display @ 3.3V and 8-Bit Parallel Interface with 2x7 Back Connector and SPLC780D OR ST7066U Controller. PN - NHD-0108BZ-RN-YBW-33V

$6.50

Min: 1  Mult: 1

Product Attributes

Remote Warehouse

6250 reported as of 02/06/24 Allow 2 days for transfer

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Back Light (LED)

None

Operating Temp.

(-)20 ~ (+)70

Product Photo

Click Here

Product Spec

Click Here

REACH Compliant

Yes

REACH Compliant?

Yes

NAFTA Compliant

No

Operating Temp

(-)20 ~ (+)70

VIEW

6:00

Outline Dimension

53.0 x 25.0

PACKAGING TYPE

Bulk/Tray/Box

Stock Status

Stocked

Step File Links

Click Here

Registerable

Yes

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

LEAD(Pb) FREE

Yes

CAGE CODE

7XUK2

Character Size CH x CW

7.10 x 3.40

Connector Type

2x7 Back

Controller

SPLC780D OR ST7066U

Data Links

Click Here

Display Format

1 x 8 Characters

Display Mode

Reflective

Display Type

STN-Y/G

Voltage Supply

3.3 V

Image Links

Click Here

Interface

8-Bit Parallel

Is Dry Pack Required?

No

LEAD TIME (WEEKS)

14-16

Is Part STATIC Sensitive

Yes

Is Part LEAD(Pb) FREE

Yes

Dry Pack Required

No

STATIC Sensitive

Yes

Step File Name

www.newhavendisplay.com/docs/STEPFiles/NHD-0108BZ.zip

Status

Stocked
