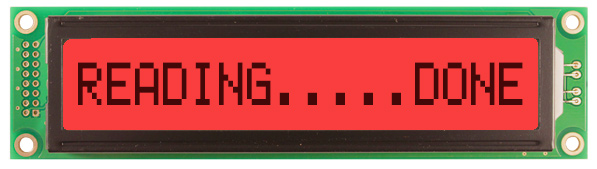

NHD-0116GZ-FSR-FBW

Newhaven | LCD Character | 1x16 Character LCD
yellow-timer-icon Factory Lead Time: 105
onlycheckmark RoHs Compliant
Newhaven 1 x 16 Characters Transflective LCD Character Display @ 5V and 8-Bit Parallel Interface with 2x8 Left Connector and SPLC780D OR ST7066U Controller. PN - NHD-0116GZ-FSR-FBW

$16.90

Min: 100  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

0 reported as of 08/01/22 Allow 2 days for transfer

Product Photo

Click Here

REACH Compliant

Yes

Operating Temp.

(-)20 ~ (+)70

Product Spec

Click Here

Operating Temp

(-)20 ~ (+)70

Outline Dimension

151.0 x 40.0

PACKAGING TYPE

Bulk/Tray/Box

NAFTA Compliant

No

Back Light (LED)

Red

REACH Compliant?

Yes

Registerable

Yes

Step File Links

Click Here

Stock Status

Non-Stocked

VIEW

6:00

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

LEAD(Pb) FREE

Yes

CAGE CODE

7XUK2

Character Size CH x CW

14.54 x 6.00

Connector Type

2x8 Left

Controller

SPLC780D OR ST7066U

Data Links

Click Here

Display Format

1 x 16 Characters

Display Mode

Transflective

Display Type

FSTN (+)

Voltage Supply

5 V

Image Links

Click Here

Interface

8-Bit Parallel

Is Dry Pack Required?

No

LEAD TIME (WEEKS)

14-16

Is Part STATIC Sensitive

Yes

Is Part LEAD(Pb) FREE

Yes

Dry Pack Required

No

STATIC Sensitive

Yes

Step File Name

www.newhavendisplay.com/docs/STEPFiles/NHD-0116GZ.zip

Status

Non-Stocked

Not available at this time.
