NHD-C160100DiZ-FSW-FBW

Newhaven | CHIP-ON-GLASS Char | 160x100 Graphic COG
green-check-icon Total Stock: 2200
blue-timer-icon Drop Ship Quantity: 2200
yellow-timer-icon Factory Lead Time: 105
onlycheckmark RoHs Compliant

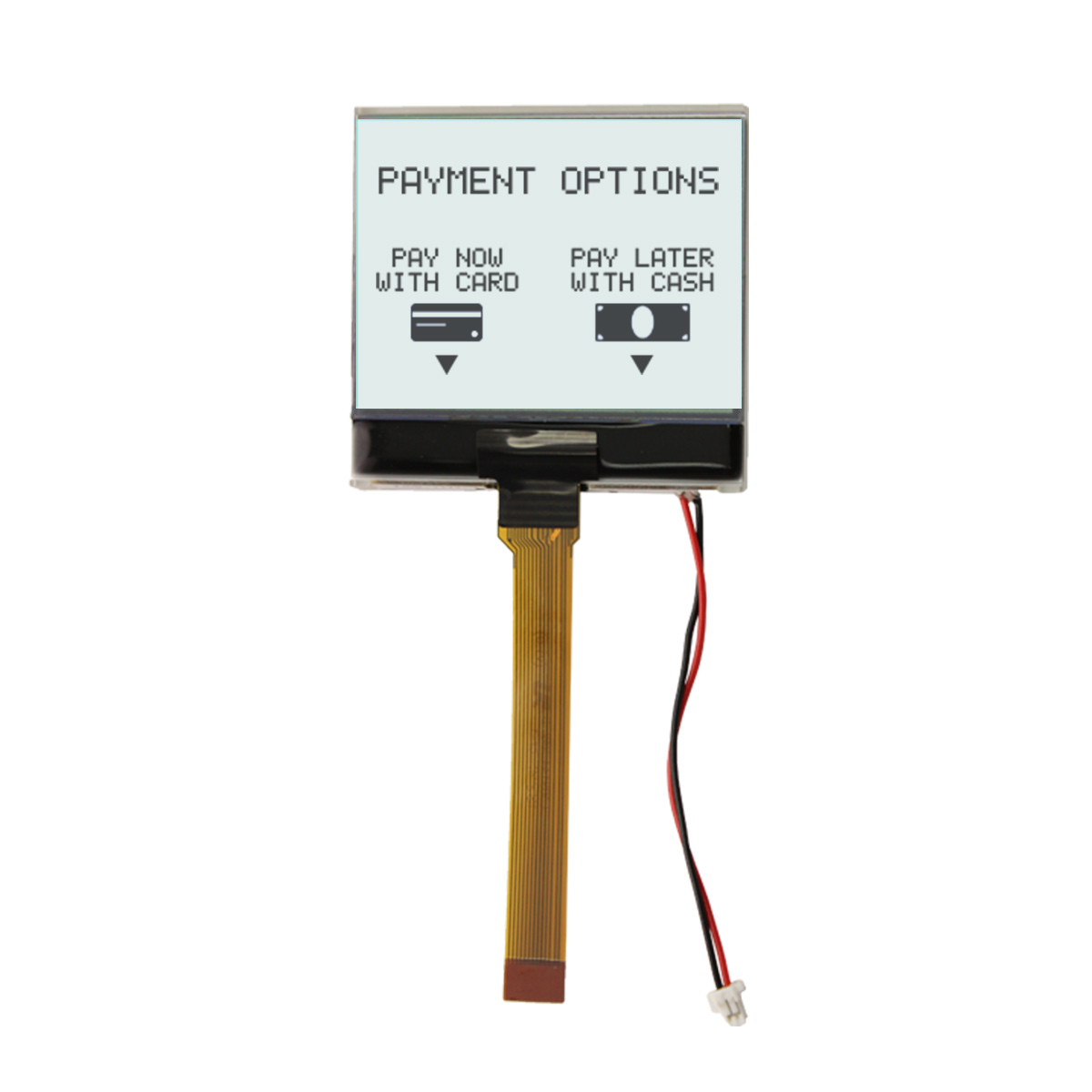

Newhaven 160 x 100 Pixels Transflective Chip on Glass- Graphic @ 3V and I2C Interface with 14-Pin FPC Connector and ST-7528i Controller. PN - NHD-C160100DiZ-FSW-FBW

$24.70

Min: 1  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

2600 reported as of 02/06/24 Allow 2 days for transfer

REACH Compliant

Yes

Operating Temp.

(-)20 ~ (+)70

Product Spec

Click Here

Product Photo

Click Here

NAFTA Compliant

No

Operating Temp

(-)20 ~ (+)70

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

Outline Dimension

50.0 x 45.0 x 4.0

PACKAGING TYPE

Bulk/Tray/Box

Voltage Supply

3 V

REACH Compliant?

Yes

Registerable

Yes

Step File Links

Click Here

Stock Status

Stocked

VIEW

6:00

LEAD(Pb) FREE

Yes

LEAD TIME (WEEKS)

15

CAGE CODE

7XUK2

Connector Type

14-Pin FPC

Controller

ST-7528i

Data Links

Click Here

Display Format

160 x 100 Pixels

Display Mode

Transflective

Display Type

FSTN (+)

Back Light (LED)

White

Is Part STATIC Sensitive

Yes

Is Part LEAD(Pb) FREE

Yes

Is Dry Pack Required?

No

Image Links

Click Here

Interface

I2C

STATIC Sensitive

Yes

Dry Pack Required

No

Step File Name

http://www.newhavendisplay.com/docs/STEPFiles/NHD-C160100DiZ.zip

Status

Stocked

Display Screen Size.

160 x 100 Pixels

Family.

Model DiZ

Polarizer.

Transflective

Backlight.

White

Display Mode.

FSTN

View Angle.

6:00 O'clock

Operating Temperature.

Wide -20C to +70C

Special (x)

None
