NHD-12864AZ-FL-YBW

Newhaven | Graphic LCD | 128x64 LCD Graphic
green-check-icon Total Stock: 5
yellow-timer-icon Factory Lead Time: 126
onlycheckmark RoHs Compliant

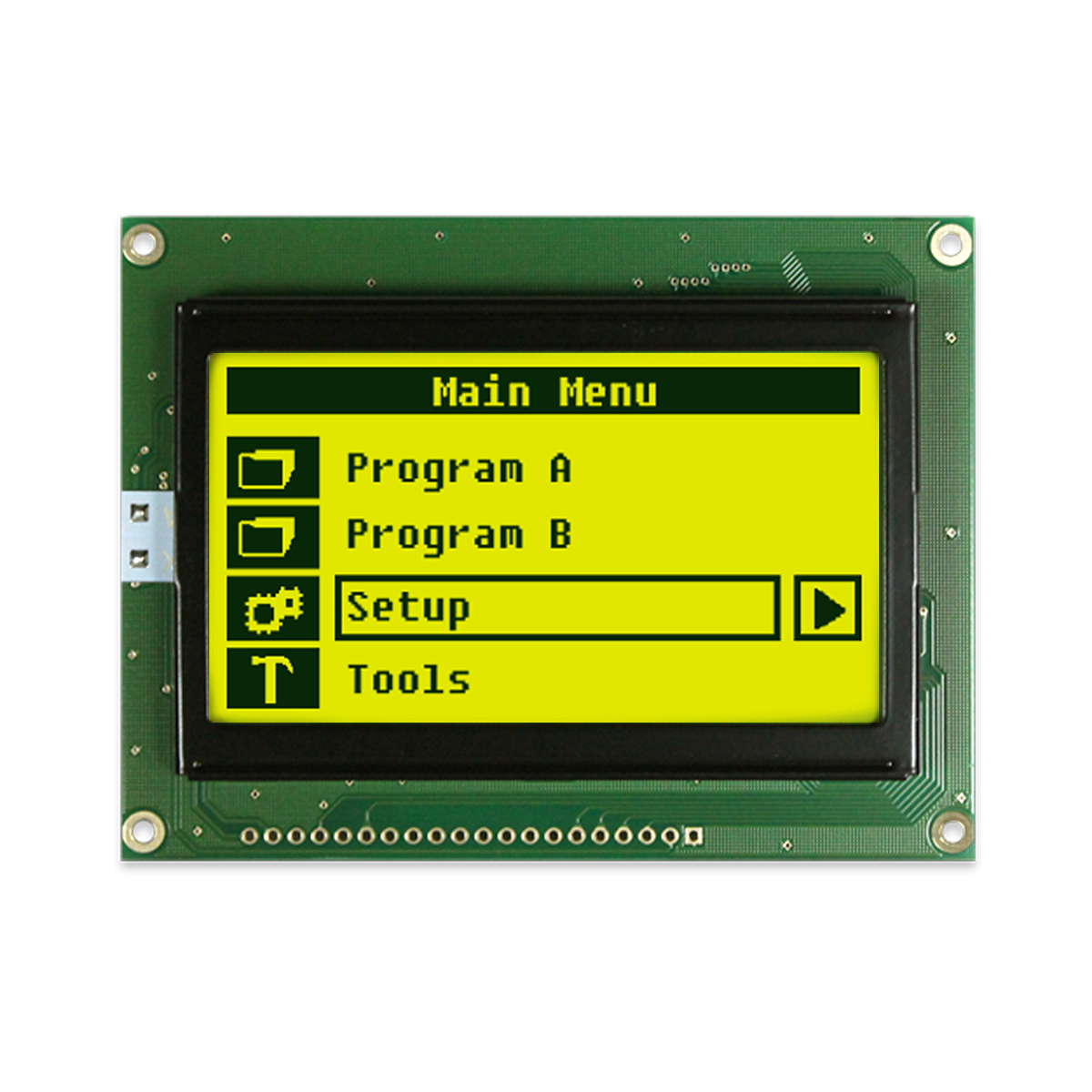

Newhaven 128 x 64 Pixels Transflective LCD Graphic Display @ 5V and 8-Bit Parallel Interface with 1x20 Bottom Connector and KS0108 Controller. PN - NHD-12864AZ-FL-YBW

$25.60

Min: 100  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

0 reported as of 09/07/21 Allow 2 days for transfer

Product Photo

Click Here

REACH Compliant

Yes

Operating Temp.

(-)20 ~ (+)70

Product Spec

Click Here

Operating Temp

(-)20 ~ (+)70

Outline Dimension

93.0 x 70.0

PACKAGING TYPE

Bulk/Tray/Box

NAFTA Compliant

No

Back Light (LED)

Yellow/Green- LED

REACH Compliant?

Yes

Registerable

Yes

Step File Links

Click Here

Stock Status

Non-Stocked

VIEW

6:00

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

CAGE CODE

7XUK2

Connector Type

1x20 Bottom

Controller

KS0108

Data Links

Click Here

Display Format

128 x 64 Pixels

Display Mode

Transflective

Display Type

STN- Y/G

Voltage Supply

5 V

Image Links

Click Here

Interface

8-Bit Parallel

Is Dry Pack Required?

No

Is Part LEAD(Pb) FREE

Yes

LEAD(Pb) FREE

Yes

LEAD TIME (WEEKS)

18

Is Part STATIC Sensitive

Yes

Dry Pack Required

No

STATIC Sensitive

Yes

Step File Name

www.newhavendisplay.com/docs/STEPFiles/NHD-12864AZ.zip

Status

Non-Stocked

Not available at this time.
