NHD-C12864LZ-FSW-FBW-3V3

Newhaven | CHIP-ON-GLASS Char | 128x64 Graphic COG
yellow-timer-icon Factory Lead Time: 126
onlycheckmark RoHs Compliant

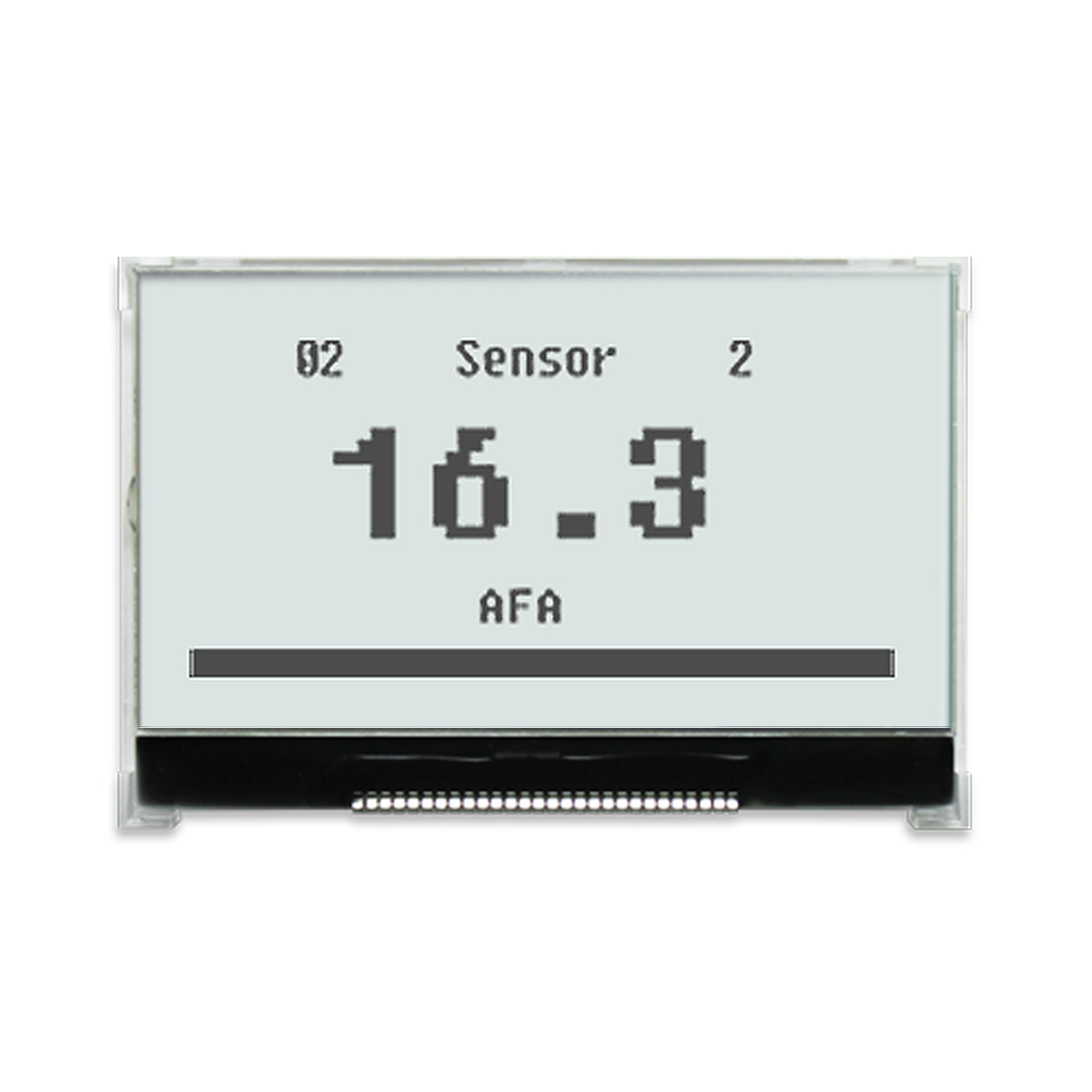

Newhaven 128 x 64 Pixels Transflective Chip on Glass- Graphic @ 3.3V and Serial/Parallel Interface with 28 Pin Connector and ST7565R-G Controller. PN - NHD-C12864LZ-FSW-FBW-3V3

$16.90

Min: 1  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

18100 reported as of 02/06/24 Allow 2 days for transfer

REACH Compliant

Yes

Operating Temp.

(-)20 ~ (+)70

Product Spec

Click Here

Product Photo

Click Here

NAFTA Compliant

No

Operating Temp

(-)20 ~ (+)70

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

Outline Dimension

77.4 x 52.4 x 6.5

PACKAGING TYPE

Bulk/Tray/Box

Voltage Supply

3.3 V

REACH Compliant?

Yes

Registerable

Yes

Step File Links

Click Here

Stock Status

Stocked

VIEW

6:00

LEAD(Pb) FREE

Yes

LEAD TIME (WEEKS)

18

CAGE CODE

7XUK2

Connector Type

28-Pin

Controller

ST7565R-G

Data Links

Click Here

Display Format

128 x 64 Pixels

Display Mode

Transflective

Display Type

FSTN (+)

Back Light (LED)

White 3 V

Is Part STATIC Sensitive

Yes

Is Part LEAD(Pb) FREE

Yes

Is Dry Pack Required?

No

Image Links

Click Here

Interface

Serial/Parallel

STATIC Sensitive

Yes

Dry Pack Required

No

Step File Name

www.newhavendisplay.com/docs/STEPFiles/NHD-C12864LZ-FSW-FBW-3V3.zip

Status

Stocked

Display Screen Size.

128 x 64 Pixels

Family.

Model LZ

Polarizer.

Transflective

Backlight.

White

Display Mode.

FSTN

View Angle.

6:00 O'clock

Operating Temperature.

Wide -20C to +70C

Special (x)

Replace with Value Sec-8 Pos-4
