NHD-C12864A1Z-FSB-FBW-HTT

Newhaven | CHIP-ON-GLASS Char | 128x64 Graphic COG
yellow-timer-icon Factory Lead Time: 126
onlycheckmark RoHs Compliant

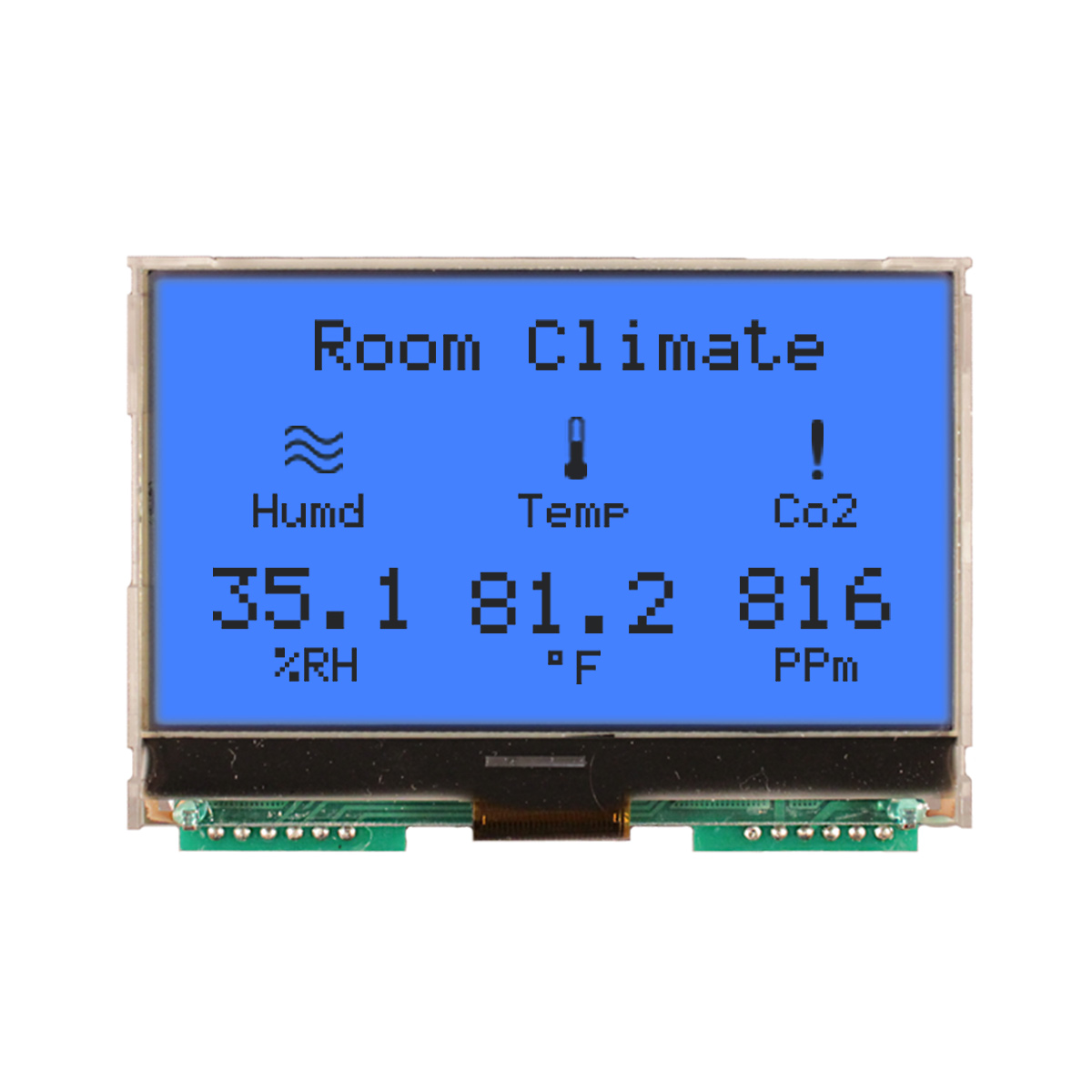

Newhaven 128 x 64 Pixels Transflective Chip on Glass- Graphic + Heater @ 3.3V and SPI Interface with 12-Pin / PCB Connector and ST-7565V Controller. PN - NHD-C12864A1Z-FSB-FBW-HTT

$27.60

Min: 1  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

625 reported as of 02/06/24 Allow 2 days for transfer

Product Photo

Click Here

REACH Compliant

Yes

Operating Temp.

(-)40 ~ (+)70

Product Spec

Click Here

Operating Temp

(-)40 ~ (+)70

Outline Dimension

80.0 x 54.0 x 10.2

PACKAGING TYPE

Bulk/Tray/Box

NAFTA Compliant

No

Back Light (LED)

Blue

REACH Compliant?

Yes

Registerable

Yes

Step File Links

Click Here

Stock Status

Stocked

VIEW

6:00

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

CAGE CODE

7XUK2

Connector Type

12-Pin / PCB

Controller

ST-7565V

Data Links

Click Here

Display Format

128 x 64 Pixels

Display Mode

Transflective

Display Type

FSTN (+)

Voltage Supply

3.3 V

Image Links

Click Here

Interface

SPI

Is Dry Pack Required?

No

Is Part LEAD(Pb) FREE

Yes

LEAD(Pb) FREE

Yes

LEAD TIME (WEEKS)

18

Is Part STATIC Sensitive

Yes

Dry Pack Required

No

STATIC Sensitive

Yes

Step File Name

http://www.newhavendisplay.com/docs/STEPFiles/NHD-C12864A1Z-FSW-FBW-HTT.zip

Status

Stocked
