NHD-2.23-12832UCB3

Newhaven | OLED Displays | 128x32 Graphic OLED
green-check-icon Total Stock: 1
yellow-timer-icon Factory Lead Time: 126
onlycheckmark RoHs Compliant

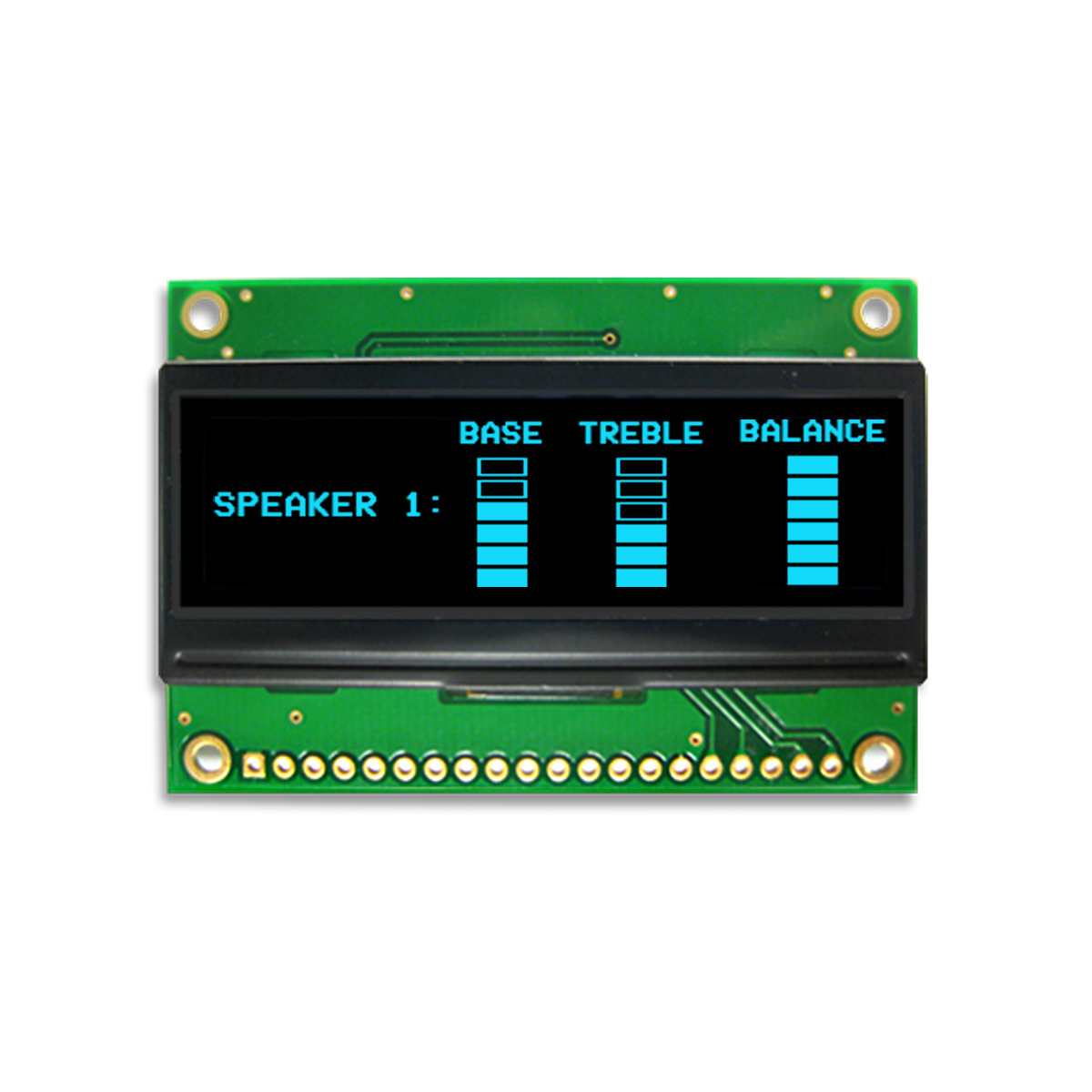

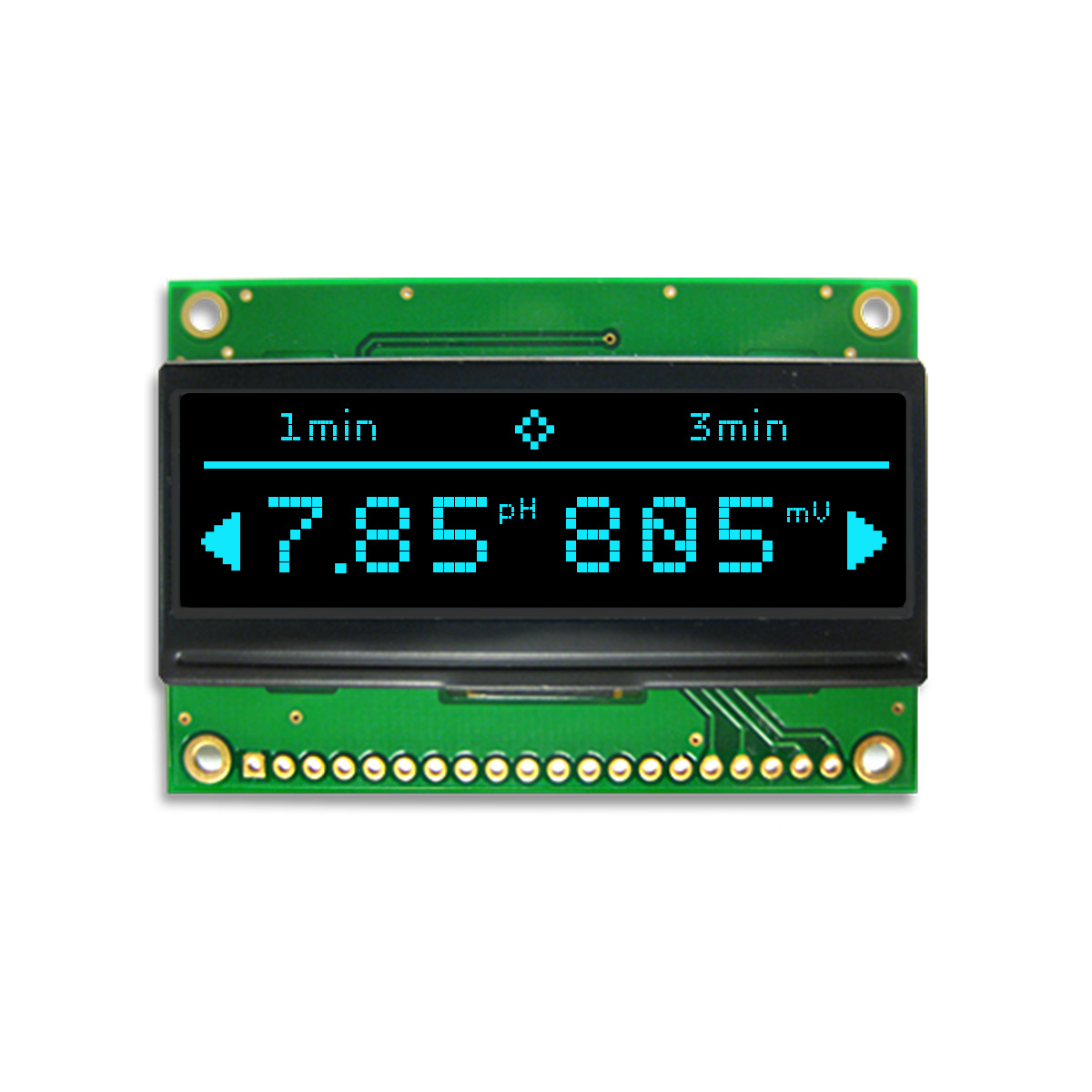

Newhaven 128 x 32 pixels Blue Graphic OLED @ 3V and 8-bit Parallel/I2C/SPI Interface with 1 x 20 Bottom Connector and SSD1305 Controller. PN - NHD-2.23-12832UCB3

$33.30

Min: 1  Mult: 1

Product Attributes

Remote Warehouse

1800 reported as of 02/06/24 Allow 2 days for transfer

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

REACH Compliant

Yes

Operating Temp.

(-)40 ~ (+)85

Product Photo

Click Here

NAFTA Compliant

No

Operating Temp

(-)40 ~ (+)85

Outline Dimension

63.2 x 43.1 x 6.0

PACKAGING TYPE

Bulk/Tray/Box

Back Light (LED)

None

REACH Compliant?

Yes

Registerable

Yes

Step File Links

Click Here

Stock Status

Stocked

VIEW

Full

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

LEAD(Pb) FREE

Yes

CAGE CODE

7XUK2

Connector Type

1 x 20 Bottom

Controller

SSD1305

Data Links

Click Here

Display Format

128 x 32 pixels

Display Mode

Blue

Display Type

OLED Display

Voltage Supply

3 V

Image Links

Click Here

Interface

8-bit Parallel/I2C/SPI

Is Dry Pack Required?

No

LEAD TIME (WEEKS)

18

Is Part STATIC Sensitive

Yes

Is Part LEAD(Pb) FREE

Yes

Dry Pack Required

No

STATIC Sensitive

Yes

Step File Name

http://www.newhavendisplay.com/docs/STEPFiles/NHD-2.23-12832U.zip

Status

Stocked
