NHD-C12832A1Z-FSW-FBW-3V3

Newhaven | CHIP-ON-GLASS Char | 128x32 Graphic COG
yellow-timer-icon Factory Lead Time: 126
onlycheckmark RoHs Compliant

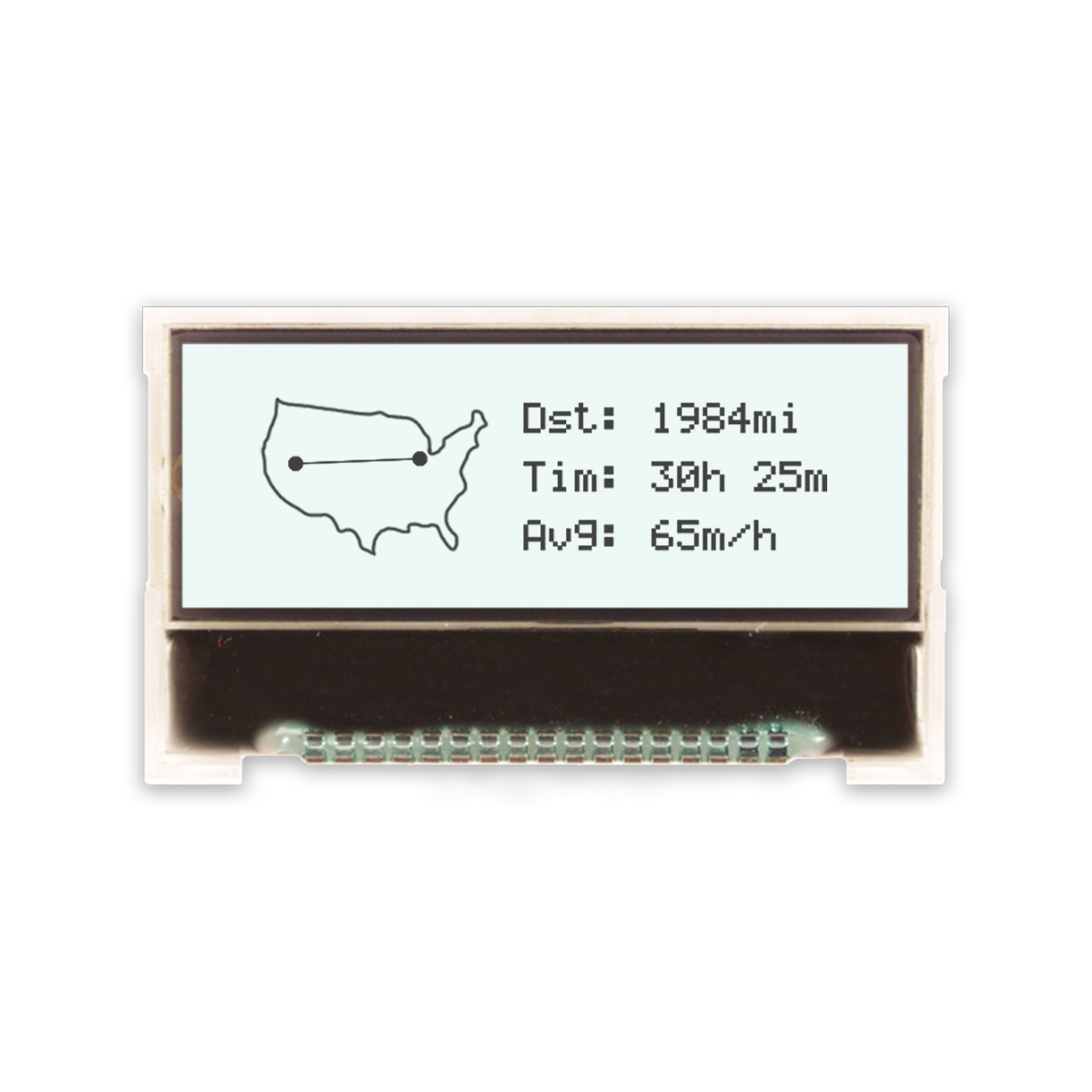

Newhaven 128 x 32 Pixels Transflective Chip on Glass- Graphic @ 3V and 4-Bit / SPI Interface with 17-Pin Connector and ST-7032 Controller. PN - NHD-C12832A1Z-FSW-FBW-3V3

$10.50

Min: 1  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

5350 reported as of 02/06/24 Allow 2 days for transfer

REACH Compliant

Yes

Operating Temp.

(-)20 ~ (+)70

Product Spec

Click Here

Product Photo

Click Here

NAFTA Compliant

No

Operating Temp

(-)20 ~ (+)70

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

Outline Dimension

41.4 x 24.3 x 4.0

PACKAGING TYPE

Bulk/Tray/Box

Voltage Supply

3 V

REACH Compliant?

Yes

Registerable

Yes

Step File Links

Click Here

Stock Status

Stocked

VIEW

6:00

LEAD(Pb) FREE

Yes

LEAD TIME (WEEKS)

18

CAGE CODE

7XUK2

Connector Type

17-Pin

Controller

ST-7032

Data Links

Click Here

Display Format

128 x 32 Pixels

Display Mode

Transflective

Display Type

FSTN (+)

Back Light (LED)

White 3 V

Is Part STATIC Sensitive

Yes

Is Part LEAD(Pb) FREE

Yes

Is Dry Pack Required?

No

Image Links

Click Here

Interface

4-Bit / SPI

STATIC Sensitive

Yes

Dry Pack Required

No

Step File Name

http://www.newhavendisplay.com/redirect.html?goto=www.newhavendisplay.com%2Fdocs%2FSTEPFiles%2FNHD-C12832A1Z.zip&action=url

Status

Stocked

Display Screen Size.

128 x 32 Pixels

Family.

Model A1Z

Polarizer.

Transflective

Backlight.

White

Display Mode.

FSTN

View Angle.

6:00 O'clock

Operating Temperature.

Wide -20C to +70C

Special (x)

Replace with Value Sec-8 Pos-4
