NHD-10.1-1024600BF-LSXP-CTP

Newhaven | IPS TFT | 10" TFT Displays
yellow-timer-icon Factory Lead Time: 126
onlycheckmark RoHs Compliant

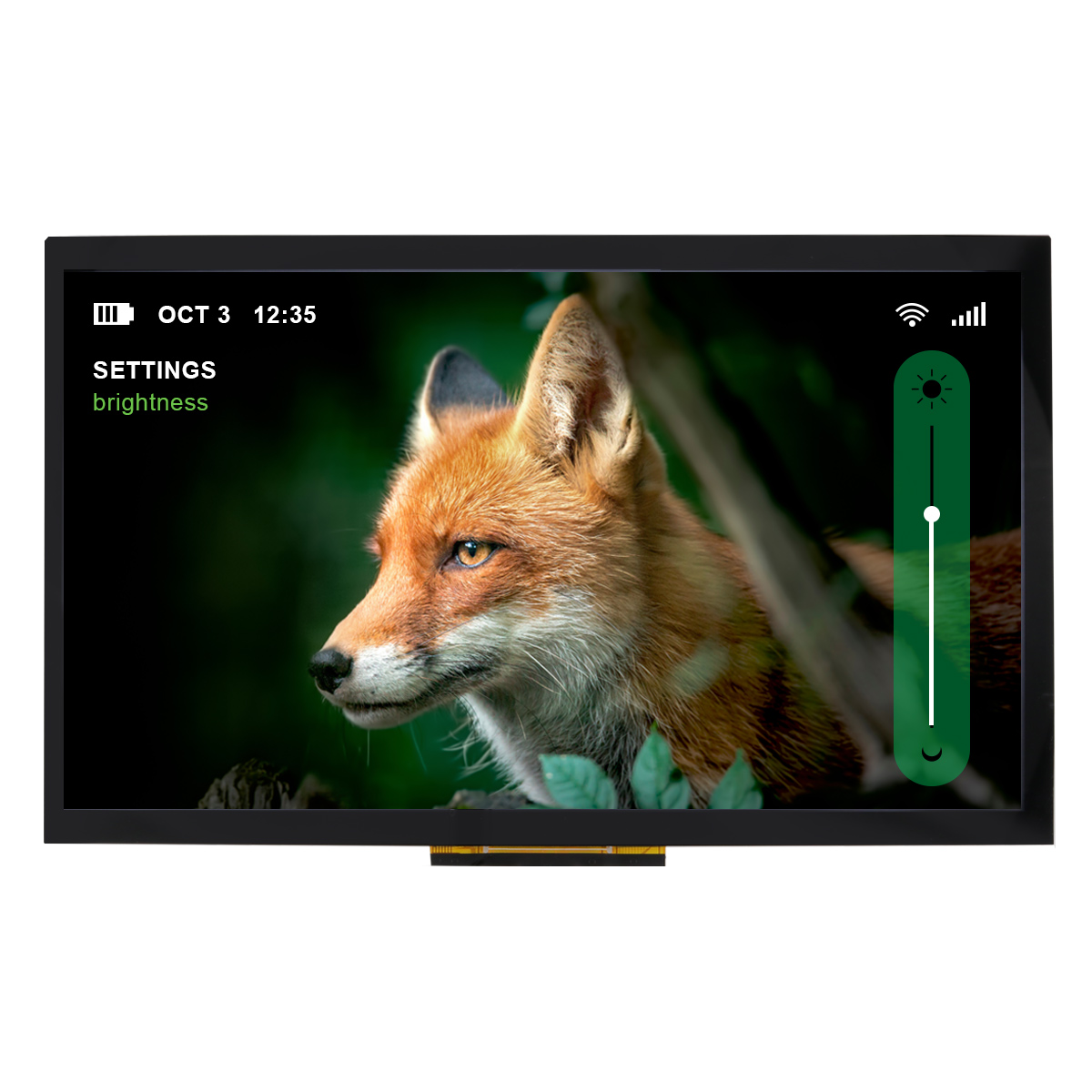

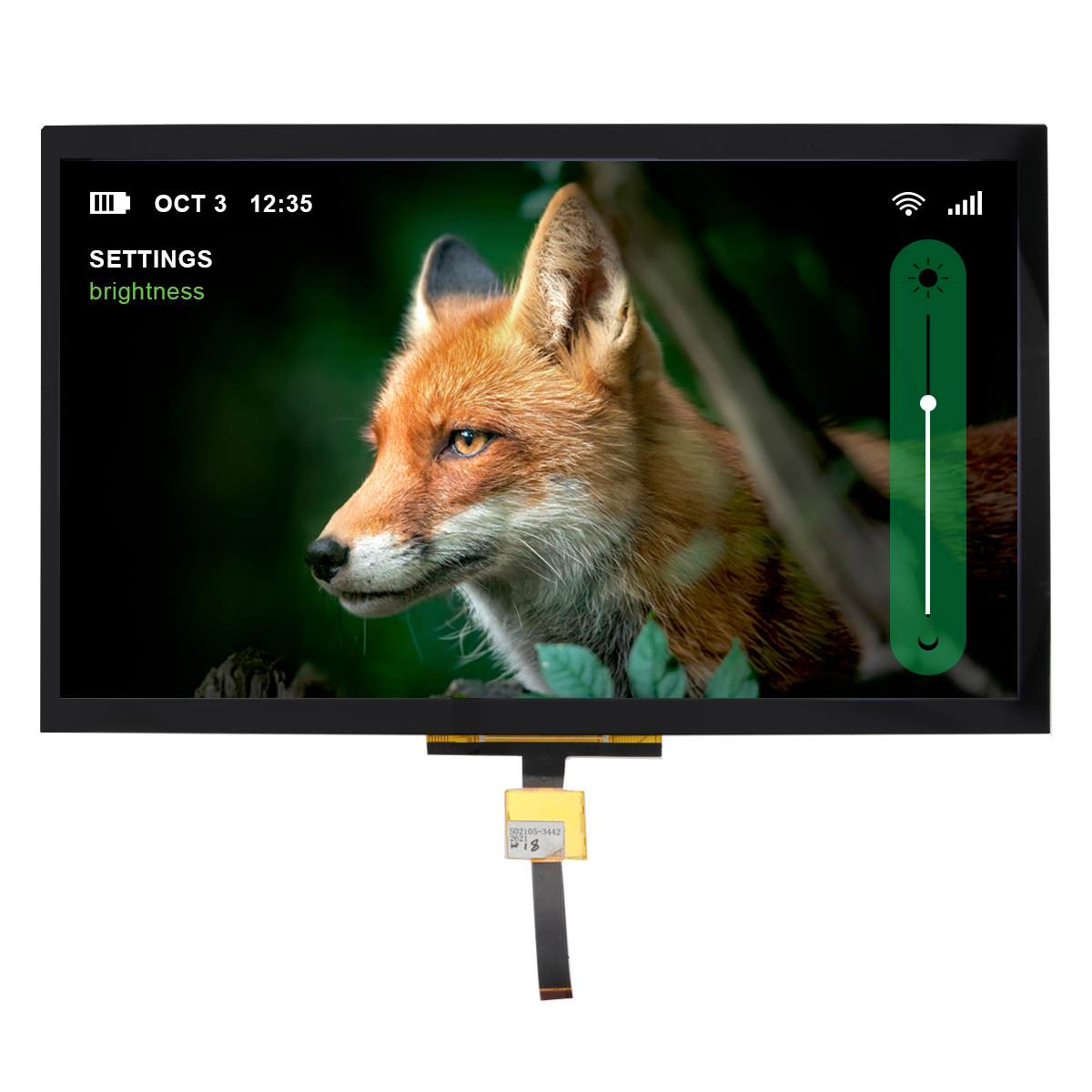

Newhaven 3.3 V Transmissive 10.1 Inch Display with 1024 x 600 Pixels 10.1" IPS TFT LVDS w/ Cap Touch [Part Number: NHD-10.1-1024600BF-LSXP-CTP ] and a LVDS Interface.

$240.80

Min: 1  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

1 reported as of 02/06/24 Allow 2 days for transfer

Product Spec

Click Here

Product Photo

Click Here

REACH Compliant

Yes

Operating Temp.

(-20C to +70C)

Size Diagonal (In)

10.1

PACKAGING TYPE

Bulk/Tray/Box

Outline Dimension

235 x 143 x 7.05

Operating Temp

(-20C to +70C)

Back Light (LED)

680 cd/m²

REACH Compliant?

Yes

Registerable

Yes

Size Diagonal

10.1

Step File Links

Click Here

Stock Status

Stocked

VIEW

Full

NAFTA Compliant

No

MSL

Maintain in Room Temp.

CAGE CODE

7XUK2

Connector Type

40-Conductor FFC

Controller

TFT Driver IC: HX8282-A11, CTP IC: FT5526EEZ-003

Data Links

Click Here

Display Format

1024 x 600 Pixels

Display Mode

Transmissive

Display Type

IPS TFT LCD

Image Links

Click Here

Voltage Supply

3.3 V

Interface

LVDS

Is Dry Pack Required?

No

Is Part LEAD(Pb) FREE

Yes

Is Part STATIC Sensitive

Yes

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

LEAD(Pb) FREE

Yes

LEAD TIME (WEEKS)

18

Dry Pack Required

No

STATIC Sensitive

Yes

Step File Name

https://newhavendisplay.com/content/3D/NHD-10.1-1024600BF-LSXP-CTP.zip

Status

Stocked
