AC6438-112C

MOOG | AC6438 | Through Bore
yellow-timer-icon Factory Lead Time: 35
onlycheckmark RoHs Compliant
AC6438

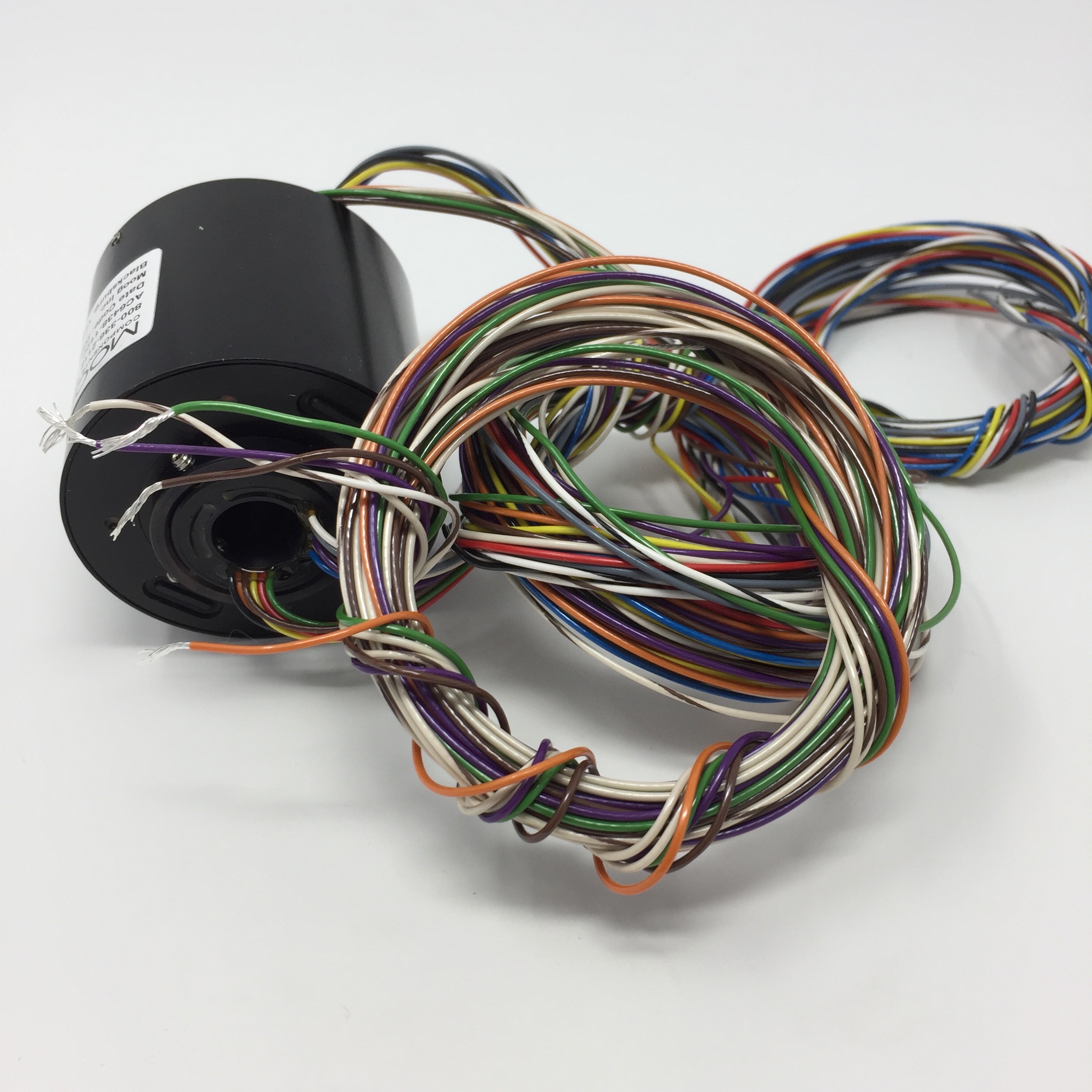

Moog 1/2 Inch Minature Through Bore Slip Ring with 12 @ 5 Amp / 240 VAC circuits using Gold Plated Rings and Unique fiber brush technology design . High-impact thermoplastic Body with Overall Dims of (2.1 Inch Dia. x 2.1 Inch Depth) and 48 Inch Lead Length. Operating Speed up to 250 RPM

$1,253.00

Min: 1  Mult: 1

Product Attributes

wires

12

5 Amp Circuits

12

Housing Material

High-impact thermoplastic

Lead Length

48

Overall Dims

(2.1 Inch Dia. x 2.1 Inch Depth)

Circuits

12 Circuits @ 5 amps

Lead Length (In)

48 Inch Leads

Bore Diameter

0.5 Inch (1/2 Inch)

Contact Material

gold

Electrical Noise

100 milliohms max

Ext. Diameter

2.1 Inch

Operating Speed

250 rpm

Operating Temp

-40C to +80C

Voltage

240 VAC

Wire awg

22 awg
