filter--iconPrice List

AC4598-18

MOOG | AC4598 | Through Bore
green-check-icon Total Stock: 5
yellow-timer-icon Factory Lead Time: 42
onlycheckmark RoHs Compliant
AC4598
AC4598

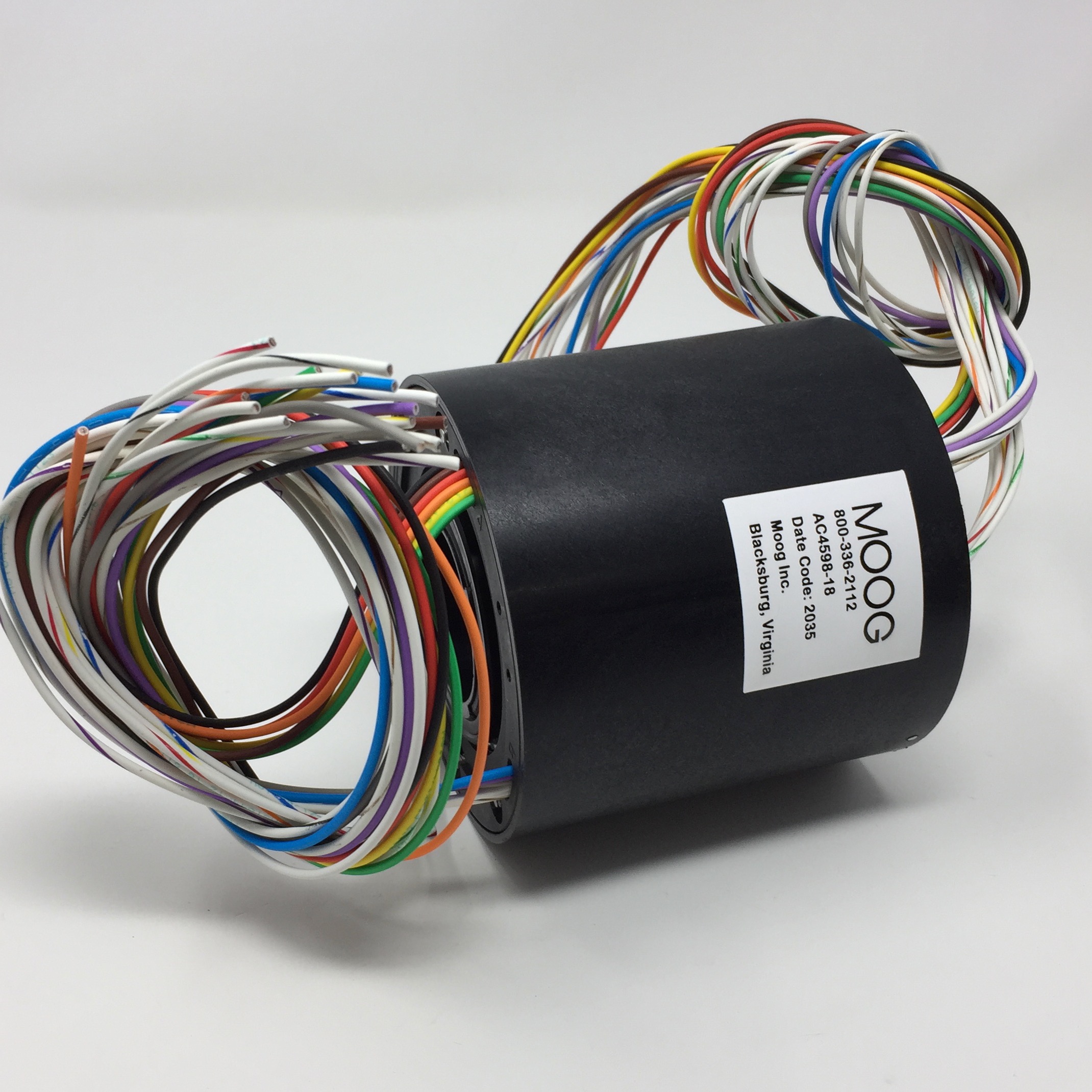

Moog 1-1/2 Inch Through Bore Slip Ring with 18 x 10 Amp / 600 VAC circuits with Unique fiber brush technology design. 12 Inch Lead Length with Operating Speed up to 250 RPM Not IP65

$1,234.00

Min: 1  Mult: 1

Product Attributes

Rings

18

Housing Material

Plastic

Lead Length

12

IP65 Sealing

Not IP65

Options

None

Circuits

18 10-amp circuits

Depth Dim

4.01 Inch

Lead Length (IN)

12 Inch Leads

Sealing Optional

Not Sealed

Electrical Noise

100 Milliohms Max

Ext Diameter

3.9 Inch

Operating Speed

250 RPM

Operating Temp

-40C to 80C

Voltage Rating

600 VAC

Wire awg

16 awg
