filter--iconPrice List

SRA-73798

MOOG | SRA | Ethernet (Capsule)
green-check-icon Total Stock: 4
yellow-timer-icon Factory Lead Time: 999
onlycheckmark RoHs Compliant

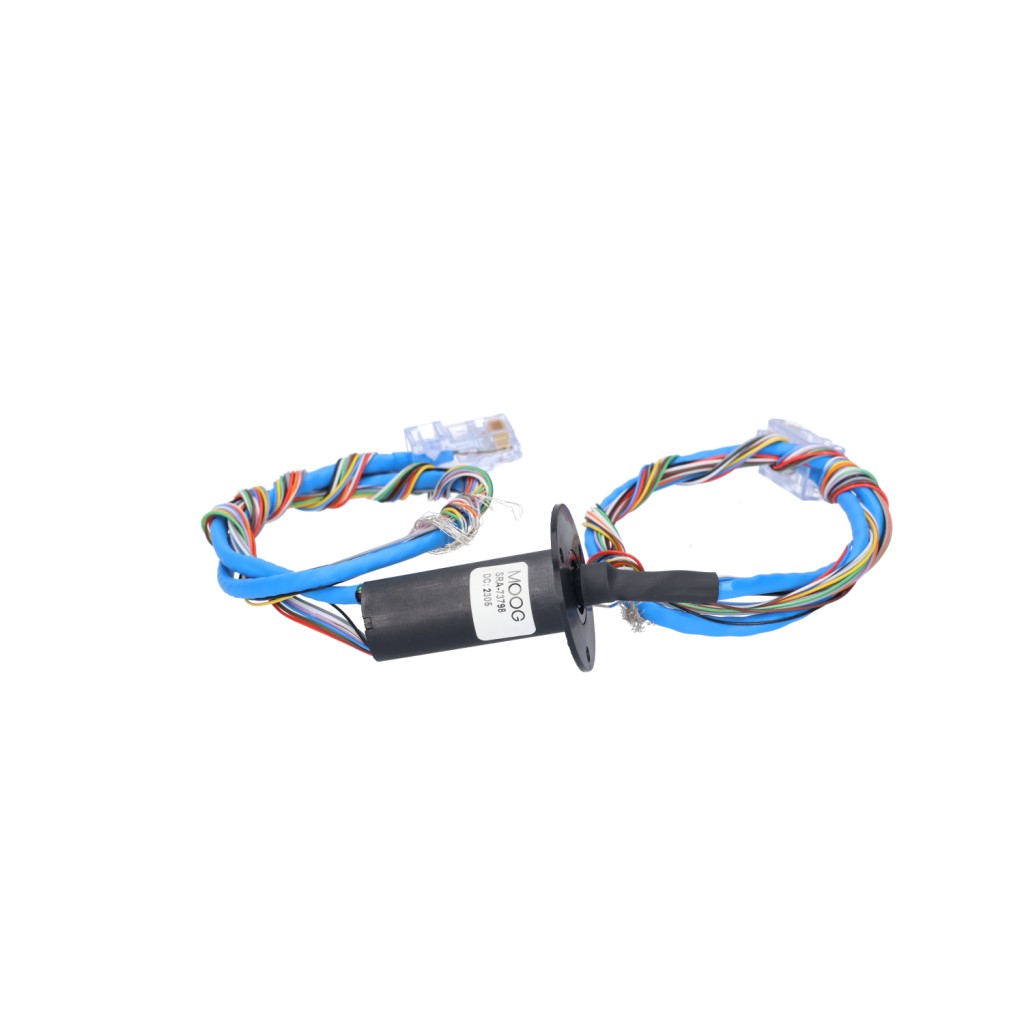

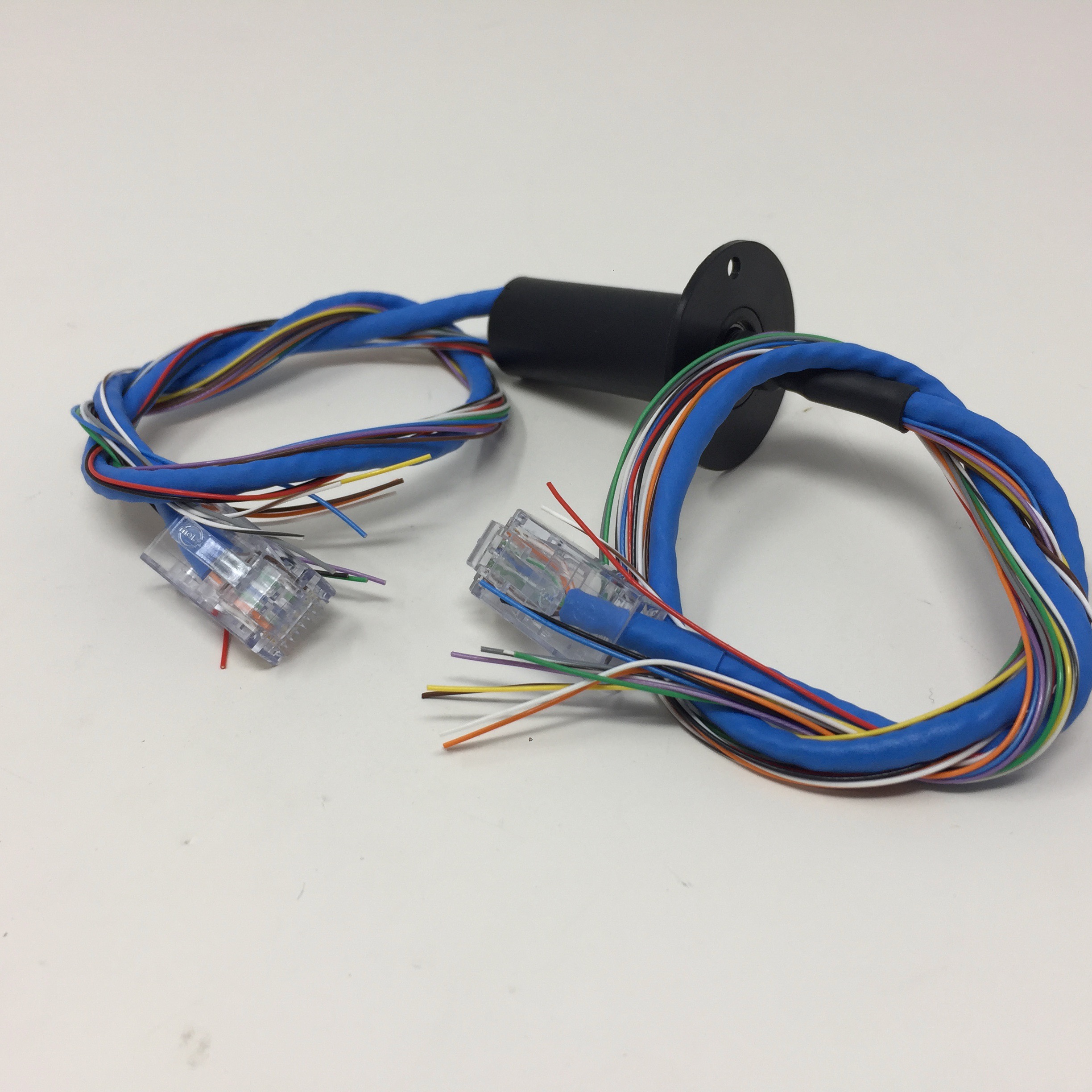

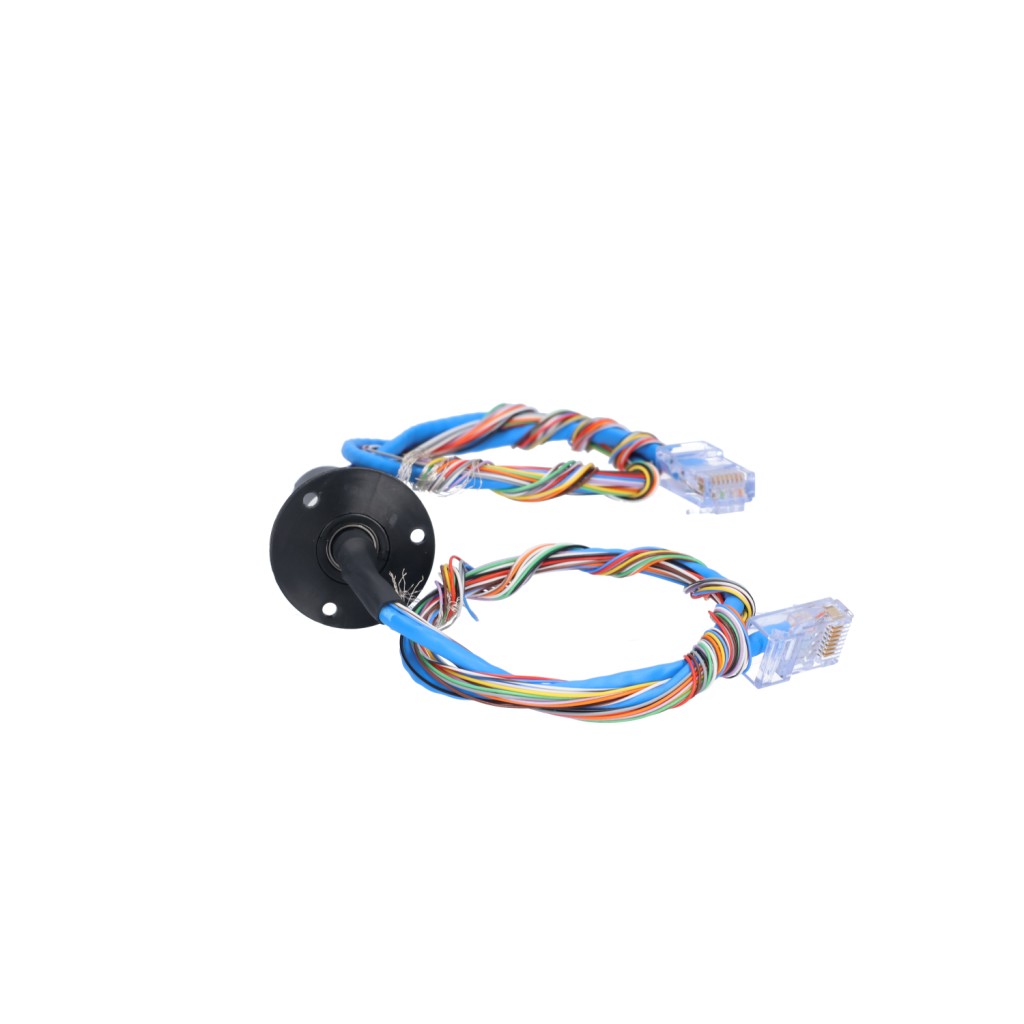

MOOG Mini Capsule Ethernet Slip Ring with 1 @ 1000BaseT Gigabit & 2 @ 2 Amp circuits and 3 Inch leads. Capsule diameter of 0.610 and length of 1.56. Rated for upto 250 RPM.

$477.00

Min: 1  Mult: 1

Product Attributes

Additional Circuits

2 x 2 amp contacts Voltage 240 VAC

Operating Speed

250 rpm continuous

Lead lengths

12 inches

Temperature Range

-40°C to +80°C

Ethernet Connections

1000BaseT Circuit

Current Rating

2 Amps Per Circuit

Contact Material

Gold-on-gold

Rings

3

Lead Length

12

Capsul Diameter

1.25

RPM Rating

250

Circuit Notes

1 @ 1000BaseT Gigabit & 2 @ 2 Amp

Flange Diameter

1.25

Not available at this time.
