AC6023-24

MOOG | AC6023 | Capsule
green-check-icon Total Stock: 55
yellow-timer-icon Factory Lead Time: 35
onlycheckmark RoHs Compliant
AC6023
AC6023

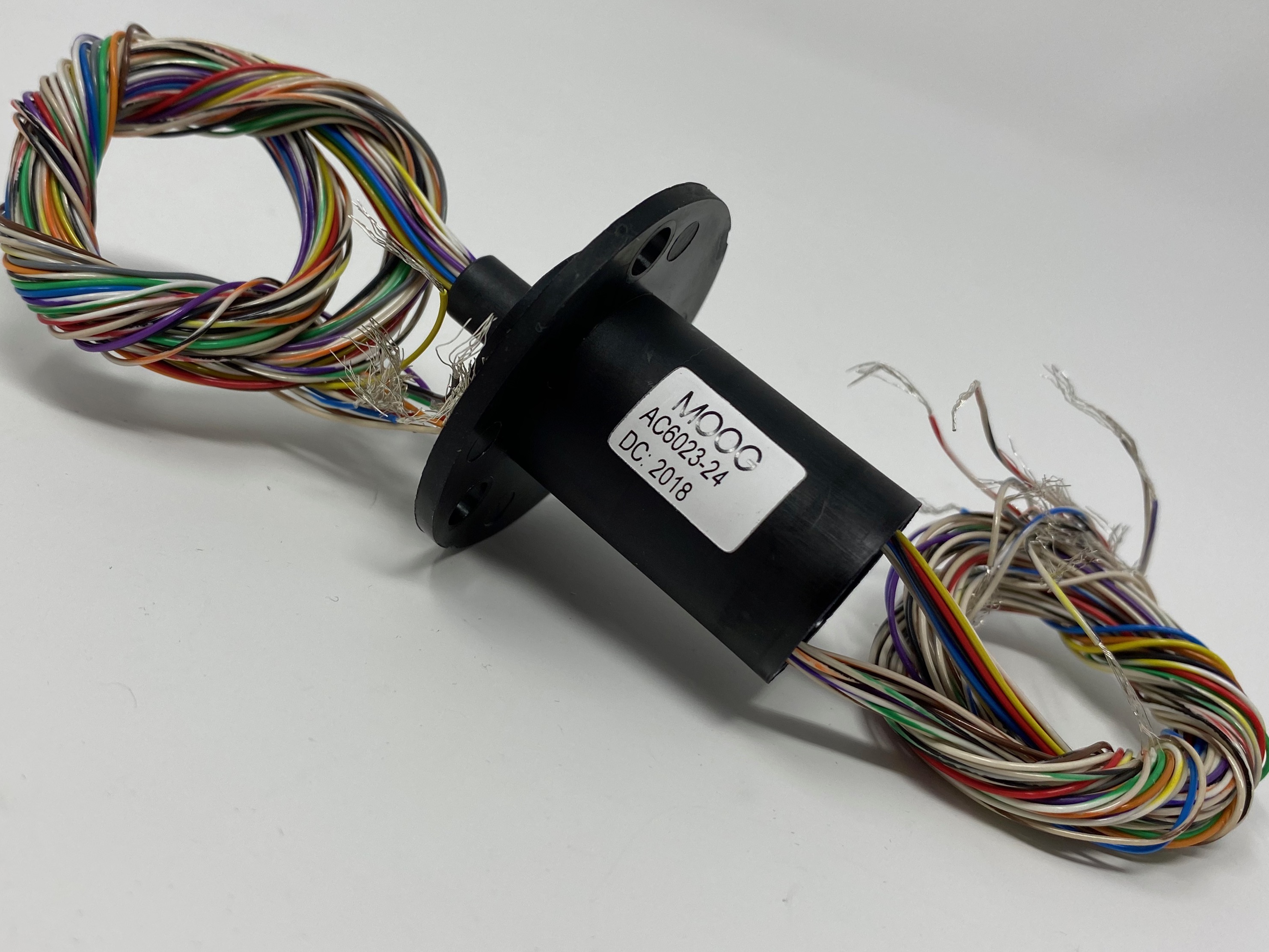

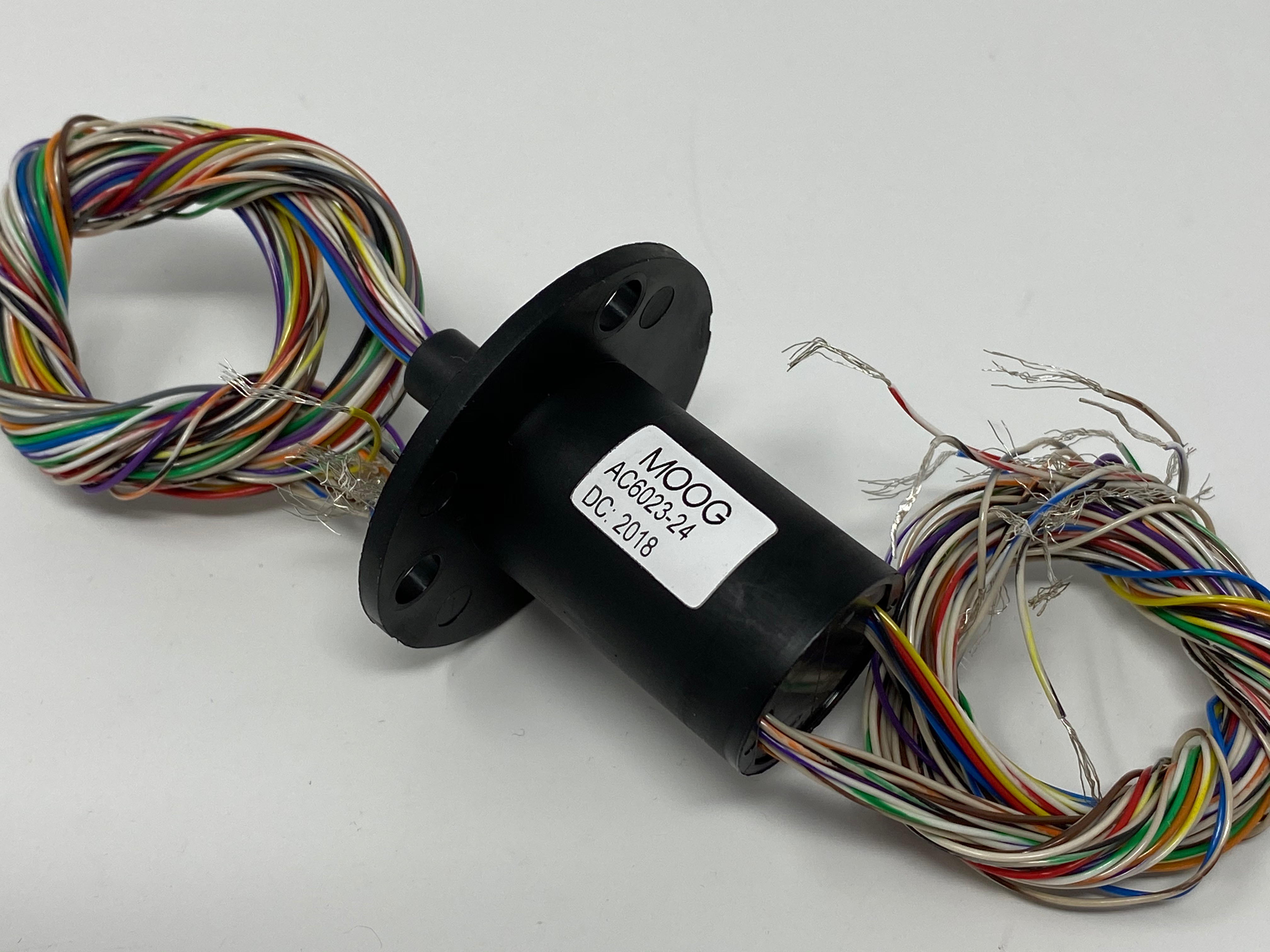

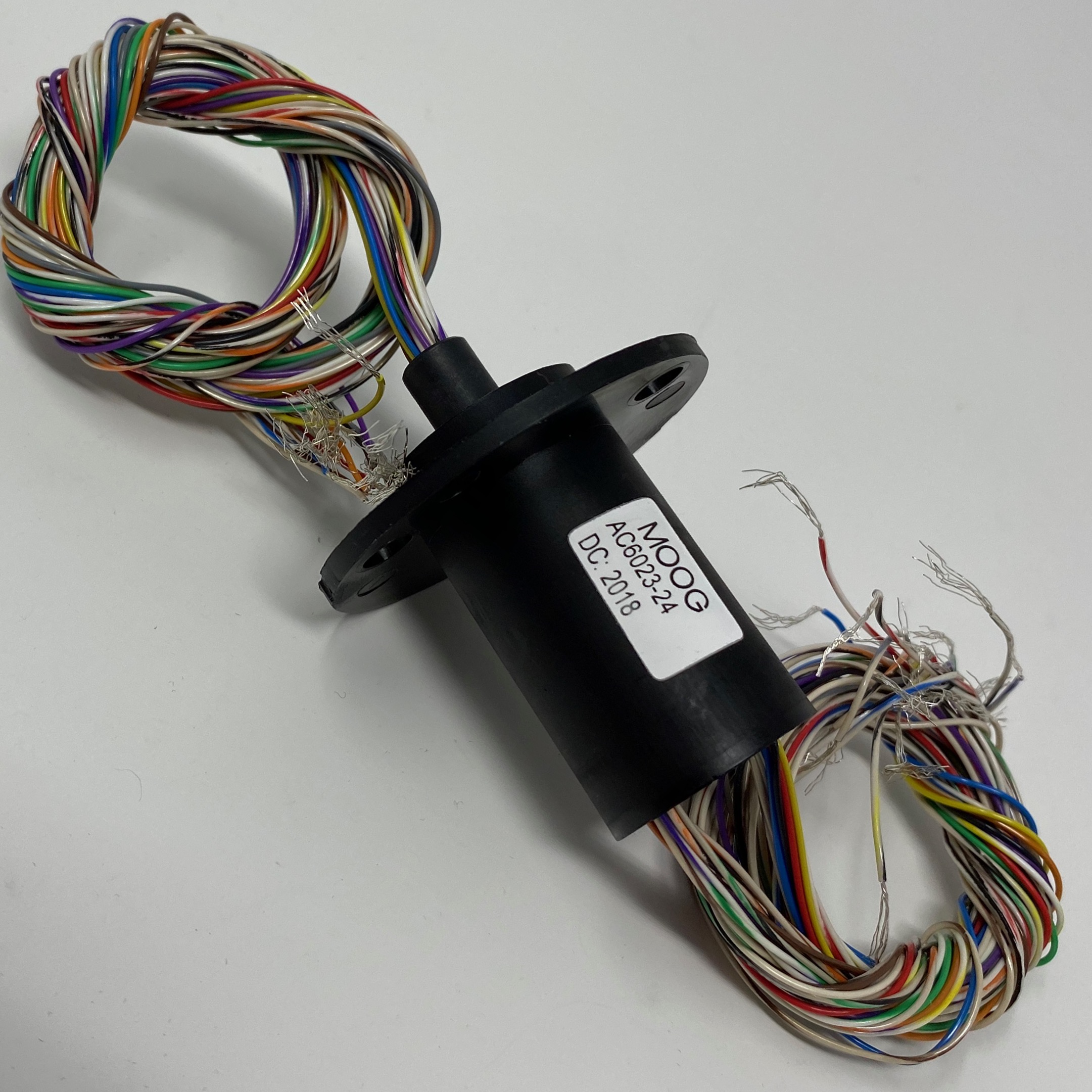

Moog Compact Capsule Slip Ring with 24 x 2 Amp / 240 VAC circuits. Precision ball bearings design. 12 Inch Lead Length with Plastic Flanged Housing and Gold Contacts. Operating Speed up to 250 RPM (updated 4/4/23)

$305.00

Min: 1  Mult: 1

Product Attributes

Rings

24

Housing Material

Plastic

Lead Length

48

Dust Seal

No

Flanged

Flanged

Circuits

24 Circuits

Wire Length

48 Inch Leads

Sealed

Not Sealed

Attributes for sub

AC6023-24C (MOOG)

Contact Material

Gold

Wire Type

ET Teflon

Wire Gauge

28 (7/36)

Voltage

240 VAC

Temperature Range

-40C to +80C

Operating Speed

250 RPM

Electrical Noise

60 Milliohms

Diameter

0.87 Inch

Current Rating

2 Amps Per Circuit
