Product Attributes

Capacity

250VA

Short Description

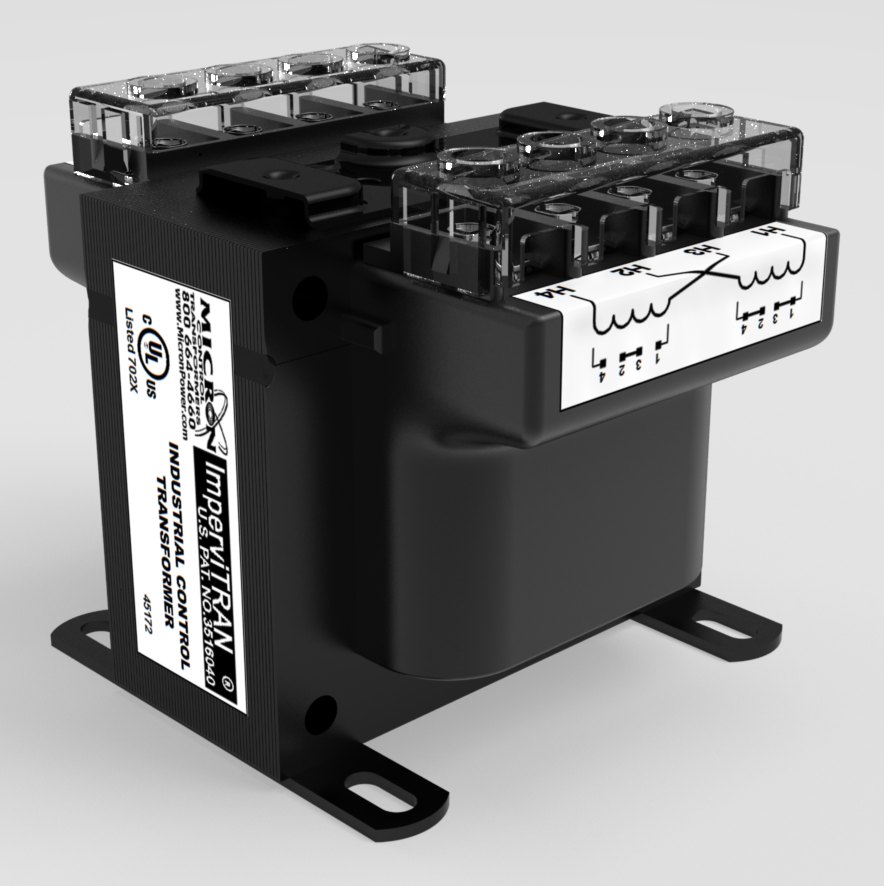

Control Transformer 250VA 690VAC to 120x240VAC

Standard Box Height (inch)

4.75

Standard Box Length (inch)

7.25

Standard Box Width (inch)

5.5

Temperature Class

130C

Terminals

4

Triple rate/Standard/Universal

Standard

VA

250

Warranty

20 Year

Secondary Voltage (Nominal)

120x240

Secondary Voltage

120X240

Enclosure

Encapsulated

Hz

50/60

Lbs with packaging

9.8

Manufacturer

Micron Industries Corporation

Mounting Type

Panel

Primary Voltage

690

Primary Voltage (Nominal)

690

Product Certifications

Non UL, Non CSA

Product Type

Control Transformer

Winding Material

Copper

Not available at this time.
