B1K5BTZ13RBF

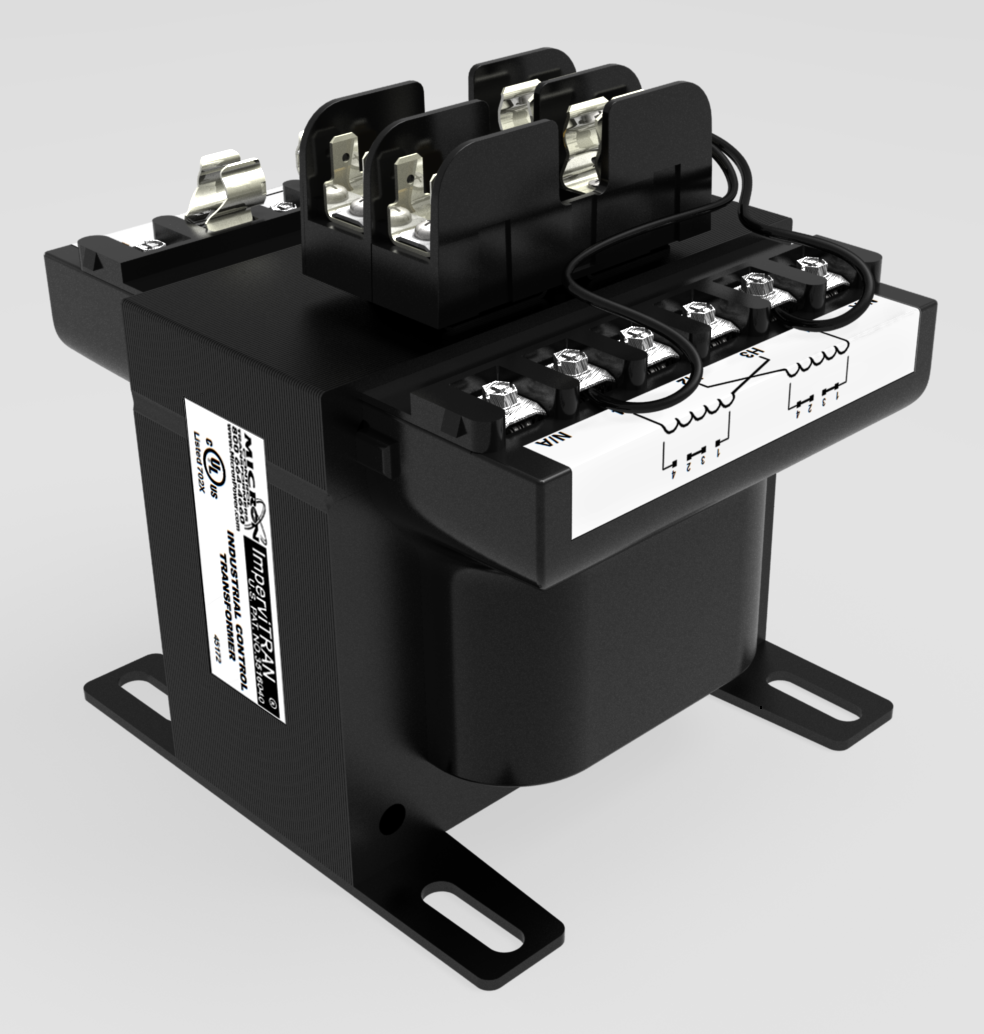

Micron Industries | 6T Dual Fusing | Power chassis Mount
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
Control Transformer, 1.5KVA, Input Voltage 220x440/230x460/240x480VAC, Output Voltage 110/115/120VAC, 50/60 Hz, Temperature Class 130C, Dual Class CC Primary Fuse Block and Secondary Fuse Clips, UL/cUL

$402.10

Min: 1  Mult: 1

Product Attributes

Capacity

1.5KVA

Short Description

Control Transformer 1.5KVA 230x460VAC to 115VAC

Standard Box Height (inch)

10.75

Standard Box Length (inch)

10.5

Standard Box Width (inch)

10.5

Temperature Class

130C

Terminals

6

Triple rate/Standard/Universal

Triple Rated

VA

1500

Warranty

20 Year

Secondary Voltage (Nominal)

115

Secondary Voltage

110/115/120

Product Type

Control Transformer

Enclosure

Encapsulated

Fusing

Dual Class CC Primary Fuse Block and Secondary Fuse Clips

Hz

50/60

Lbs with packaging

53.58

Manufacturer

Micron Industries Corporation

Mounting Type

Panel

Primary Voltage

240x480, 230x460, 220x440

Primary Voltage (Nominal)

230x460

Product Certifications

UL/cUL Listed File #E46323

Winding Material

Copper

Not available at this time.
