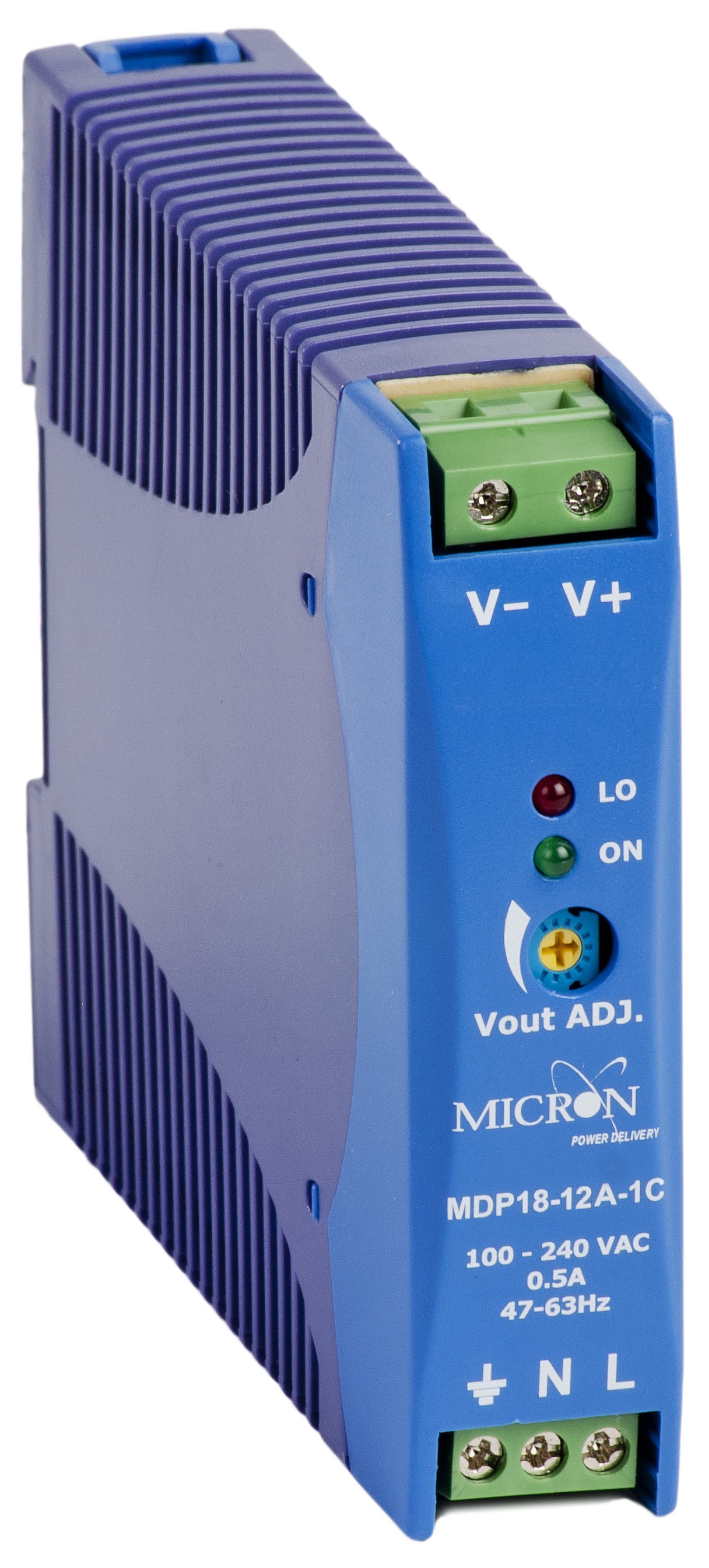

MDP18-12A-1C

Micron Industries | Din-Rail | Din Rail
green-check-icon Total Stock: 4
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
Power Supply, Din Rail Mount, Plastic Case, Output 18W x 12VDC, Input 90-264VAC, 1-Phase, 22.5MM Width, UL 508/60950, cUL, CE EN61000, UL 1604/ISA 12.12.01 Class 1&2 DIV 2, UL 1310 Class 2

$29.60

Min: 1  Mult: 1

Product Attributes

OVERALL Dims

(4.49 x 0.89 x 3.60)

Brand

DINergy

Style

Standard

Standards

UL / cUL: UL 508 Listed, UL 60950-1 & UL 1310 Class 2 Recognized, ISA 12.12.01 (Class 1, Division 2, Groups A, B, C & D), CE to EN61000

Short Description

DC Power Supply 10.8-13.8VDC

Product Type

DC Power Supply

Phase

1

Peak Current (A)

1.80

Output Voltage Range (VDC)

10.8-13.8

Output Voltage (VDC)

12

Output Power (Watts)

18

Output Current Range (A)

1.67-1.30

Output Current (A)

1.5

Mounting Style

Din Rail Mount

Input Voltage VDC

120-375

Input Voltage VAC

90-264

Hz

47-63

Case Type

Plastic Case

Warranty

3 Years

Not available at this time.
