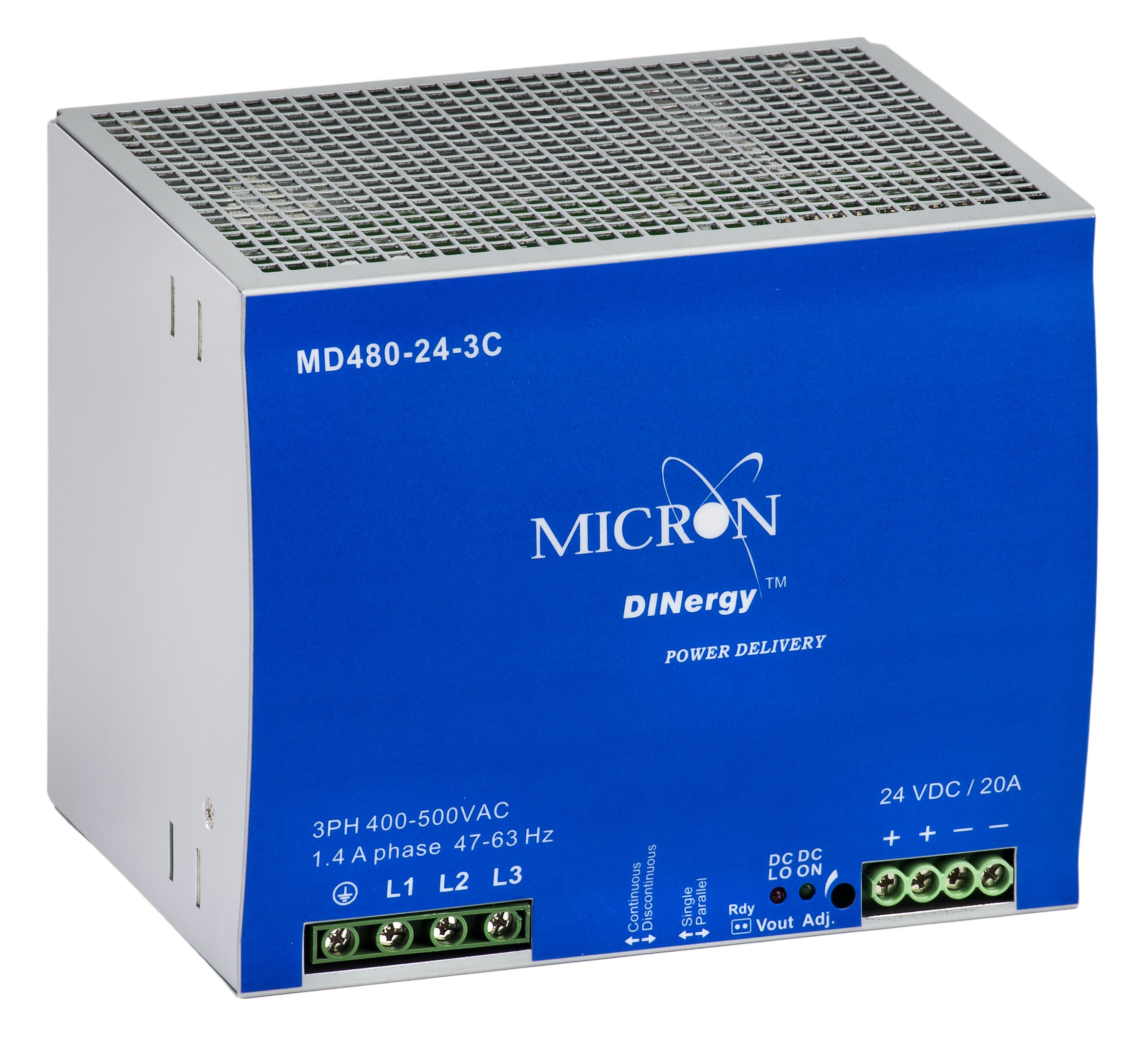

MD480-24-3C

Micron Industries | Din-Rail | Din Rail
green-check-icon Total Stock: 1
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
Power Supply, Din Rail Mount, Metal Case, Output 480W x 24VDC, Input 340-575VAC, 3-Phase, 150MM Width, UL 508/60950, cUL, CE EN61000, UL 1604/ISA 12.12.01 Class 1&2 DIV 2

$182.10

Min: 1  Mult: 1

Product Attributes

OVERALL Dims

(4.41 x 5.91 x 4.88)

Brand

DINergy

Style

Standard

Standards

UL / cUL: UL 508 Listed, UL 60950-1 Recognized, ISA 12.12.01 (Class 1, Division 2, Groups A, B, C & D), CE to EN61000

Short Description

DC Power Supply 22.5-28.5VDC 3-phase

Product Type

DC Power Supply

Phase

3

Peak Current (A)

27.00

Output Voltage Range (VDC)

22.5-28.5

Output Voltage (VDC)

24

Output Power (Watts)

480

Output Current Range (A)

21.33-16.84

Output Current (A)

20

Mounting Style

Din Rail Mount

Input Voltage VDC

480-820

Input Voltage VAC

340-575

Hz

47-63

Case Type

Metal Case

Warranty

3 Years
