MD240-24A-1C

Micron Industries | Din-Rail | Din Rail
green-check-icon Total Stock: 2
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

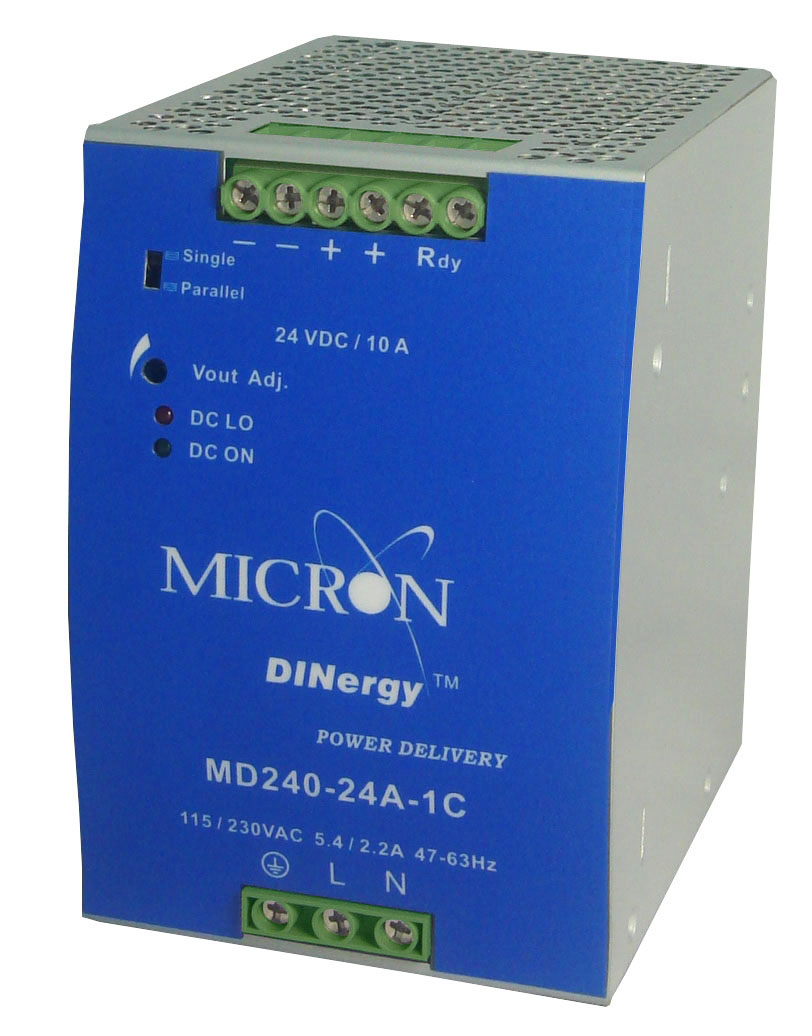

Power Supply, Din Rail Mount, Metal Case, Output 240W x 24VDC, Input 90-264VAC, 1-Phase, 83.5MM Width, UL 508/60950, cUL, CE EN61000, UL 1604/ISA 12.12.01 Class 1 DIV 2

$107.00

Min: 1  Mult: 1

Product Attributes

OVERALL Dims

(4.59 x 3.29 x 4.90)

Brand

DINergy

Style

Standard

Standards

UL / cUL: UL 508 Listed, UL 60950-1 Recognized, ISA 12.12.01 (Class 1, Division 2, Groups A, B, C & D), CE to EN61000

Short Description

DC Power Supply 22.5-28.5VDC

Product Type

DC Power Supply

Phase

1

Peak Current (A)

13.50

Output Voltage Range (VDC)

22.5-28.5

Output Voltage (VDC)

24

Output Power (Watts)

240

Output Current Range (A)

10.00-8.40

Output Current (A)

10

Mounting Style

Din Rail Mount

Input Voltage VDC

210-375

Input Voltage VAC

90-264

Hz

47-63

Case Type

Metal Case

Warranty

3 Years

Not available at this time.
