778-ANLTP

Marinco | Connectors
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

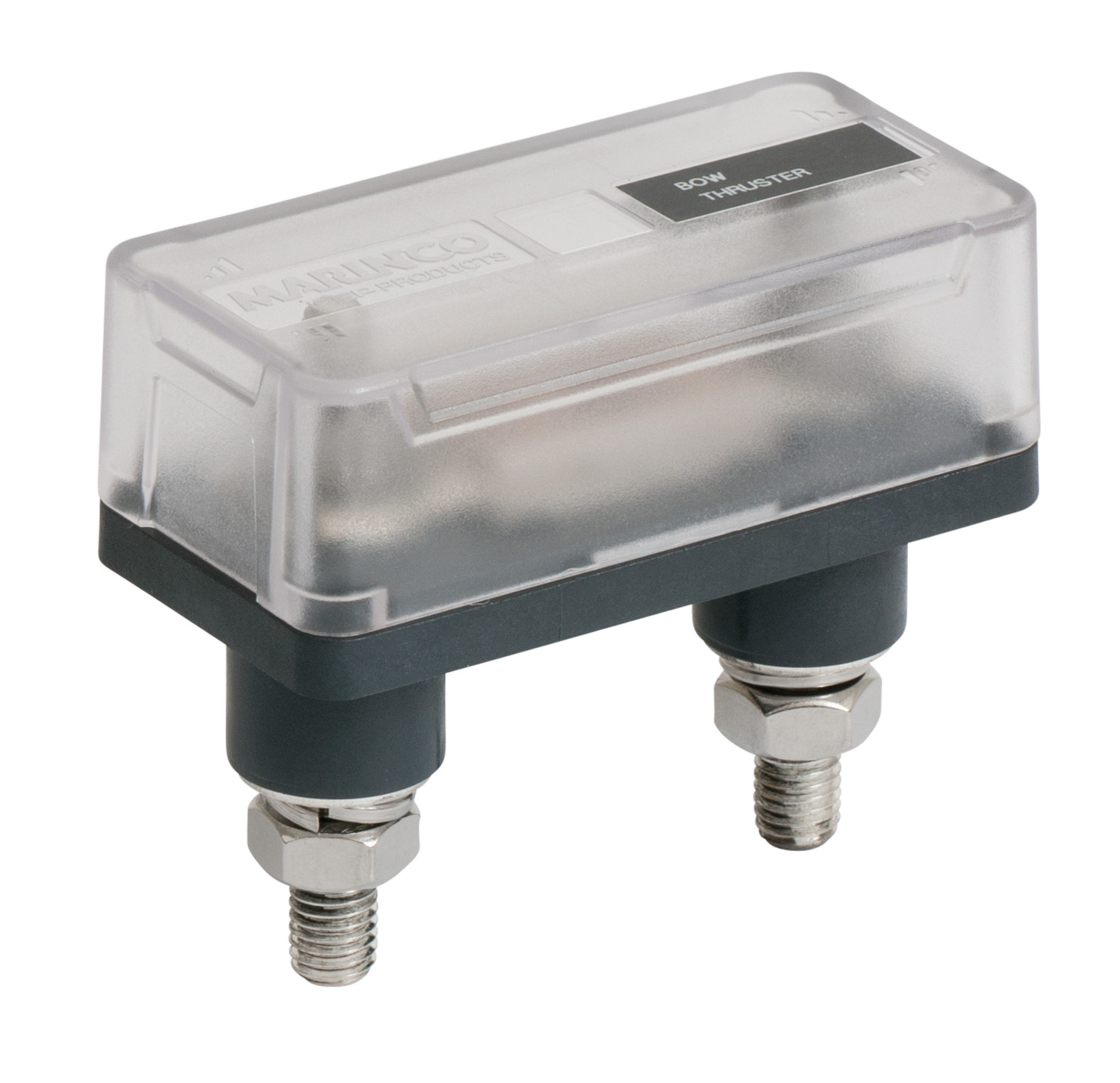

ANL Through Panel Fuse Holder, 500A; This innovative, through-panel mounting fuse holder (Patent Pending) offers the user easy visual inspection of fuse state, and easy/safe access to change fuses if blown. It provides high-capacity fusing, fast response, high interrupt ratings (up to 3,000 Amps DC), and is ideal for protecting today's demanding onboard power electronics technology including inverters and battery chargers. It can also protect wiring from short circuits, for example as a main fuse to protect house circuits, protection for digital switching main feed circuits, or heavy duty loads.

$68.30

Min: 1  Mult: 1

Product Attributes

Tariff 301

This item is currently subject to a tariff of 15%

BRAND

BEP

Feature-13

Fuse type: ANL or ANN (very fast acting)

Feature-14

Amperage: 35-500A

Feature-15

50 VDC, or determined by fuse fitted (if lower)

Feature-16

High temperature, fibre reinforced plastic base provides strength and chemical resistance

Feature-18

Tinned CDA260 highly conductive brass for improved strength on integral studs, stainless steel nuts and washers for longevity in the marine environment

Feature-7

Clear polycarbonate cover

Packge Type

Retail


Click Here

Feature-12

Fuse mounting studs: 8mm (5/16"). Also allows 10mm (3/8") fuses to be used

Feature-11

Cable connection studs: 10mm (3/8")

Feature-01

Convenient fuse inspection and replacement

Feature-02

Compact footprint saves space

Feature-04

Radiused connection points improve cable routing options (back-to-back lugs fit at any angle -90º to +90º)

Feature-05

Innovative clear cover provides insulation/protection

Feature-06

Fuse viewing "window" in cover aids visual inspection of fuse state

Feature-07

Label recess on cover allows fitting up to ½" width (12.7mm) printed labels from handheld label printers

Feature-08

Insert moulded studs offer superior mechanical strength

Feature-09

Designed for the harsh marine environment

Feature-10

Studs have anti-seize lubrication applied to prevent thread galling

UPC

843687006817

PKG TYPE

Retail

Feature-19

All threads are metric

Pricing Note

Price change of approx. 15.0% Effective 07/01/23

Stocking Status

Active

Not available at this time.
