Intermatic

PX100S

Intermatic | PX | Transformers
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
These safety transformers are specifically designed to supply 12,13 and 14 VAC and are suitable for direct connection to underwater pool/spa lights. A grounded shield between the primary and secondary winding assures safe operation. Built-in circuit protection will disconnect power to the transformer in case of an overload.

$143.35

Min: 1  Mult: 1

Product Attributes

Brand

Intermatic

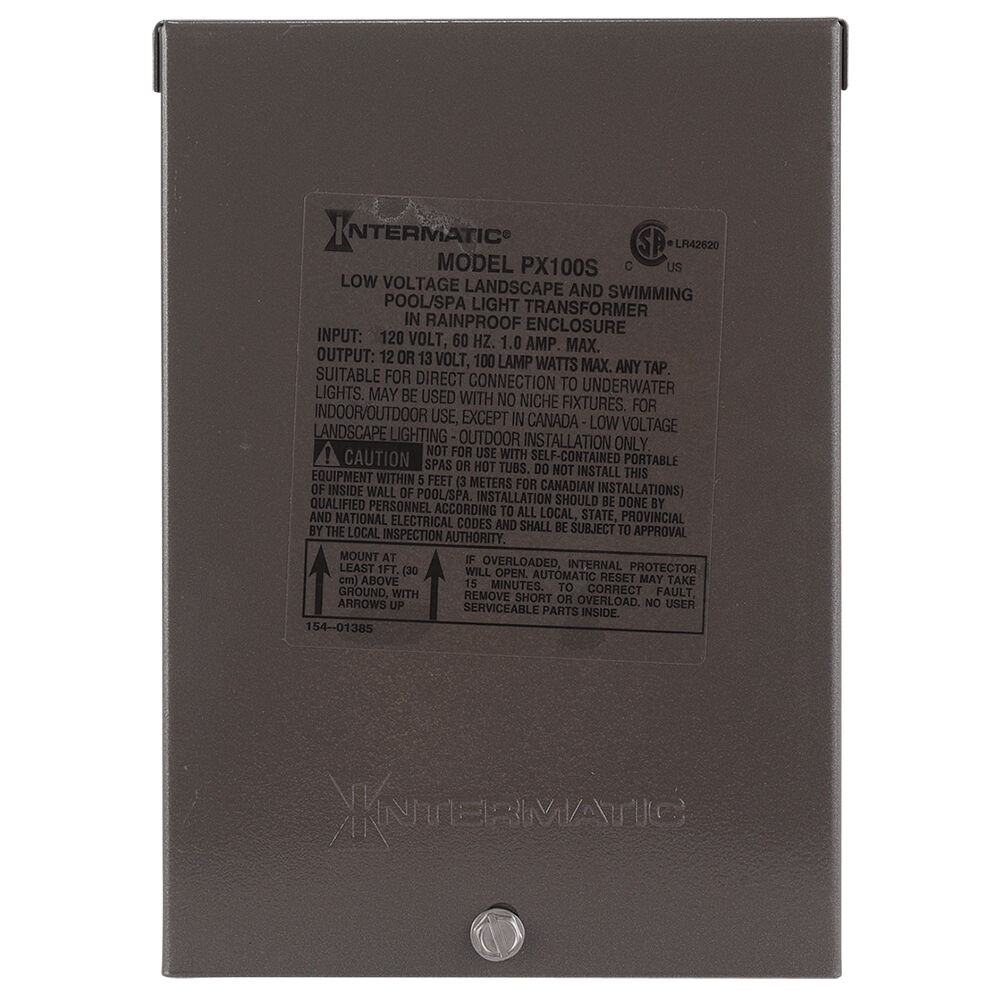

Photo-1

Click Here

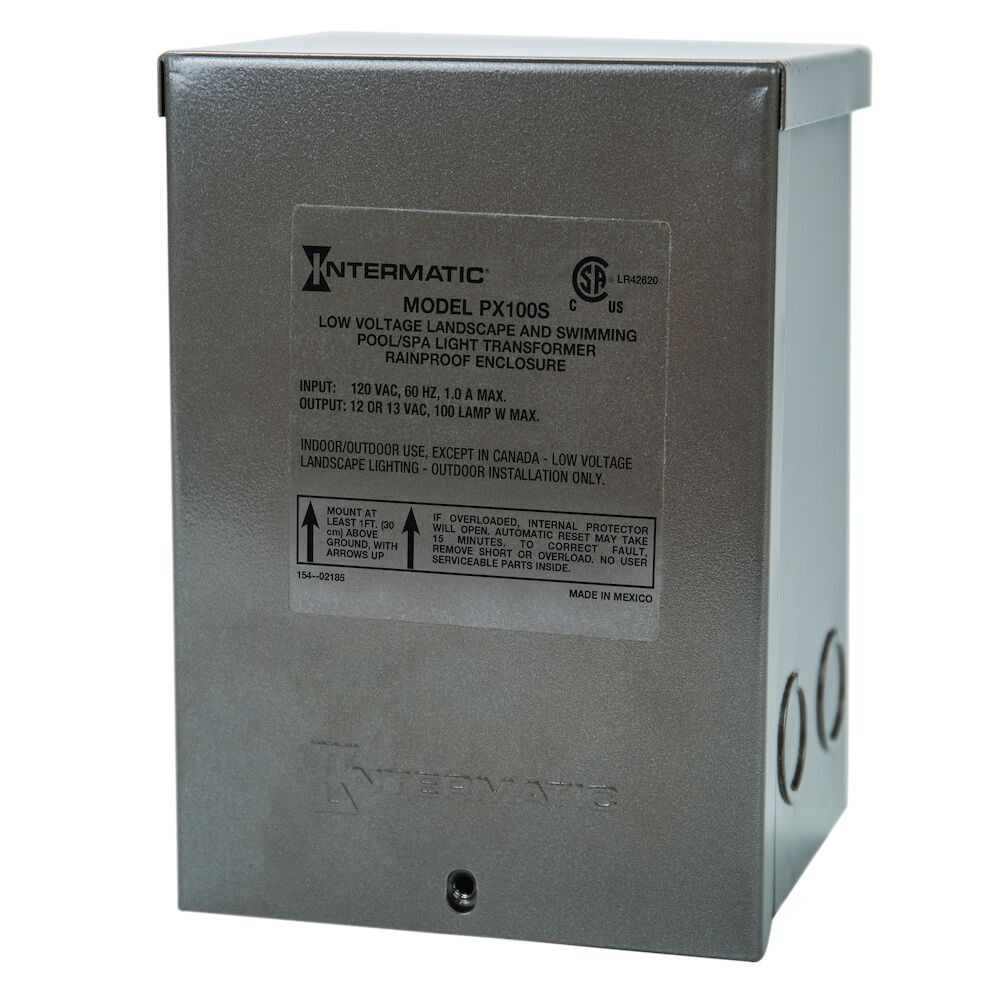

Photo-2

Click Here

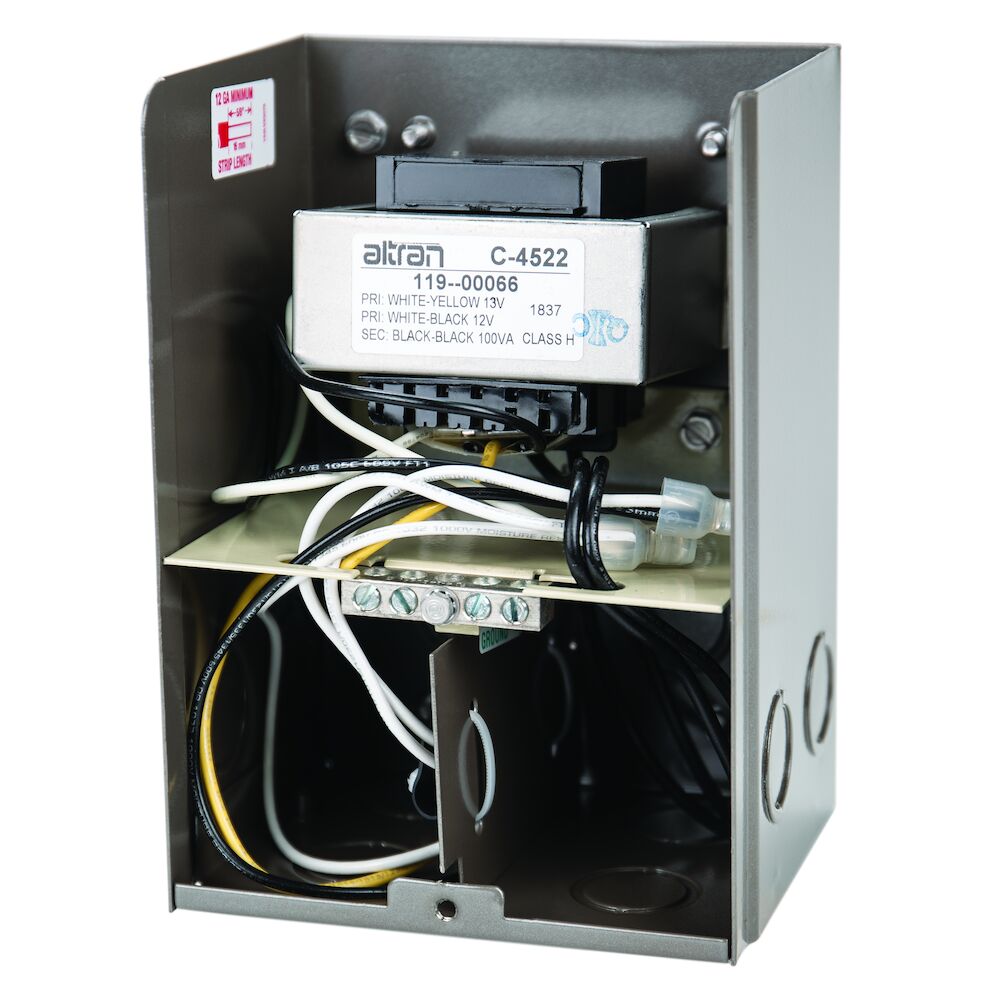

Photo-3

Click Here

Power Consumption Max W

100 W

Transformer Input Voltage

1 A, 120 VAC, 60 Hz

Transformer Output Voltage

12, 13, 14 VAC

Transformer W

100

UPC

078275067561

Other Certifications

NEC Code 680.23

MFG-Link

Click Here

CSA Certification

cCSAus

Enclosure Type

3R Brown stainless steel

Feature1

Mounting brackets on the top and bottom

Feature2

Built-in circuit protection disconnects power temporarily in case of overload

Feature3

Complies with NEC Code 680.23 requirements forunderwater luminaries

GTIN

00078275067561

Input Voltage Ranges

1 A, 120 VAC, 60 Hz

WarrantyPeriod

1-Year limited

LifeCycle

Production

Not available at this time.
