Intermatic

PS3000

Intermatic | SG | Surge Protective
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_PS3000

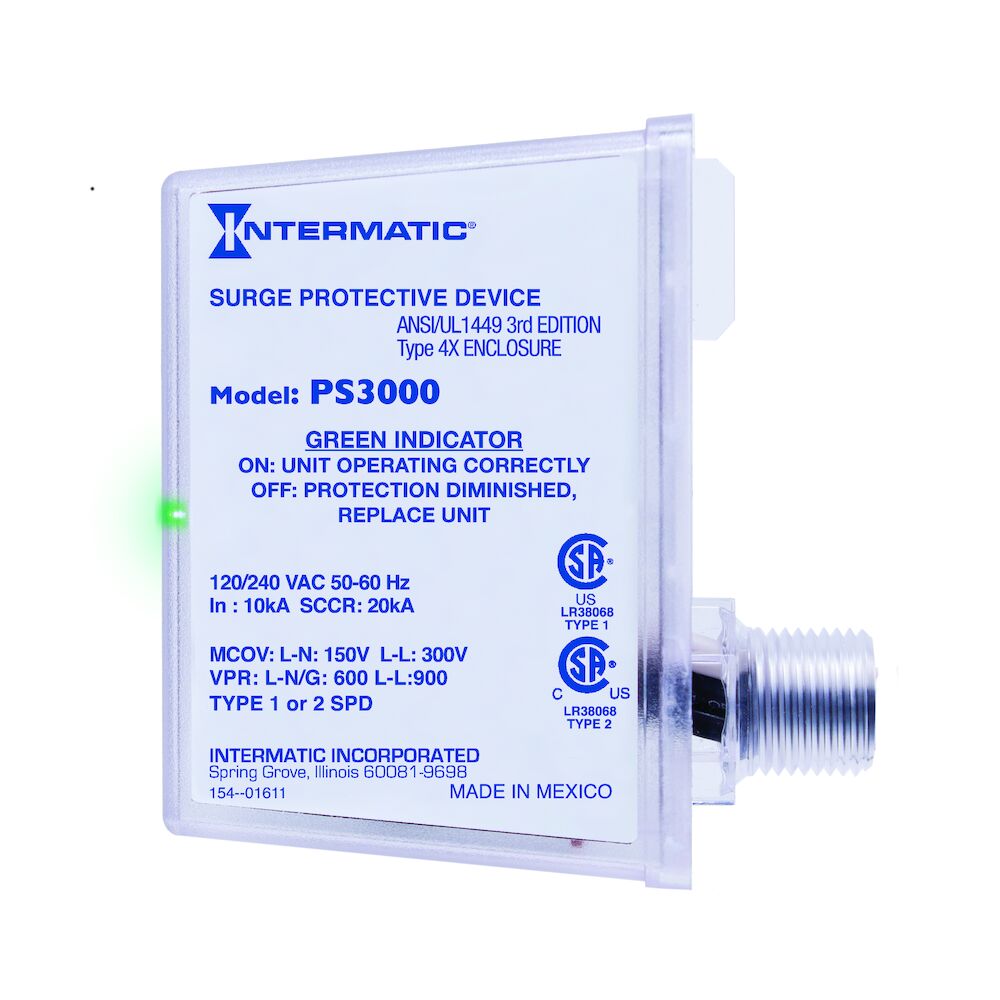

Mount the PS3000 to your pool electrical panel to protect all your expensive pool and spa equipment against power surges. Designed with trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology to eliminate the potentially hazardous failure modes that are commonly associated with standard MOV technology.

$83.68

Min: 1  Mult: 1

Product Attributes

Brand

Intermatic

MaximumContinuousOperatingVoltageLN

150

Modes Of Protection

3

Nominal Discharge Current

20 kA

Number Of Wire Leads

3

Operating Temperature Max F

158

Operating Temperature Min F

-40

Short Circuit Current Rating

100 kA

Surge Protection Technology

TPMOV®

Surge Protection Types

1;2

UL Certification

UL;cULus

UPC

078275141155

Voltage Protection Rating LL

1200

WarrantyPeriod

3-Year limited

Wire Lead Length In

18

Maximum Continuous Operating Voltage LL

300

Wiring Option

Wire leads

DataSheet

Click Here

Enclosure Type

Indoor/outdoor type 4X

Feature1

TPMOV Surge Protection Technology

Feature2

UL Listed to ANSI/UL 1449, 5th edition

Feature3

120/240 VAC single-phase SPD for use on a variety of pool equipment

Feature4

Green LED protection indicator

Connected Equipment Warranty Period

3-Year limited

Feature5

Type 4X watertight and UV resistant plastic enclosure

Feature6

Three modes of protection

Feature7

Includes (3) 18", #10 AWG tinned copper leads

Feature8

3-year warranty

Feature9

$7,500 connected equipment warranty

GTIN

00078275141155

LED Surge Protection Indicator

Green

ConnectedEquipmentWarrantyCoverage

7500

MFG-Link

Click Here

Photo-1

Click Here

LifeCycle

Production
