Intermatic

CD1-024R

Intermatic | AG | Surge Protective
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_CD1-024R

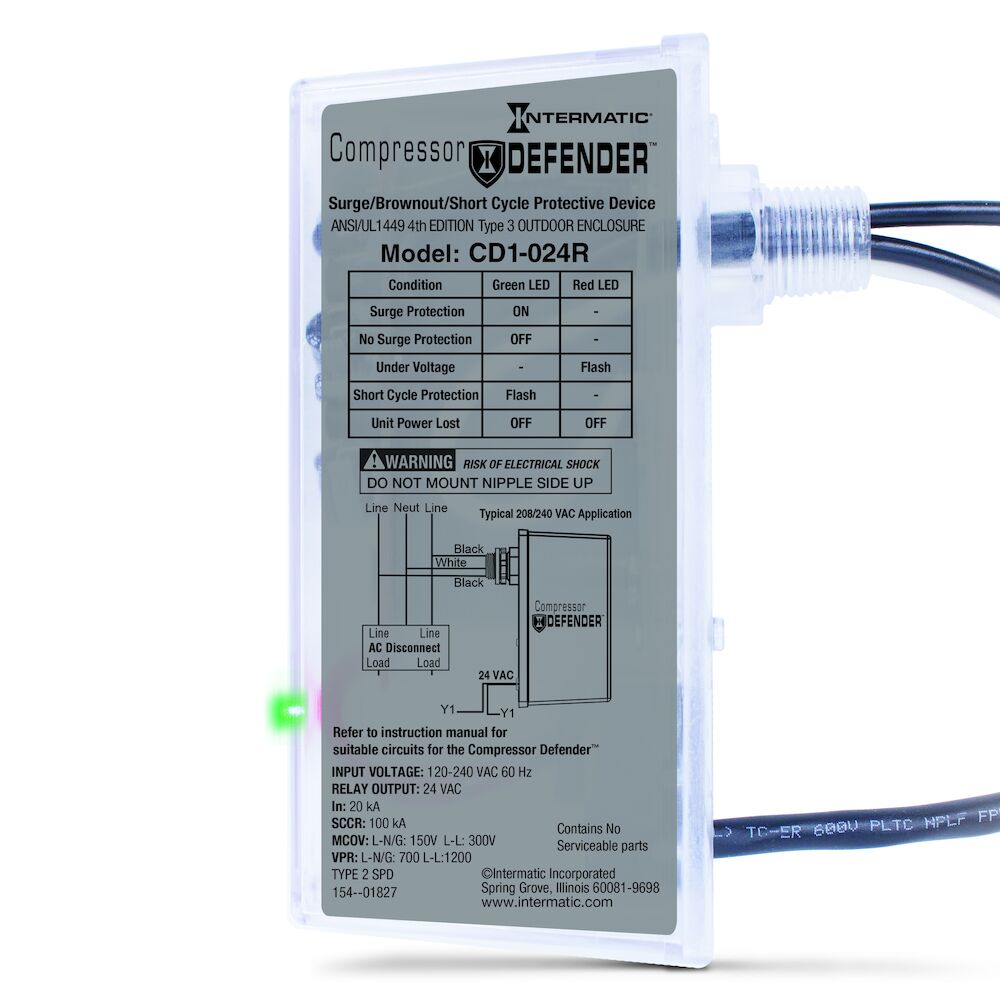

The COMPRESSOR DEFENDER® surge protector is the only all-in-one undervoltage and surge power protection device on the HVAC Market, providing protection for central A/C and heat pump condensing units and their associated motors, controls and components—both electronic and mechanical. It can be installed inside the condensing unit or externally on the outdoor A/C disconnect. Autosense voltage technology protects at any voltage from 120-240 VAC, making it an ideal solution for residential or light

$108.50

Min: 1  Mult: 1

Product Attributes

Brand

Intermatic

Wire Size Max

#10 AWG, Tinned Copper

Maximum Continuous Operating Voltage LL

300

Modes Of Protection

3 (L1-N, L2-N, L1-L2)

Nominal Discharge Current

20 kA

Operating Temperature Max F

158

Operating Temperature Min F

-40

Other Certifications

HVACR

Short Circuit Current Rating

100 kA

Surge Protection Technology

TPMOV®

Surge Protection Types

2

UL Certification

cULus

UPC

078275142923

Voltage Protection Rating LL

1200

WarrantyPeriod

3-Year limited

LED Surge Protection Indicator

Green

GTIN

00078275142923

DataSheet

Click Here

Enclosure Type

Outdoor type 3

Feature1

TPMOV® surge protection technology

Feature10

Undervoltage protection complies with AHRI standard 110-2016 Range B Protective Device

Feature2

3-year, $7500 connected equipment warranty

Connected Equipment Warranty Period

3-Year

Feature3

Auto-sense voltage technology

Feature4

Quick-reacting, 5-line cycle undervoltage response time

Feature5

120/208-240 VAC universal input

Feature6

24 VAC/VDC, 2 A control thermostat output

Feature7

3-minute short cycle time delay

Feature8

Two LED indicators provide real time status for quick and easy troubleshooting and functional visibility for end users

Feature9

Surge protection complies with the latest UL 1449, 4th Edition, surge protective device requirements

ConnectedEquipmentWarrantyCoverage

$7,500

MFG-Link

Click Here

Photo-1

Click Here

LifeCycle

Production

Not available at this time.
