Intermatic

AG6503L3

Intermatic | AG | Surge Protective
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_AG6503L3

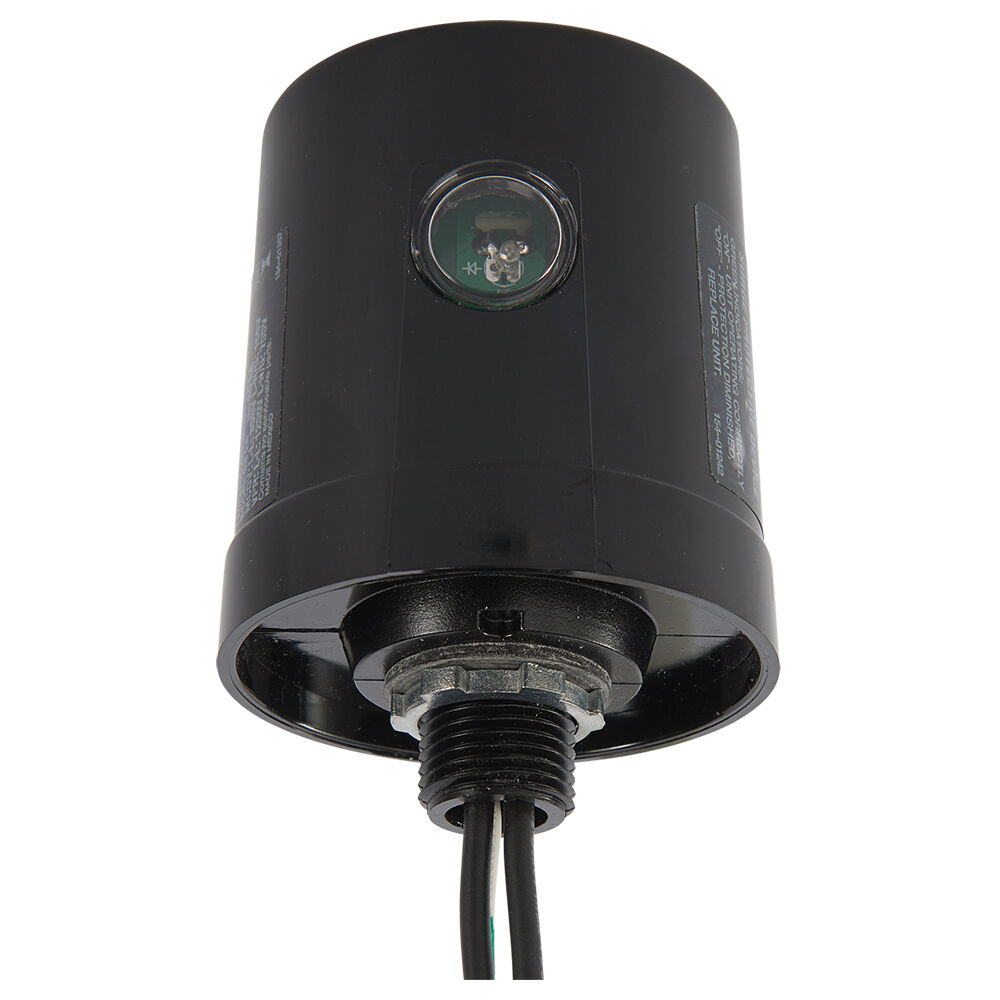

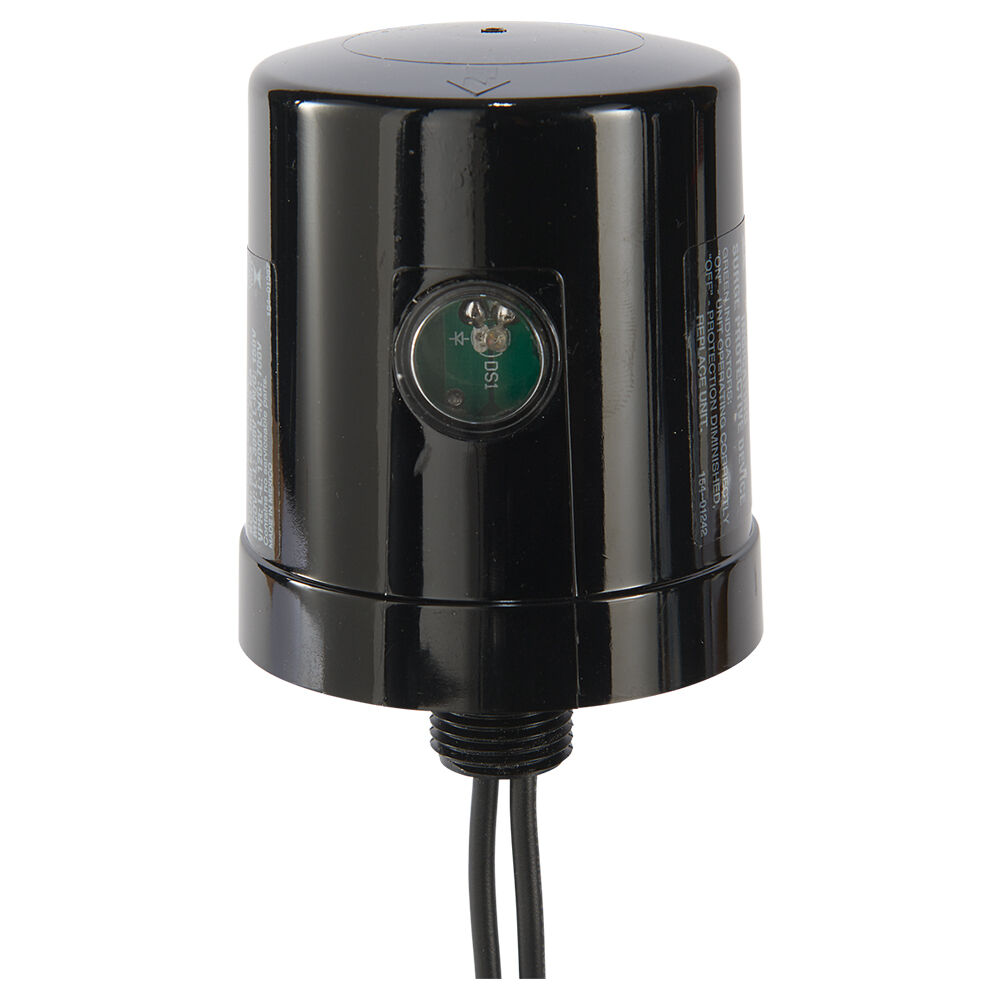

The AG Series Surge Protective Devices (SPD) are designed for a variety of applications. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. A green LED indicator provides status of protection. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installation

$123.85

Min: 1  Mult: 1

Product Attributes

Wiring Option

Wire leads

Nominal Discharge Current

20 kA

Number Of Power Phases

Three

Number Of Wire Leads

4

Operating Temperature Max F

185

Product Diameter In

3

Short Circuit Current Rating

50 kA

Surge Protection Technology

TPMOV®

Surge Protection Types

1;2

UL Certification

UL;cULus

UPC

078275124769

Voltage Protection Rating LG

1500

Voltage Protection Rating LL

2500

Voltage Protection Rating LN

1500

WarrantyPeriod

1-Year limited

Wire Lead Length In

36

Wire Size Max

#10 AWG

Modes Of Protection

6 (L1-N, L2-N, L3-N, L1-L2, L1-L3, L2-L3)

MaximumContinuousOperatingVoltageLN

420

Brand

Intermatic

Feature6

1⁄2" threaded nipple for 7⁄8" nominal conduit knockout

Feature5

UV-resistant polycarbonate housing

Feature4

Type 4X watertight, plastic enclosure for outdoor installations

Feature3

Green LED protection indicator

Feature2

TPMOV® surge protection technology

Feature1

Six modes of protection

Enclosure Type

Indoor/outdoor type 4X

DataSheet

Click Here

CSA Certification

CSA;cCSAus;cCSAus SPD Type 1;cCSAus SPD Type 2

Feature7

1-year product warranty

Feature8

UL Listed to ANSI/UL 1449 5th edition

Maximum Continuous Operating Voltage LL

840

Maximum Continuous Operating Voltage LG

420

Operating Temperature Min F

-31

LED Surge Protection Indicator

Green

Input Voltage Ranges

347/600 VAC, 50/60 Hz

GTIN

00078275124769

MFG-Link

Click Here

LifeCycle

Production
