Intermatic

AG48013

Intermatic | AG | Surge Protective
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_AG48013

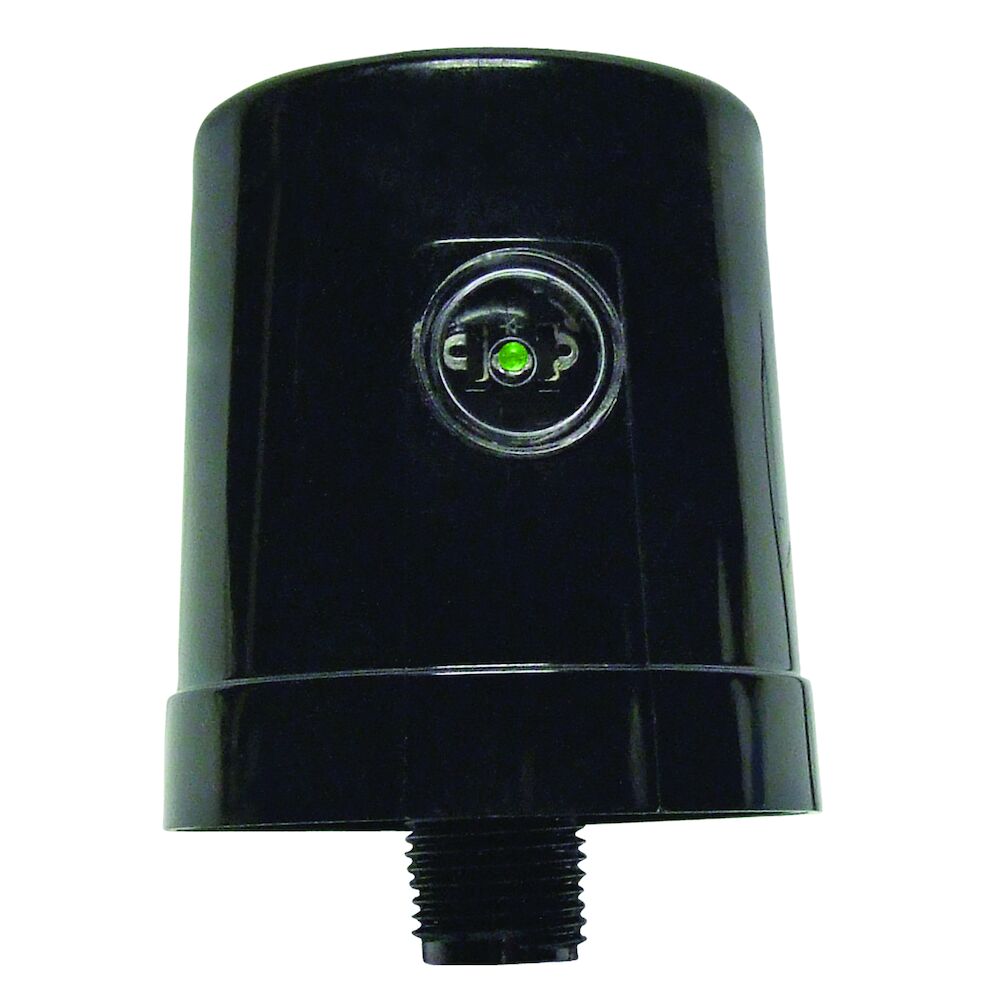

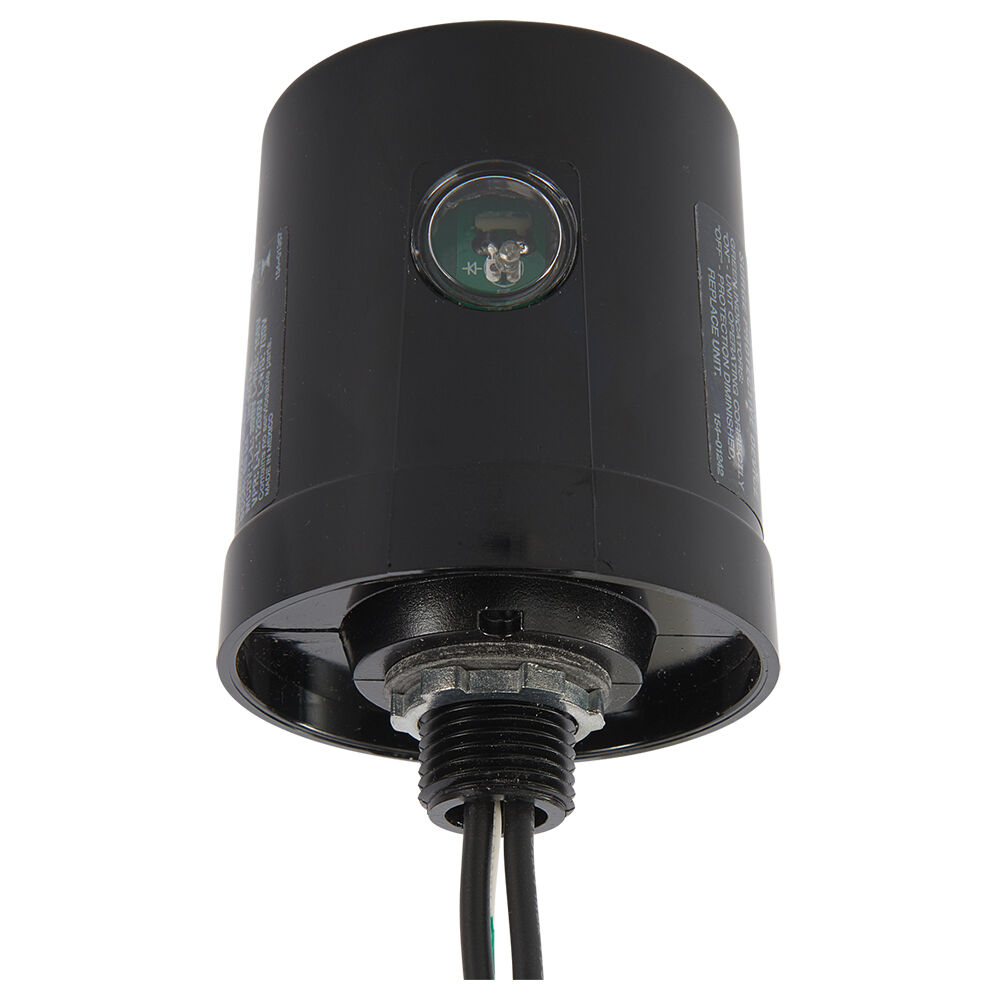

The AG Series Surge Protective Devices (SPD) are designed for a variety of applications. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. A green LED indicator provides status of protection. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installation

$90.87

Min: 1  Mult: 1

Product Attributes

Wiring Option

Wire leads

Nominal Discharge Current

20 kA

Number Of Power Phases

Single

Number Of Wire Leads

3

Operating Temperature Max F

185

Operating Temperature Min F

-31

Product Diameter In

3

Short Circuit Current Rating

50 kA

Surge Protection Technology

TPMOV®

Surge Protection Types

1;2

UL Certification

UL;cULus

UPC

078275124462

Voltage Protection Rating LG

1200

Voltage Protection Rating LL

2000

Voltage Protection Rating LN

1200

WarrantyPeriod

1-Year limited

Wire Lead Length In

18

Wire Size Max

#10 AWG (Black, White);#6 AWG (Green)

Modes Of Protection

3 (L1-N, L2-N, L1-L2)

Brand

Intermatic

Feature6

1⁄2" threaded nipple for 7⁄8" nominal conduit knockout

Feature5

UV-resistant polycarbonate housing

Feature4

Type 4X watertight, plastic enclosure for outdoor installations

Feature3

Green LED protection indicator

Feature2

TPMOV® surge protection technology

Feature1

Three modes of protection

Enclosure Type

Indoor/outdoor type 4X

DataSheet

Click Here

CSA Certification

cCSAus;cCSAus SPD Type 1;cCSAus SPD Type 2

Feature7

1-year product warranty

Feature8

UL Listed to ANSI/UL 1449 5th edition

Feature9

CSA certified to ANSI/UL 1449 3rd edition

MaximumContinuousOperatingVoltageLN

320

Maximum Continuous Operating Voltage LL

640

Maximum Continuous Operating Voltage LG

320

LED Surge Protection Indicator

Green

GTIN

00078275124462

MFG-Link

Click Here

LifeCycle

Production
