Intermatic

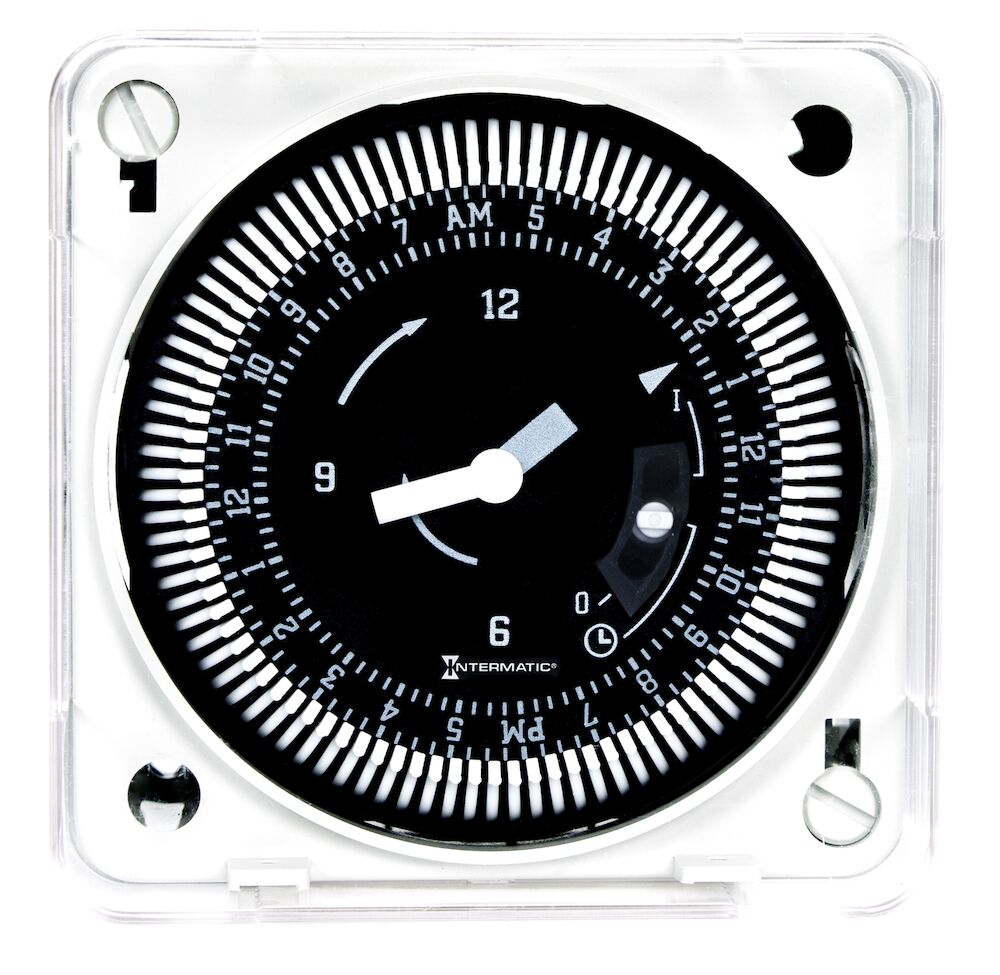

MIL72ESTUZH-120

Intermatic | GM | Surface Mount Timers
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_MIL72ESTUZH-120
The MIL72 series time switches are designed to be mounted inside a control panel and can accommodate surface/DIN rail or flush panel mounting. The MIL72 series is a light duty commercial time switch for 12-24 VAC/VDC, 120 or 208/240 VAC single-phase applications.

$64.35

Min: 1  Mult: 1

Product Attributes

Application Compatibilities

Incandescent;Fluorescent;CFL;LED

Wiring Option

1/4" Quick connect terminals

Maximum Cycle Time

24 hrs

Mechanism Type

Electromechanical

Minimum Cycle Time

15 min

Mounting Options

Flush

Operating Humidity

0 to 95%, Non-condensing

Operating Temperature Max F

185

Operating Temperature Min F

-40

Other Certifications

cRUus;CE

Power Consumption Max Va

0.5

Shortest Switching Time

ON/OFF 15 minutes

Switch Type

SPDT

Timing Interval

15 min

UPC

078275153462

WarrantyPeriod

1-Year limited

Input Voltage Ranges

120 VAC, 60 Hz

GTIN

00078275153462

Brand

Domestic Intermatic

Clock Drive Type

Synchronous

CSA Certification

cCSAus

Cut Out Height In

2 5/8

Cut Out Width In

2 5/8

DataSheet

Click Here

Feature1

21 A SPDT switch

Feature2

Synchronous drive or quartz drive (Q Models) with self-recharging battery backup

Feature3

72-hour carry-over battery backup on Q models

Feature4

Captive trippers with 15-minute intervals

Feature9

Compact size

Feature5

Available with or without override

Feature6

True clock face, easy-to-set

Feature8

Clear plastic dust cover

Feature7

Surface/DIN rail or flush mount

MFG-Link

Click Here

Photo-1

Click Here

LifeCycle

Production
