Intermatic

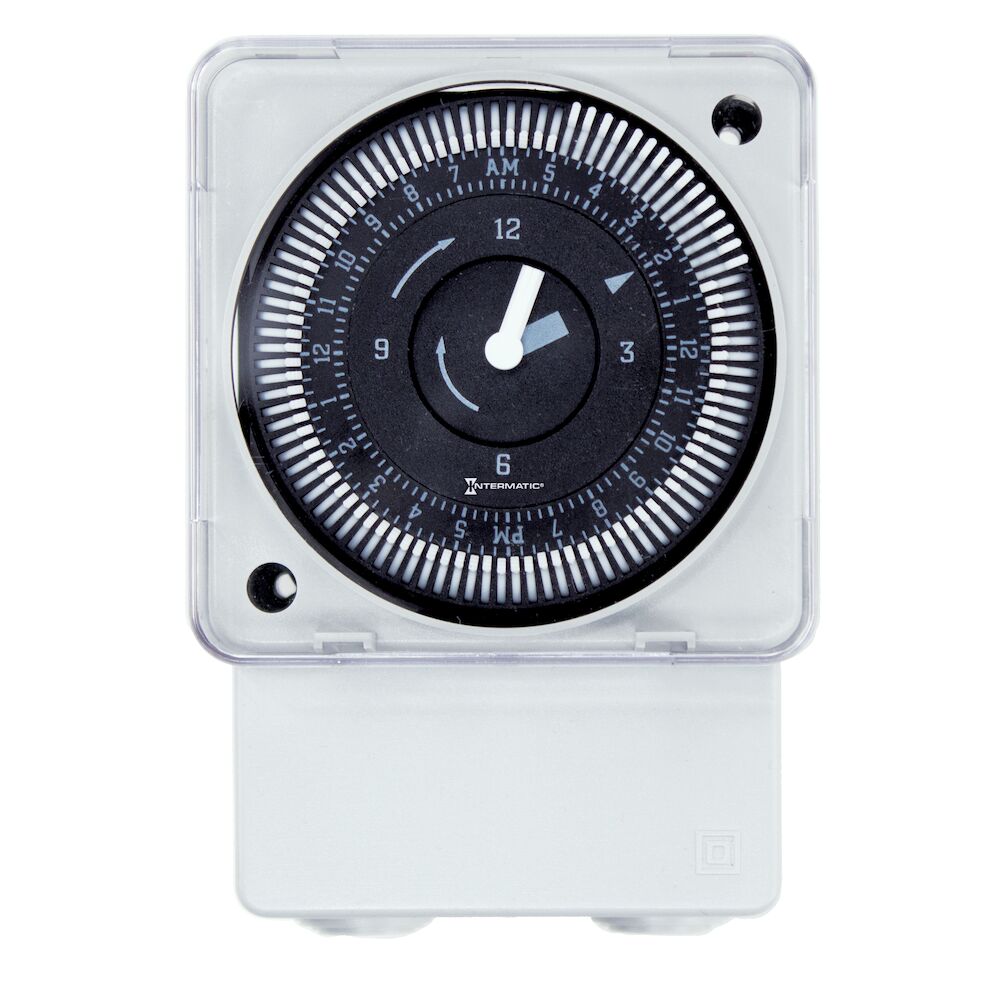

MIL72AQTUZH-120

Intermatic | GM | Surface Mount Timers
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_MIL72AQTUZH-120
The MIL72 series time switches are designed to be mounted inside a control panel and can accommodate surface/DIN rail or flush panel mounting. The MIL72 series is a light duty commercial time switch for 12-24 VAC/VDC, 120 or 208/240 VAC single-phase applications.

$116.90

Min: 1  Mult: 1

Product Attributes

Application Compatibilities

Incandescent;Fluorescent;CFL;LED

Wiring Option

Screw terminal accepts up to #12 AWG wire

Maximum Cycle Time

24 hrs

Mechanism Type

Electromechanical

Minimum Cycle Time

15 min

Mounting Options

Surface;DIN

Operating Humidity

0 to 95%, Non-condensing

Operating Temperature Max F

131

Operating Temperature Min F

-4

Operating Temperature with Battery Backup

-4° F to 131° F (-20° C to 55° C)

Other Certifications

cRUus;CE

Power Consumption Max Va

0.5

Shortest Switching Time

ON/OFF 15 minutes

Switch Type

SPDT

Timing Interval

15 min

UPC

078275153318

WarrantyPeriod

1-Year limited

Wire Size Max

#12 AWG

Input Voltage Ranges

120 VAC, 50/60 Hz

GTIN

00078275153318

DataSheet

Click Here

CSA Certification

cCSAus

Clock Drive Type

Quartz

Brand

Domestic Intermatic

Battery Type

NiMh

Battery Service Type

Rechargeable

Backup Type

72-hour Carry-over;Battery;Self-recharging

Backup Protection Time

72 Hours

Feature1

21 A SPDT switch

Feature2

Synchronous drive or quartz drive (Q Models) with self-recharging battery backup

Feature9

Compact size

Feature8

Clear plastic dust cover

Feature7

Surface/DIN rail or flush mount

Feature6

True clock face, easy-to-set

Feature5

Available with or without override

Feature4

Captive trippers with 15-minute intervals

Feature3

72-hour carry-over battery backup on Q models

MFG-Link

Click Here

Photo-1

Click Here

LifeCycle

Production
