Intermatic

GMXST-I-120

Intermatic | GM | Surface Mount Timers
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_GMXST-I-120

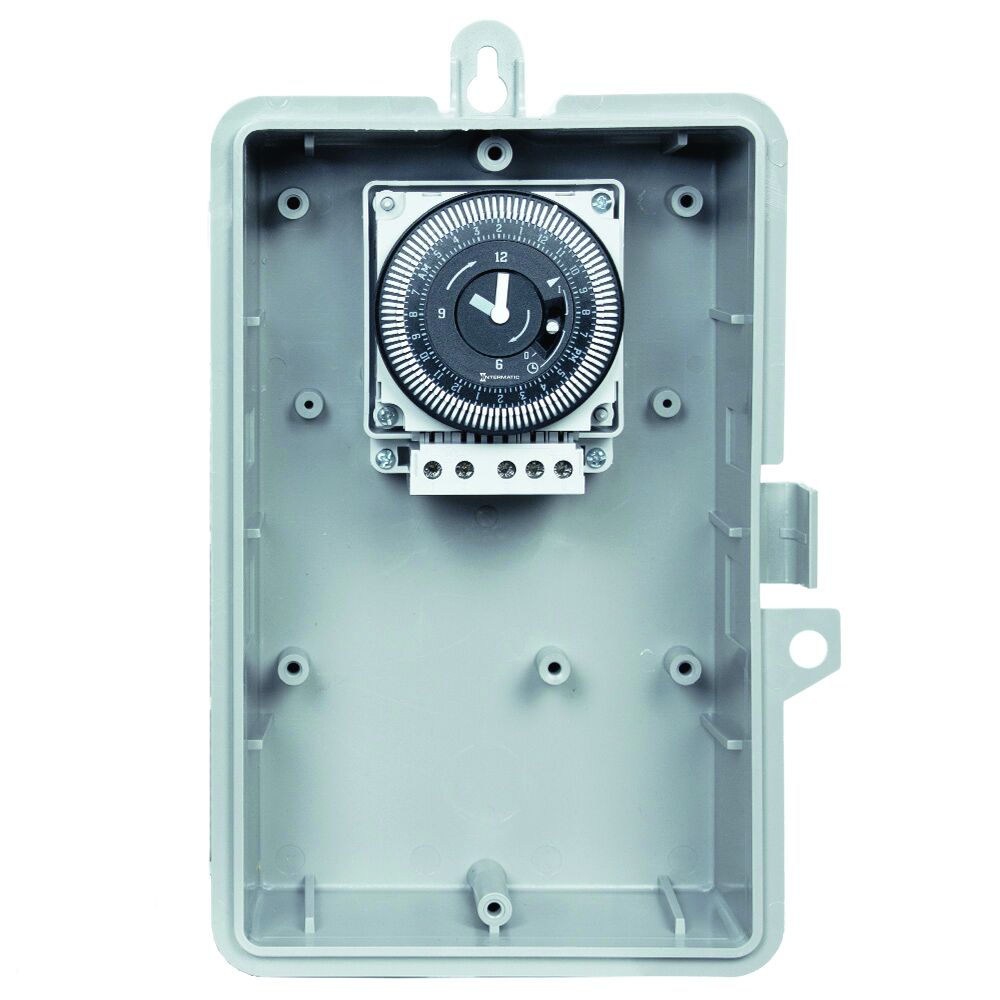

The GMX series time switches are universal mechanical time switches. They are a low cost alternative for applications that do not require more than 21 A or 2 HP @ 240 VAC. The timer is mounted in a UL Type 1 indoor or Type 3R outdoor plastic enclosure. The GMX is a light-duty commercial time switch ideal for 24, 120 or 208/240 VAC single-phase general applications.

$70.99

Min: 1  Mult: 1

Product Attributes

Application Compatibilities

Incandescent;Fluorescent;CFL;LED

Mechanism Type

Electromechanical

Minimum Cycle Time

15 min

Mounting Options

Wall

Operating Humidity

0 to 95%, Non-condensing

Operating Temperature Max F

185

Operating Temperature Min F

-40

Power Consumption Max Va

1

Shortest Switching Time

ON/OFF 15 minutes

Switch Type

SPDT

Timing Interval

15 min

UL Certification

cULus

UPC

078275153226

WarrantyPeriod

1-Year limited

Wire Size Max

#12 AWG

Maximum Cycle Time

24 hrs

Wiring Option

Screw terminal accepts up to #12 AWG wire

Clock Drive Type

Synchronous

DataSheet

Click Here

Enclosure Type

Indoor type 1 plastic

Feature1

21 A SPDT Switch

Feature2

UL Type 1 indoor or Type 3R outdoor plastic enclosure

Feature3

Manual 3-way override

Backup Protection Time

7-Day

Feature4

Captive trippers with 15-minute intervals on 24-hour models and 2-hour intervals on 7-day models

Feature5

True clock face, easy to set

Feature6

Finger-safe terminals

Feature7

Enclosure provides space for field-added contactor or other accessories

Feature8

Synchronous drive or quartz drive ("Q" models) with self-charging battery backup

GTIN

00078275153226

Input Voltage Ranges

120 VAC, 60 Hz

Brand

Domestic Intermatic

MFG-Link

Click Here

Photo-1

Click Here

LifeCycle

Production
