Intermatic

GM40AV

Intermatic | GM | Surface Mount Timers
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_GM40AV

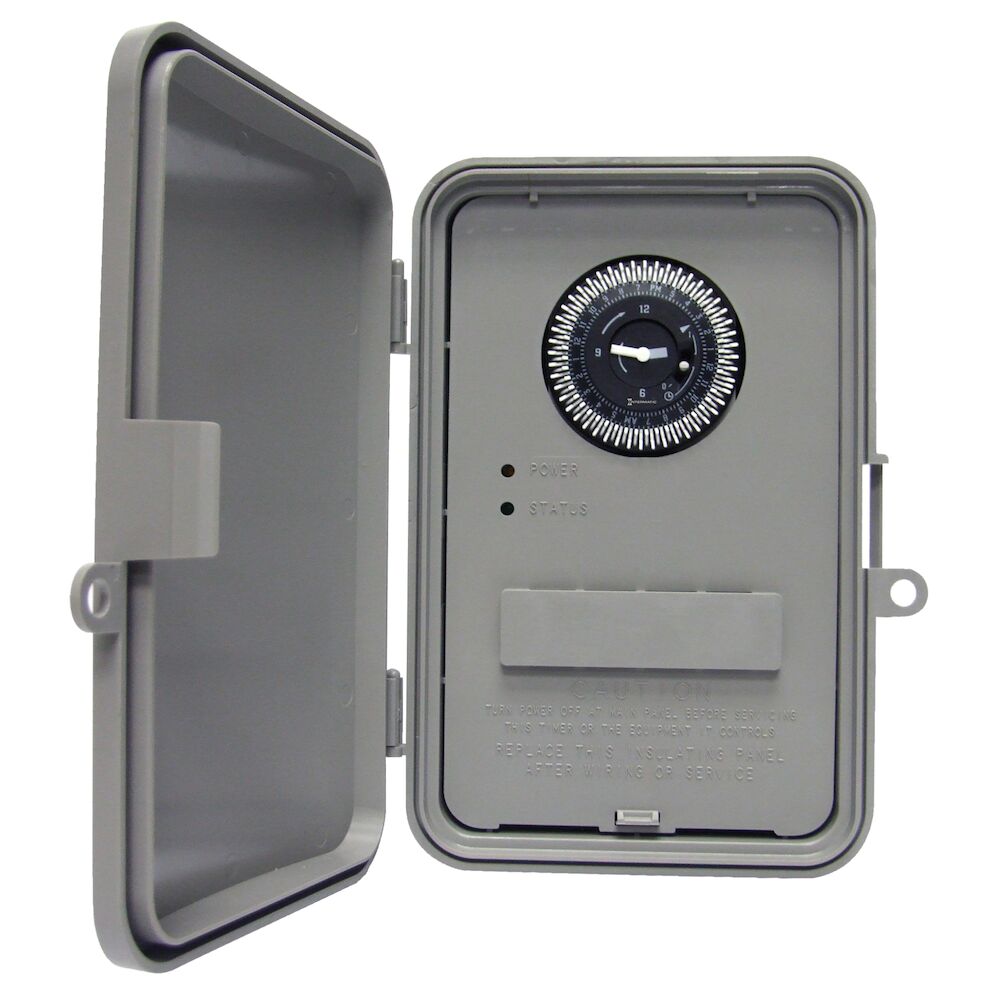

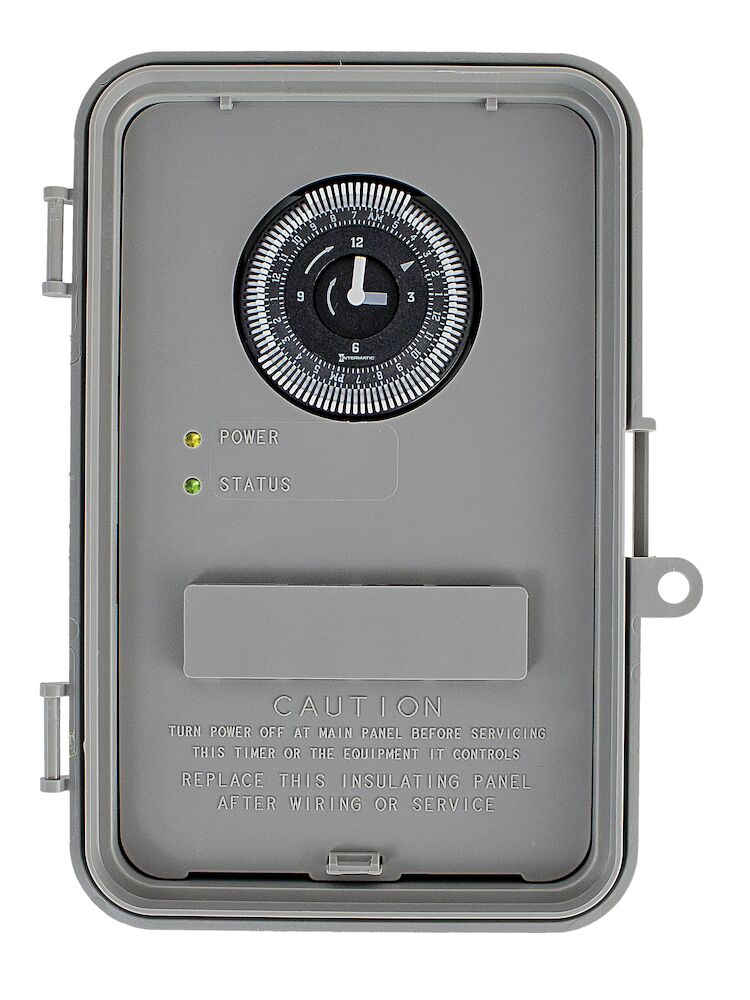

The GM40AV Time Switch is a universal, electromechanical time switch designed for general purpose residential and commercial applications. The robust 40 A time switch automatically detects the input voltage without the use of a DIP switch or selector pins. The time switch automatically selects any voltage between 120-277 VAC. The mechanism is mounted in a compact UL Type 3R outdoor enclosure and can also be easily retrofitted into other Intermatic enclosure types. The time switch features a DP

$79.12

Min: 1  Mult: 1

Product Attributes

Wiring Option

Screw box lug

Pilot Duty NO Load Ratings

300 VA, 120 VAC;300 VA, 208 VAC;300 VA, 240 VAC

Pilot Duty Load Ratings NO Ranges

300 VA, 120-240 VAC

Other Certifications

cRUus

Operation Mode

24 hour

Operating Temperature Min F

-40

Operating Temperature Max F

131

Operating Humidity

0-95% RH, Non-condensing

Motor Load Ratings NO Ranges

1 HP, 16 FLA, 90 LRA @120 VAC; 2 HP, 12 FLA, 52 LRA @ 208-277 VAC

Resistive Load Ratings NC Ranges

30 A, 120-277 VAC

Resistive Load Ratings NO Ranges

40 A, 120-277 VAC

Resistive NC Load Ratings

30 A, 120 VAC, 60 Hz;30 A, 208 VAC, 60 Hz;30 A, 240 VAC, 60 Hz;30 A, 277 VAC, 60Hz

Wire Size Max

#8 AWG

WarrantyPeriod

1-Year limited

Voltage Selection Type

Auto Voltage

UPC

078275123755

UL Certification

cULus

Tungsten NO Load Ratings

15 A, 120 VAC

Switch Type

DPDT

Resistive NO Load Ratings

40 A, 120-277 VAC

Motor Load Ratings NC Ranges

1 HP, 12 FLA, 30 LRA @ 120 VAC; 2 HP, 10 FLA, 30 LRA @ 240 VAC

Minimum On Off Time

15 min

Brand

Domestic Intermatic

Feature6

24-Hour or 7-day models available

Feature5

Power and status LED indicators

Feature4

Self-recharging battery backup, "Q" models feature 72-hour carry-over

Feature3

40 A rating

Feature2

Captive trippers - trippers cannot be lost

Feature10

Easy-to-read clock face

Feature1

Autovoltage selection 120 VAC-277 VAC

Enclosure Type

Indoor/outdoor type 3R plastic

DataSheet

Click Here

Feature7

Up to 48 ON/OFF operations per 24-hour period or 42 ON/OFF operations per week on "W" models

Feature8

DPDT switching configuration standard (2 NO and 2 NC Contacts)

Feature9

Manual three-way ON/OFF/AUTO override switch

GTIN

00078275123755

Mechanism Type

Electromechanical

Maximum On Off Operations

48

Input Voltage Ranges

Auto Voltage 120-277 VAC, 60 Hz

Magnetic Ballast Load Ratings NO Ranges

30 A, 120 VAC; 20 A, 277 VAC

Magnetic Ballast Load Ratings NC Ranges

10 A, 277 VAC

MFG-Link

Click Here

Photo-1

Click Here

Photo-2

Click Here

LifeCycle

Production
