Intermatic

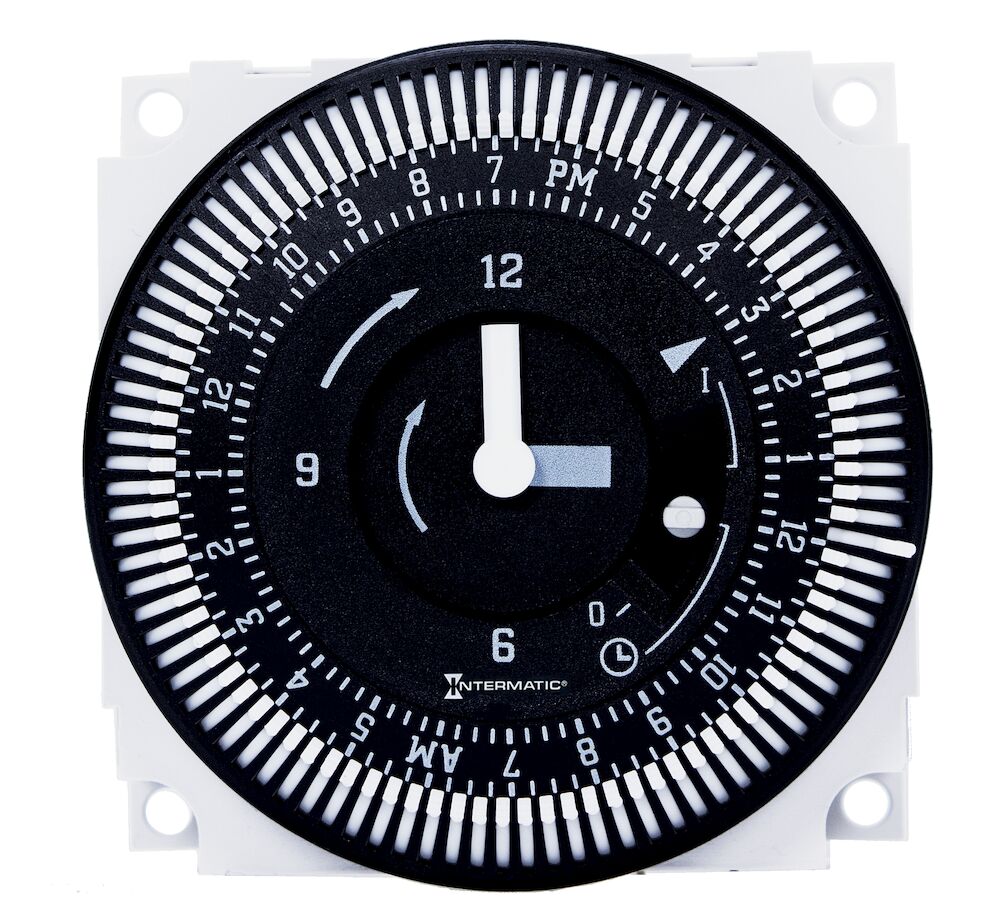

FM1STUZH-24U

Intermatic | GM | Surface Mount Timers
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_FM1STUZH-24U
The FM1 series timer modules are designed to be integrated inside of a machine control panel, circuit board, or other equipment. They are a simple and low cost alternative for applications that do not require more than 21 A or 2 HP, 240 VAC. The FM1 is designed for 24-hour or 7-day control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security, or pump system. The FM1 series is ideal for 12, 24 VAC/VDC,120 or 208/240VAC single-phase general applicat

$50.79

Min: 1  Mult: 1

Product Attributes

Application Compatibilities

Incandescent;Fluorescent;CFL;LED

Mechanism Type

Electromechanical

MFG-Link

Click Here

Minimum Cycle Time

15 min

Mounting Options

Panel

Operating Humidity

0 to 95%, Non-condensing

Operating Temperature Max F

185

Operating Temperature Min F

-40

Other Certifications

cRUus;CE

Photo-1

Click Here

Power Consumption Max Va

1

Shortest Switching Time

ON/OFF 15 minutes

Switch Type

SPDT

Timing Interval

15 min

UPC

078275152793

WarrantyPeriod

1-Year limited

Maximum Cycle Time

24 hrs

Wiring Option

1/4" Quick connect terminals

Input Voltage Ranges

24 VAC, 60 Hz

Brand

Domestic Intermatic

Clock Drive Type

Synchronous

CSA Certification

cCSAus

Datasheet

Click Here

Feature1

21 A SPDT Switch

Feature10

Standalone or with indoor/outdoor enclosure, sold separately

Feature2

Captive trippers with 15-minute intervals on 24-hour models and 2-hour intervals on 7-day models

Feature3

72-hour carry-over battery backup on Q models

Feature4

Noise immune – ideal for robust applications

Feature5

Synchronous drive or quartz drive Q models with self-recharging battery backup

Feature6

True clock face, easy-to-set

Feature7

Available with or without override

Feature8

Compact size

Feature9

Clear plastic cover (DC-FME-A), sold separately

GTIN

00078275152793

LifeCycle

Production
