Intermatic

FM1QTUZ-120U

Intermatic | GM | Surface Mount Timers
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_FM1QTUZ-120U

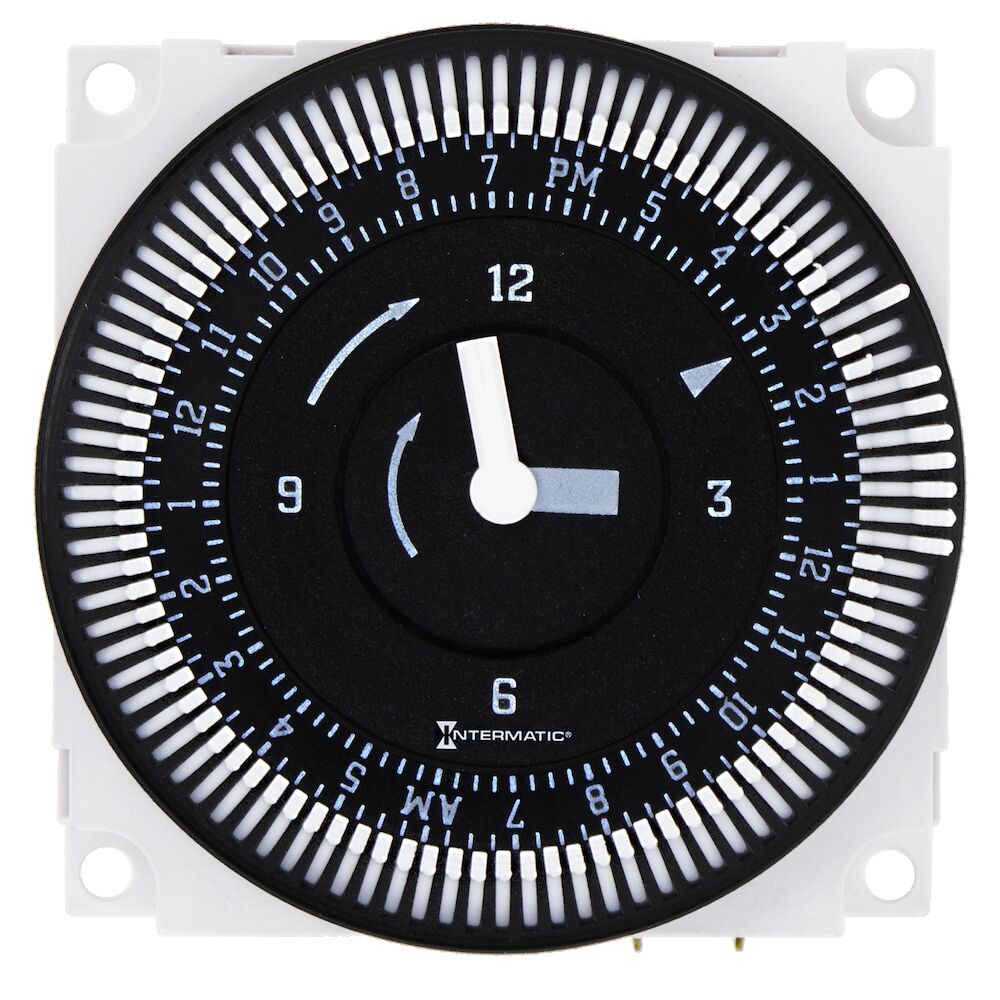

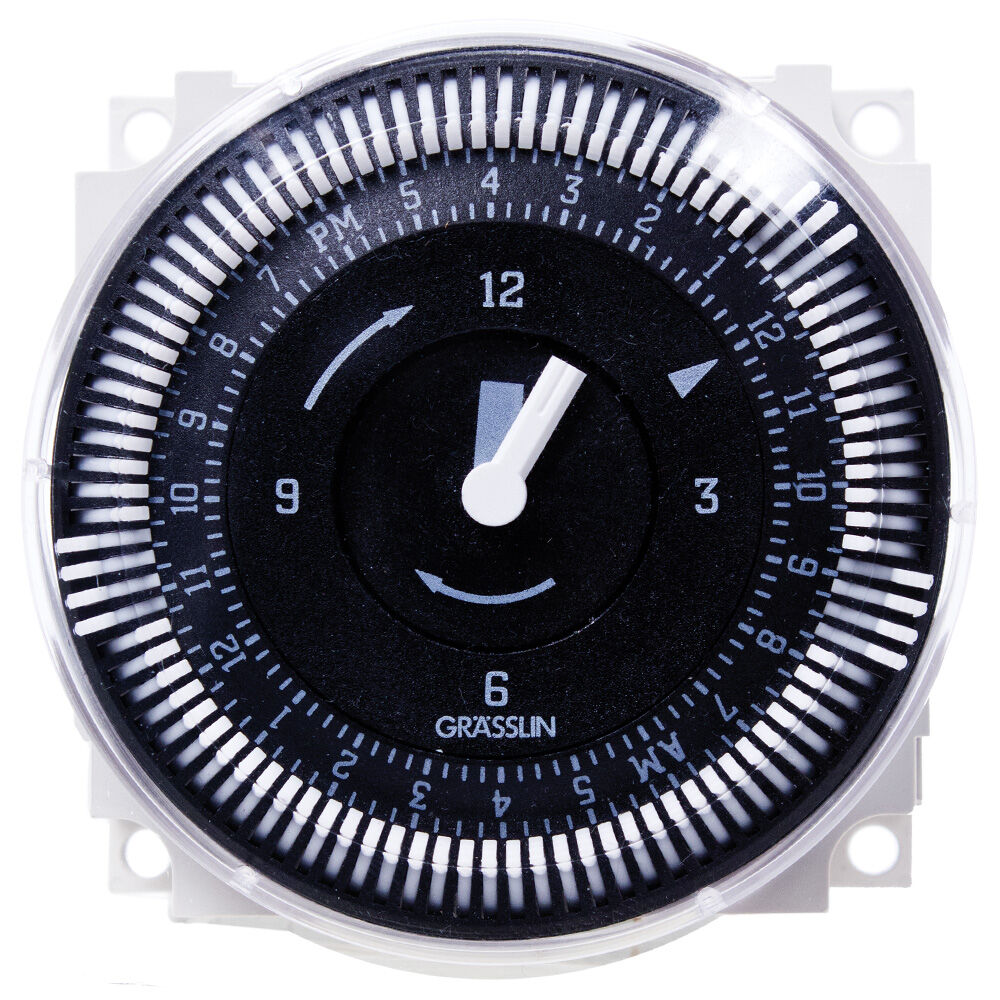

The FM1 series timer modules are designed to be integrated inside of a machine control panel, circuit board, or other equipment. They are a simple and low cost alternative for applications that do not require more than 21 A or 2 HP, 240 VAC. The FM1 is designed for 24-hour or 7-day control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security, or pump system. The FM1 series is ideal for 12, 24 VAC/VDC,120 or 208/240VAC single-phase general applicat

$92.74

Min: 1  Mult: 1

Product Attributes

Wiring Option

1/4" Quick connect terminals

Operating Temperature Min F

-4

Operating Temperature Max F

131

Operating Humidity

0 to 95%, Non-condensing

Mounting Options

Panel

Minimum Cycle Time

15 min

MFG-Link

Click Here

Mechanism Type

Electromechanical

Maximum Cycle Time

24 hrs

Operating Temperature with Battery Backup

-4° F to 131° F (-20° C to 55° C)

Other Certifications

cRUus;CE

WarrantyPeriod

1-Year limited

UPC

078275155688

Timing Interval

15 min

Switch Type

SPDT

Shortest Switching Time

ON/OFF 15 minutes

Power Consumption Max Va

1

Photo-2

Click Here

Photo-1

Click Here

Input Voltage Ranges

120 VAC, 50/60 Hz

GTIN

00078275155688

Datasheet

Click Here

CSA Certification

cCSAus

Clock Drive Type

Quartz

Brand

Domestic Intermatic

Battery Type

NiMh

Battery Service Type

Rechargeable

Backup Type

72-hour Carry-over;Battery;Self-recharging

Backup Protection Time

72 Hours

Feature1

21 A SPDT Switch

Feature10

Standalone or with indoor/outdoor enclosure, sold separately

Feature2

Captive trippers with 15-minute intervals on 24-hour models and 2-hour intervals on 7-day models

Feature9

Clear plastic cover (DC-FME-A), sold separately

Feature8

Compact size

Feature7

Available with or without override

Feature6

True clock face, easy-to-set

Feature5

Synchronous drive or quartz drive Q models with self-recharging battery backup

Feature4

Noise immune – ideal for robust applications

Feature3

72-hour carry-over battery backup on Q models

Application Compatibilities

Incandescent;Fluorescent;CFL;LED

LifeCycle

Production
