Intermatic

ETCB28253PCR

Intermatic | ET | Programmable Timers
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_ETCB28253PCR

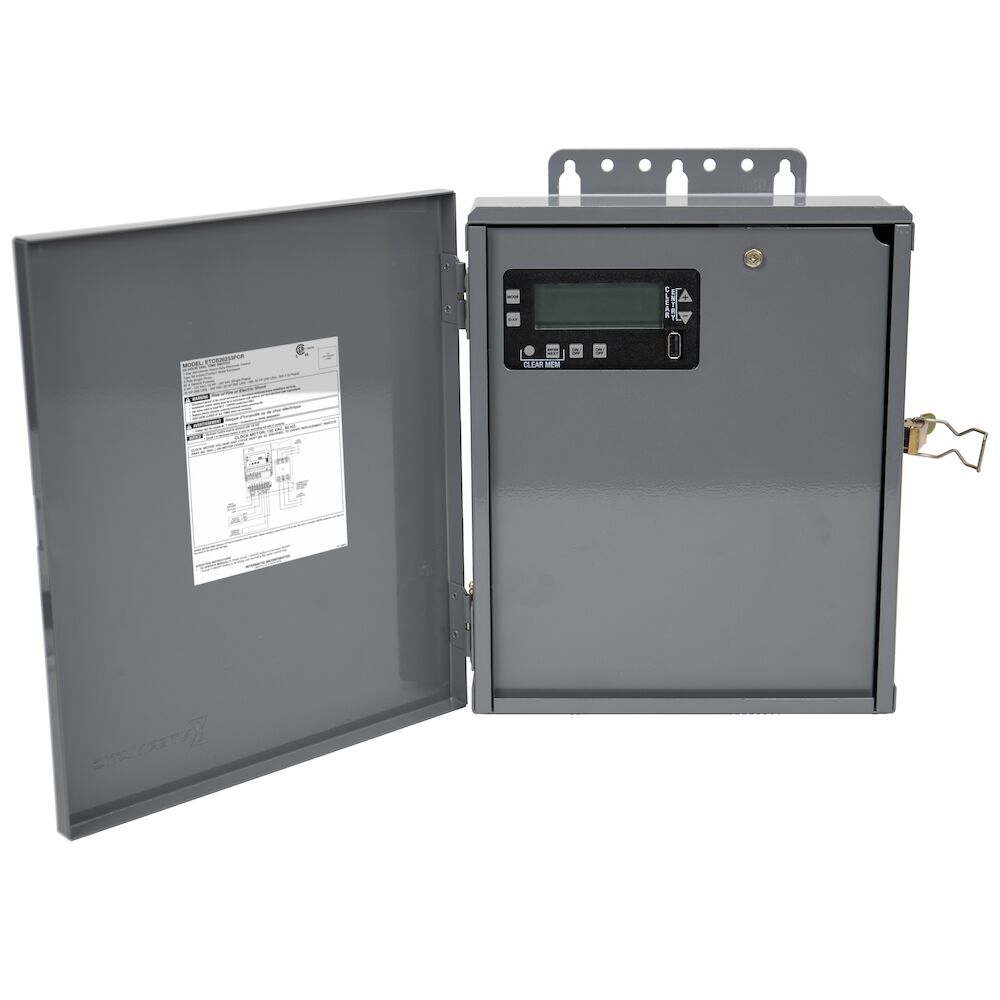

The ETCB28253PCR Electronic All-Purpose Contractor Box provides an easy-to-install solution for a variety of application needs. The Contractor Box comes with a pre-installed Astronomic timer with 7-day, holiday/exception period scheduling, USB for Schedule transfer and Backup, a 60 A contactor, as well as inputs for overrides and surge protective devices.

$502.55

Min: 1  Mult: 1

Product Attributes

Wire Size Min

#14 AWG

Photo-2

Click Here

Photo-1

Click Here

Operation Features

Astronomic;Holiday;Override

Operating Temperature Min F

-40

Operating Temperature Max F

104

On Off Operations

96

Motor Load Ratings NO Ranges

5 HP, 120 VAC;10 HP, 240 VAC, (Single-Phase);25 HP (360 LRA), 240 VAC;30 HP (300 LRA), 480 VAC

Minimum Pulse Time

2 sec

Photo-3

Click Here

Photo-4

Click Here

Photo-5

Click Here

Wire Size Max

#4 AWG (Load Side)

WarrantyPeriod

2-Year limited

UPC

078275152472

UL Certification

cULus

Switch Type

3xSPST

Resistive NO Load Ratings

60 A

Resistive Load Ratings NO Ranges

60 A

Photo-6

Click Here

Minimum On Off Time

1 min

MFG-Link

Click Here

Maximum On Off Time

Indefinite

Feature3

Up to 50 Holiday/Exception Period set points

Feature2

Up to 96 Scheduling set points

Feature10

Requires 120 VAC 60 Hz for powering the control

Feature1

7-Day/365-Day Astronomic Scheduling

Enclosure Type

Indoor/outdoor type 3 metal

Datasheet

Click Here

Brand

Intermatic

Backup Type

Supercapacitor

Feature4

USB port for backing up or transferring schedules

Feature5

Built-in 60 A 3-Pole contactor for more robust loads

Feature6

Input for optional "Timed" photo control override

Maximum On Off Operations

96

Input Voltage Ranges

120 VAC, 60 Hz

GTIN

00078275152472

General Purpose NO Load Ratings

60 A

Feature9

100-hour supercapacitor eliminates the need for battery replacement

Feature8

Terminals for adding Surge Protection

Feature7

Input for other types of switches/sensors

Backup Protection Time

100 Hour

LifeCycle

Production
