Intermatic

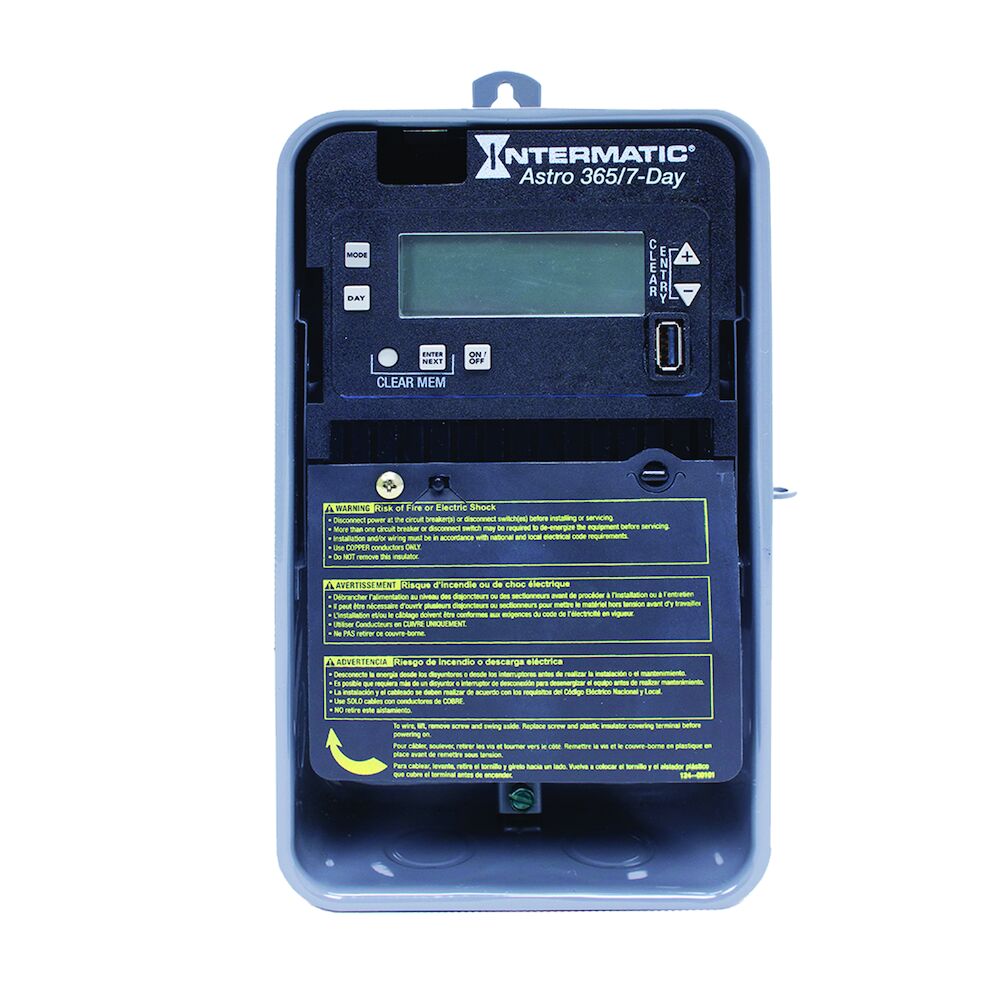

ET2805CR

Intermatic | ET | Programmable Timers
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_ET2805CR
The ET2000 Series offers an easy-to-use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any applicati

$293.01

Min: 1  Mult: 1

Product Attributes

Wiring Option

Terminals

Operation Mode

7 day

Operation Features

Astronomic;Holiday

Operating Temperature Min F

-40

Operating Temperature Max F

104

On Off Operations

96

Number Of Circuits

1

Motor Load Ratings NO Ranges

1 HP, 120 VAC; 2 HP, 240 VAC

Minimum On Off Time

1 min

MFG-Link

Click Here

Other Certifications

LED;Title 20

Photo-1

Click Here

Power Consumption Max W

3 W

Wire Size Min

#14 AWG

Wire Size Max

#8 AWG

WarrantyPeriod

2-Year limited

Voltage Selection Type

Auto Voltage

UPC

078275148215

UL Certification

cULus

Switch Type

SPST

Setpoint Program Count

96

Resistive Load Ratings NO Ranges

20 A, 28 VDC; 30 A, 120-240 VAC

Maximum On Off Time

Indefinite

Maximum On Off Operations

96

Feature10

USB port makes transferring and saving of schedules easy

Feature1

100-hour supercapacitor eliminates the need for batteries

Enclosure Type

Outdoor type 3R metal

Daylight Saving Adjustment

Automatic

Datasheet

Click Here

Brand

Intermatic

Backup Type

Supercapacitor

Backup Restoration Time

30 Minutes

Backup Protection Time

100 Hour

Feature2

Up to 96 set points or events

Feature3

Up to 50 holiday blocks with schedule capabilities

Feature4

Automatic input voltage selection from 120 to 277 VAC, 60 Hz

Magnetic Ballast Load Ratings NO Ranges

20 A, 120-277 VAC

Input Voltage Ranges

120-277 VAC, 60 Hz

GTIN

00078275148215

Feature9

LED compatible

Feature8

Non-volatile EEPROM memory protects programming indefinitely

Feature7

Relays incorporate zero-crossing technology to extend the life of the control

Feature6

Configurable outputs allow the control of various voltages and applications

Feature5

Additional mode of operation turns the ON/OFF buttons into 2-hour overrides

Application Compatibilities

LED

LifeCycle

Production

Not available at this time.
