Intermatic

CT2000

Intermatic | CT | Programmable Timers
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_CT2000

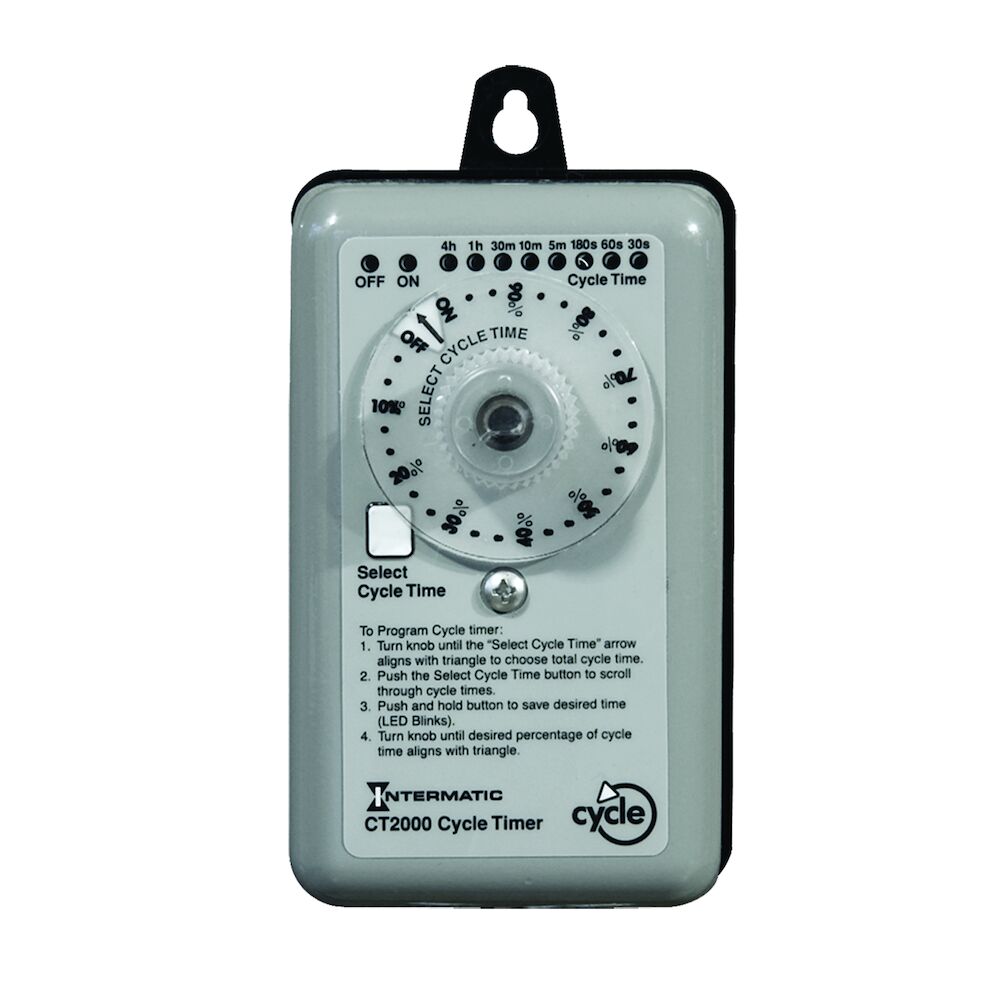

The CT2000 Percentage Cycle Time Switch is a field adjustable timer, offering true flexibility for repetitive cycle times via an upfront control button. The timer provides repetitive cycling for short-cycle applications. The timer enclosure includes two slotted mounting holes on 5" centers and a ½" knockout for conduit connection.

$149.86

Min: 1  Mult: 1

Product Attributes

Ballast Fluorescent

10 A, 277 VAC, 60 Hz

Feature7

Type 3R indoor/outdoor aluminum enclosure

GTIN

00078275124363

Operating Temperature Max F

140

Operating Temperature Min F

-14

Pilot Duty Load Ratings

470 VA, 240 VAC, 60 Hz

Switch Type

SPST

UPC

078275124363

WarrantyPeriod

1-Year limited

Feature6

No DIP switches to program cycle time

Feature5

User settings stored in non-volatile memory

Brand

Intermatic

CSA Certification

cCSAus

DataSheet

Click Here

Enclosure Type

Outdoor type 3R metal

Feature1

Provides 8 field-selectable cycle durations of 30 seconds, 1, 3, 5, 10, 30 minutes and 1 or 4 hours

Feature2

Front cover button enables true flexibility for repetitive cycle times

Feature3

Temporary and permanent manual overrides

Feature4

30 separate positions enable precise percentage ON time selection

Wiring Option

Wire leads

MFG-Link

Click Here

Photo-1

Click Here

LifeCycle

Production

Not available at this time.
