Intermatic

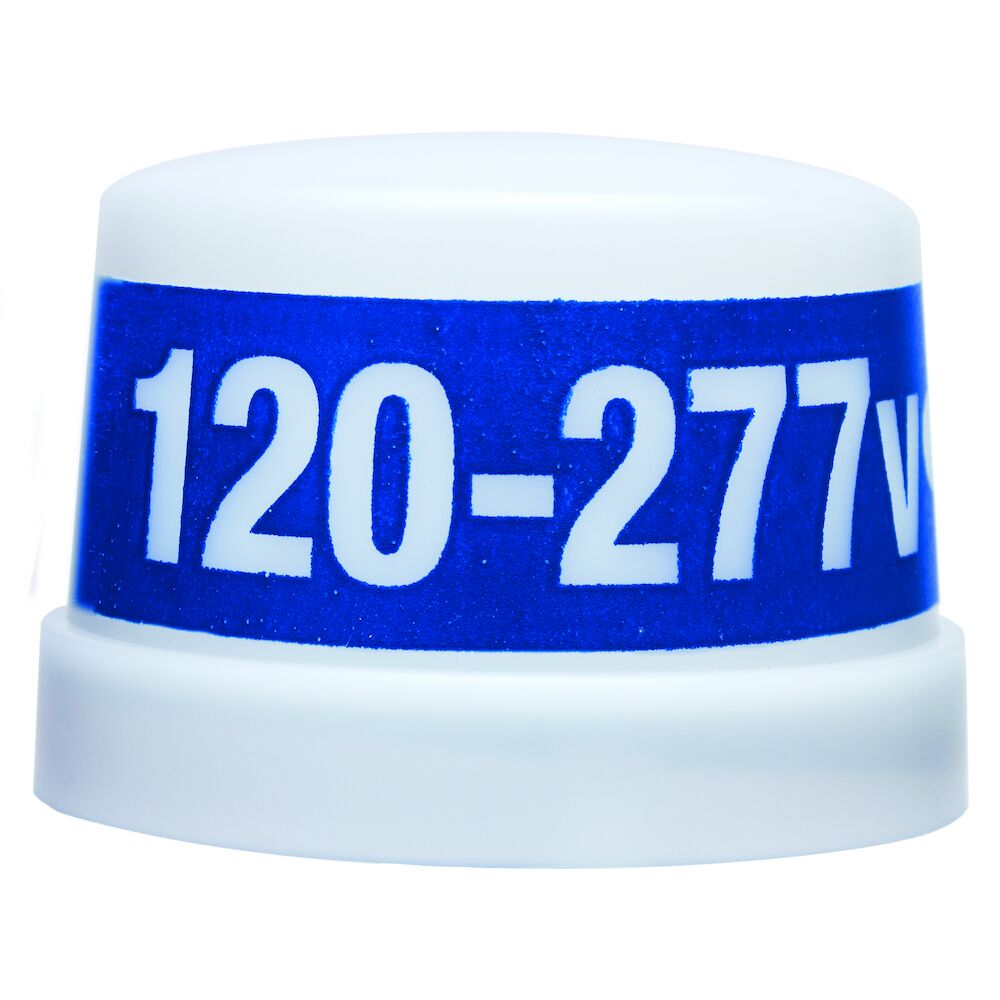

LED4536SC

Intermatic | EK | Photocontrols
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
Photocontrol specifically designed for 20-year service to match the life expectancy of long-life LED and new induction fixtures.

$25.24

Min: 1  Mult: 1

Product Attributes

Activation Off

2.25 fc

Photocontrol Photocell Type

Silicon Diode

Photo-1

Click Here

Other Certifications

Title 20;Ansi C136.10

Operating Voltage Ranges

102-305 VAC

Operating Temperature Min F

-40

Operating Temperature Max F

158

MFG-Link

Click Here

Magnetic Ballast Load Ratings Ranges

1800 VA

Photocontrol Sensor Location

Side

Photocontrol Style

Locking type

Usage Environments

Outdoor

UPC

078275143647

UL Certification

cULus

Surge Protection Technology

510 J MOV

Sensor Time Delay

Instant ON; 2 sec to 5 sec OFF

Product Diameter In

3.375

Photocontrol Type

Electronic

Photocontrol Switch Type

Relay

Magnetic Ballast Load Ratings

1800 VA

WarrantyPeriod

12-Year limited

Feature1

Non-drift silicon light sensor with IR filter

Fail Mode

ON

Expected Lifetime Years

20

Expected Lifetime Operations

15000

Cover Color

White with Blue Band

Brand

Intermatic

Application Compatibilities

LED;Incandescent;HID

Activation On

1.5 fc

Feature2

DC relay with zero-crossing circuitry for extended life

Feature3

All components meet 20-year life expectancy

Input Voltage Ranges

120-277 VAC, 50/60 Hz (Nominal Voltage)

Housing Material

Polypropylene

GTIN

00078275143647

Feature8

High precision, microprocessor-controlled zero-cross switching, individually calibrated to extend the life of 20 A relay independent of load being switched

Feature7

510 J MOV surge protection

Feature6

Ideal for single or multi-fixture HID and LED installations (up to 2,220 W @ 277 VAC)

Feature5

Exceeds 15,000 ON/OFF switching cycles

Feature4

Conformal coated PCB

LifeCycle

Production

Not available at this time.
